EN

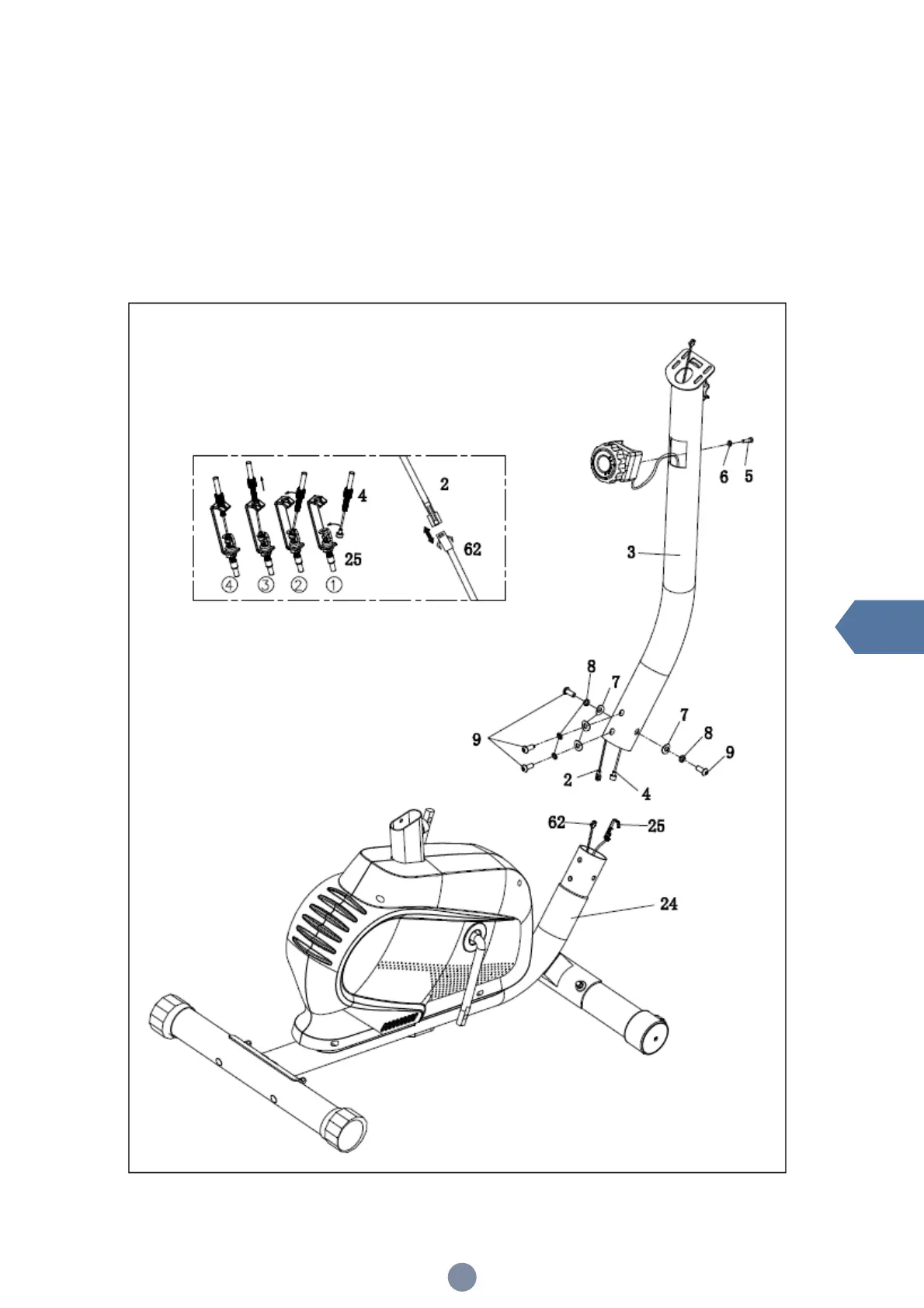

Step 2
1. Make the wire of Tension Controller through Upright Tube, then lock it by using Pan
Screw (5) and Washer (6)
2. Connect well mid wire (2) and sensor (62), Secure tension control (4) with down wire
(25).
3. Secure upright (3) to main frame (24) with bolt (9), washer (8), curved washer (7).
