Merax MS199769 - Page 34

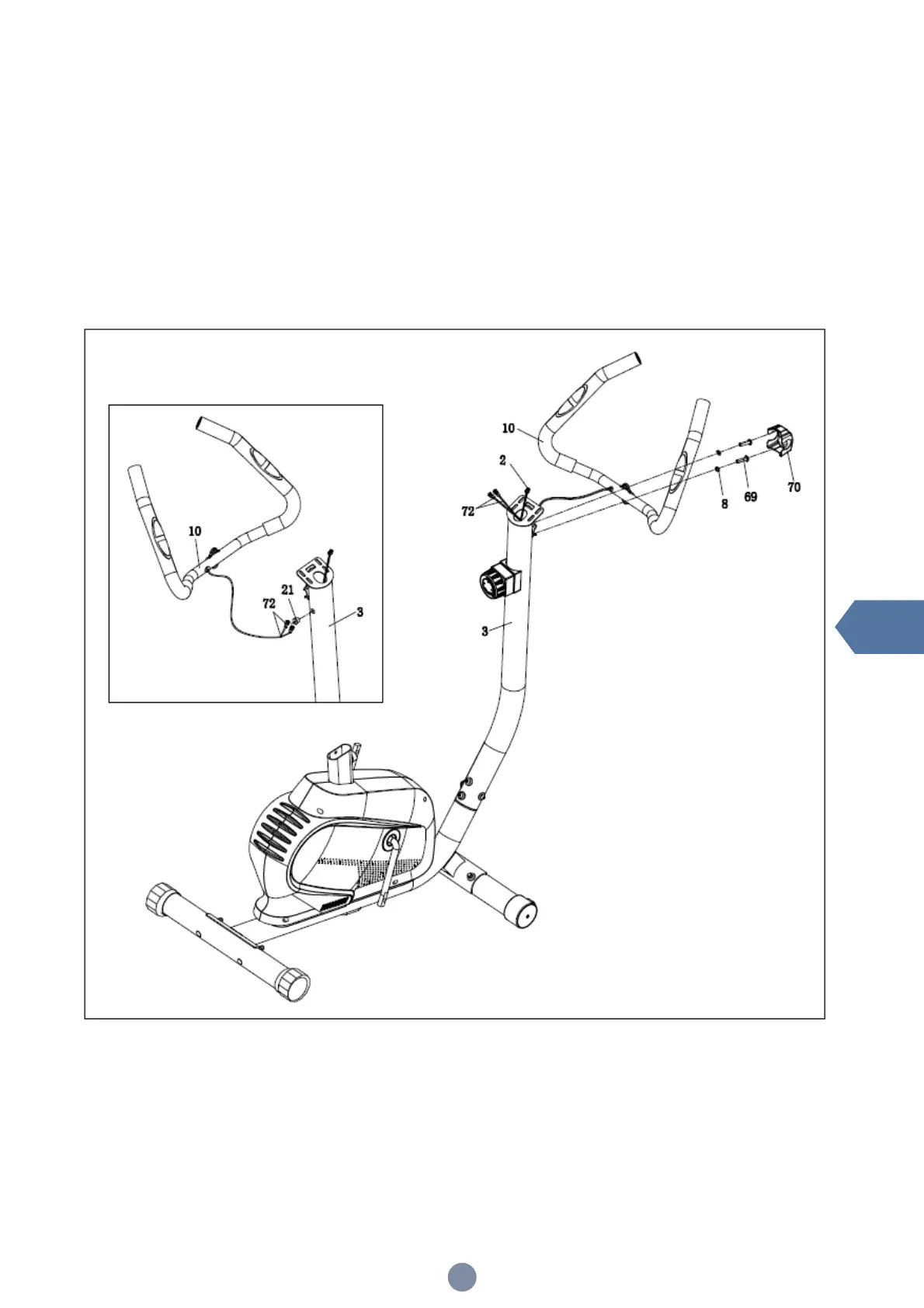

Step 3
First, make Pulse Wire (72) through Upright Tube (3), then drag it from display support board.
Second, lock Mid Handlebar (10) into Upright Tube (3) by using Spring Washer (8) and
Hexagon Bolt (69). Finally, insert Handlebar Cover (70) and Hole End Cap (21)
