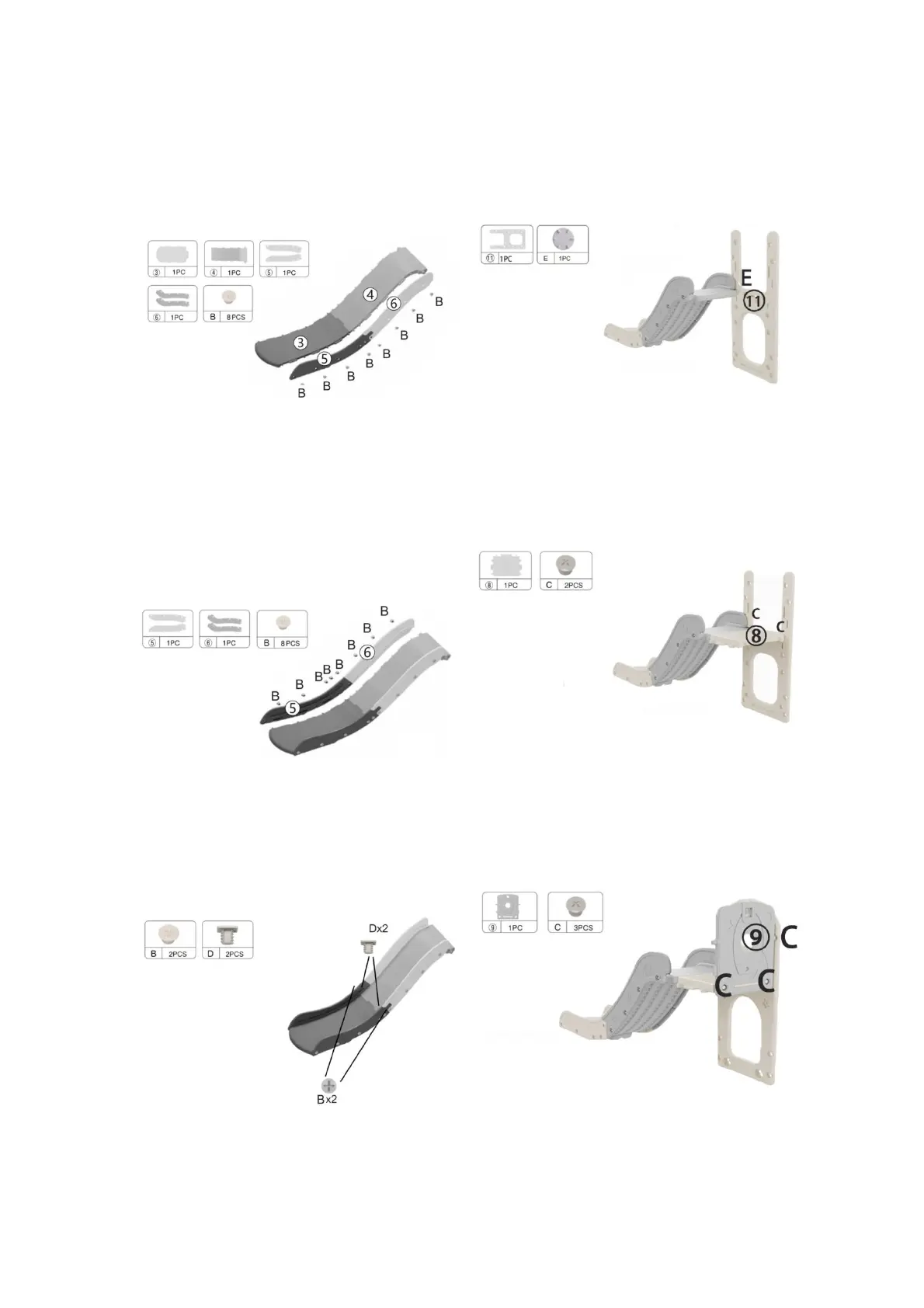

Step1
Connect Part ③, ④,⑤, ⑥ together as
shown, and secure with 8pcs Screw B.
Step2
Connect the Part ⑤ to Part ⑥ . Then
attach the assembled parts to the STEP 1
assembled parts, secure with 8 Screw B.
Step3
Secure with 2 Screw D to the handrail of
the slide from inside. Then Secure with 2
Screw B from outside.
Step4
Connect the Part 11 to the STEP 3
assembled parts secure with Screw E.
Step5
Connect the Part ⑧ to the Part 11, secure
with 2 Screw C.
Step6
Connect the Part ⑨ to the Part ⑦ & ⑧
secure with 3 Screw C.
To Next Page
