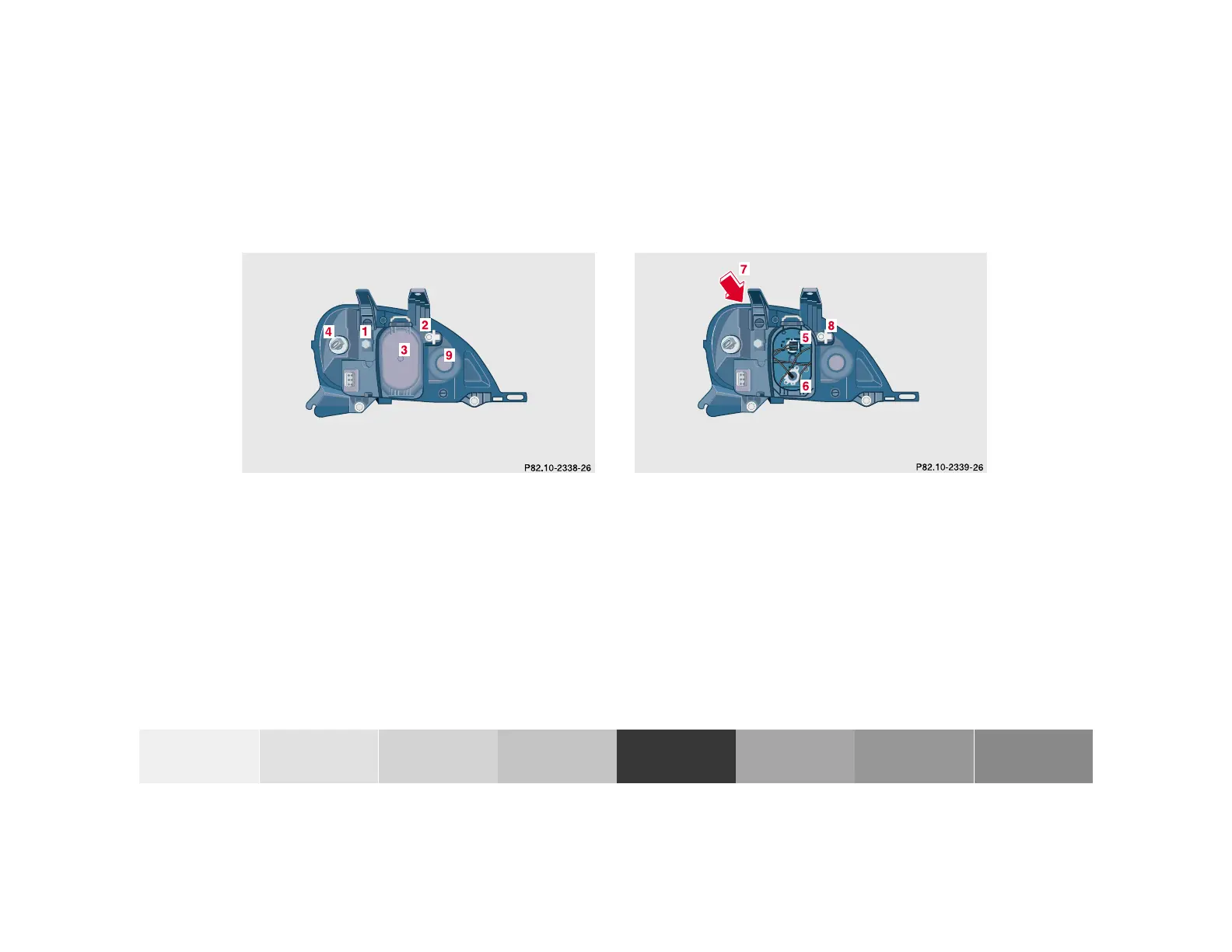

Headlamp assembly (Halogen)
1 Headlamp vertical adjustment screw
2 Headlamp horizontal adjustment screw
3 Headlamp cover with locking tab
4 Bulb socket for turn signal, parking, standing, and
side marker lamp
5 Electrical connector for low beam headlamp bulb
6 Electrical connector for high beam headlamp bulb
7 Level for headlamp vertical adjustment
8 Scale for headlamp horizontal adjustment
9 Auxiliary fog lamp (if so equipped)
