To remove a fuse use the fuse puller tool provided on the fuse panel
cover.
The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating

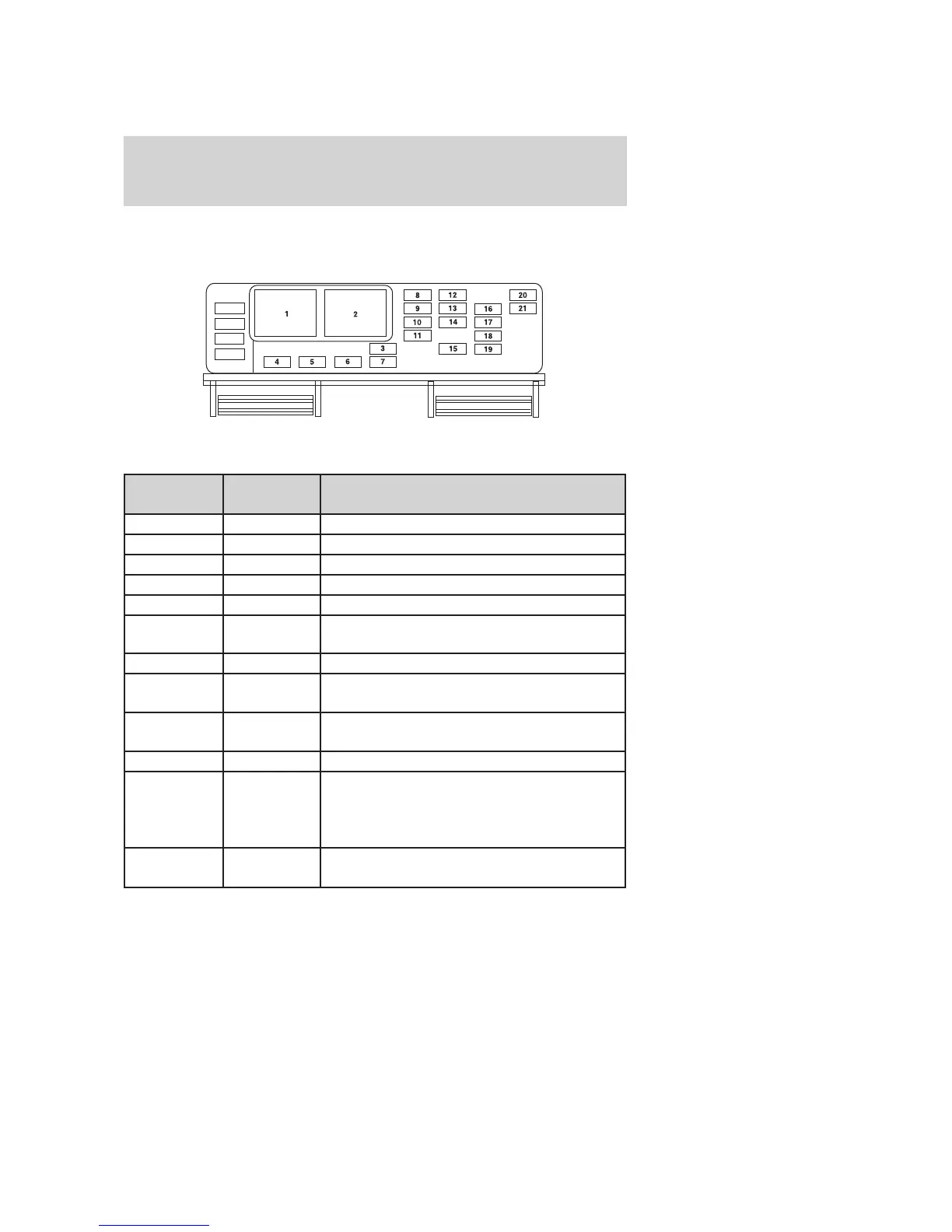

Passenger Compartment Fuse Panel
Description
1 Relay Accessory delay relay 1
2 Relay Accessory delay relay 2
3 10A Front wiper motor Run feed
4 5A B+ feed to outside mirrors
5 20A Vent window power feed/Radio feed
6 5A Driver door switch illumination/Passenger
door switch illumination
7 10A Rear wiper Run feed
8 10A Cluster/Electronic Automatic Temperature
Control (EATC) B+ feed, DVD
9 10A Passive Anti-theft System (PATS) LED
feed
10 5A Auxiliary radio
11 5A Auxiliary climate control system/Power
Liftgate Module/Left and right power
sliding door module/Data Link Connector
(DLC)/Clock B+ feeds
12 5A Brake-Shift Interlock (BSI) Run feed,
Climate control system Run feed
