The cover for the power distribution box can be removed by releasing
the tab on the back left corner of the cover, then pulling the cover up.

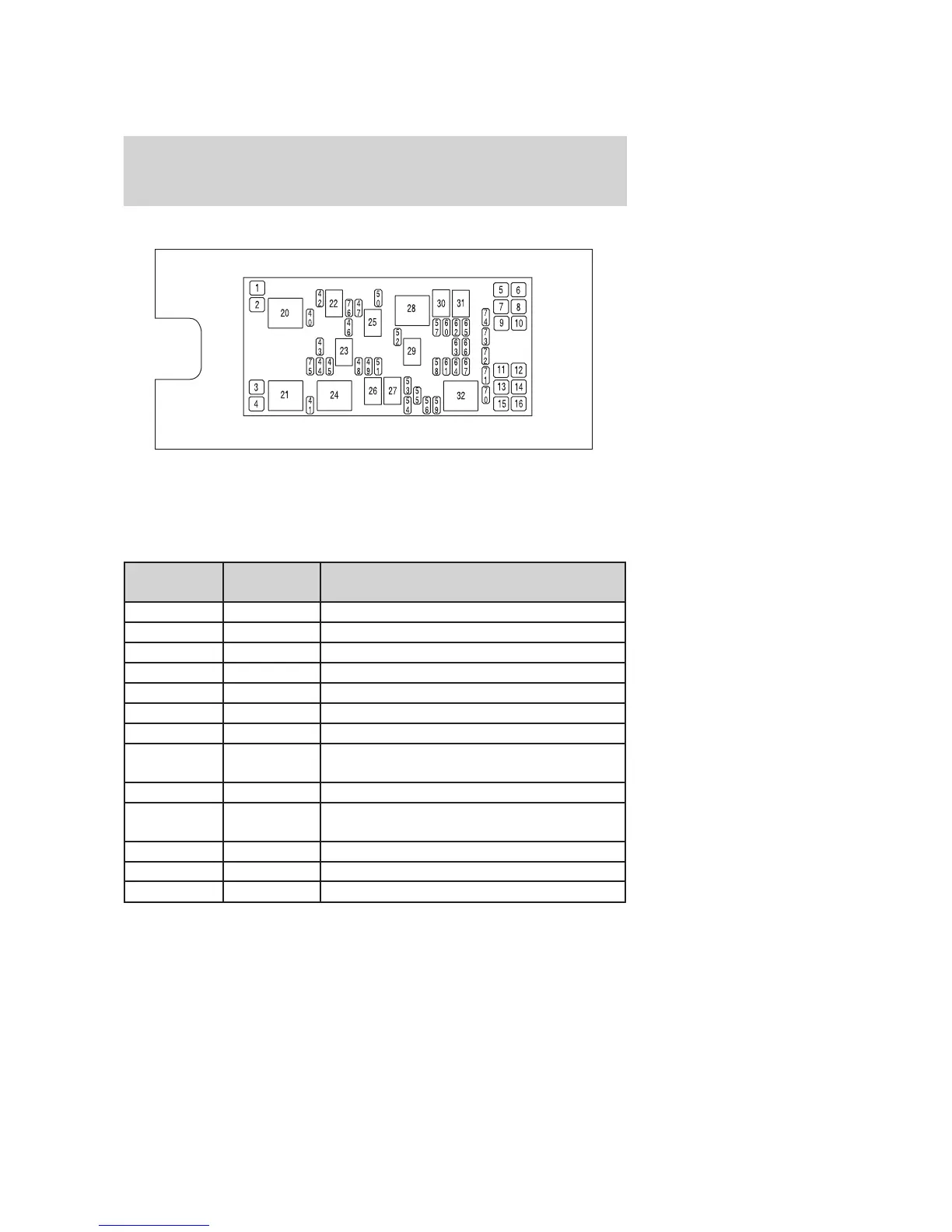

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box Description
1 — Not used
2 30A** Right cooling fan
3 30A** Left cooling fan
4 30A** Starter solenoid
5 30A** Right-hand power sliding door
6 30A** SJB accessory #2 (driver power window)
7 30A** Auxiliary blower motor
8 40A** Anti-lock Brake System (ABS) #2 (coil
power)
9 30A** Power liftgate
10 30A** SJB accessory #1 (passenger window,
radio, vent windows)
11 30A** Left power seat/heated seat
12 40A** ABS #1 (pump motor)
13 40A** Rear defroster
