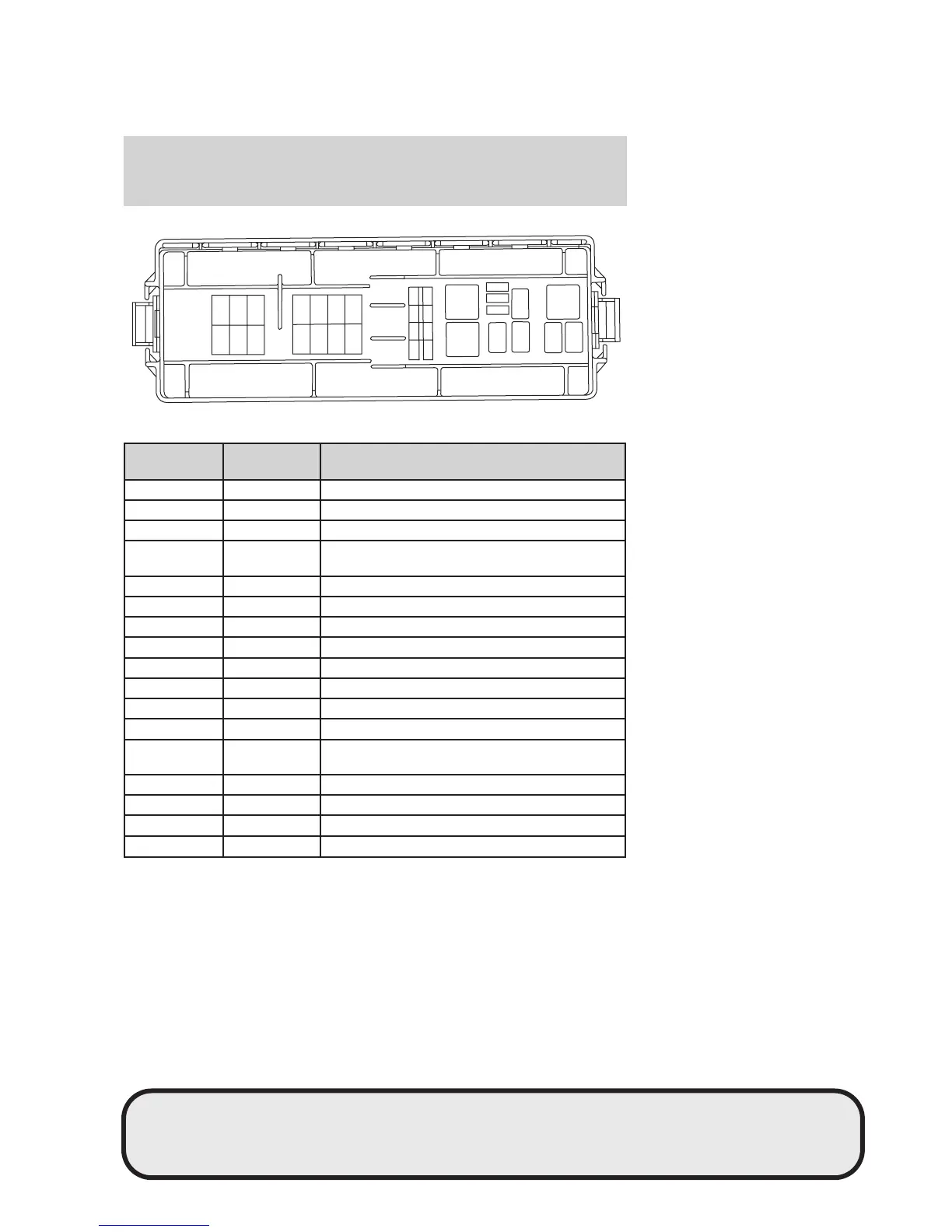

The high-current fuses are coded as follows.
Fuse/relay
location
Fuse amp
rating
Power distribution box description
1 60A** Fuse junction panel
2 30A** Powertrain Control Module (PCM)
3 60A** Fuse junction panel
4 10A circuit
breaker
Low speed cooling fan
5 40A** Cooling fan (main)
6 — Not used
7 40A** Starter relay, Ignition switch
8 — Not used
9 20A** Cooling fan (passenger side)
10 20A** Cooling fan (driver side)
11 50A** Rear defrost (sedan only)
12 — Not used
13 40A** Anti-lock Brake System (ABS) module pump
feed
14 — Not used
15 20A* ABS module valve solenoid
16 20A* Fuel pump relay
17 20A* CD
1
2
3
4
56
7
8
910
11 12 13
14
15
16 17
18
19
20
21
22
23
24
25 29
30
26
27
28
31
32
33
REVIEW COPY
2005 Sable (sab), Owners Guide (post-2002-fmt) (own2002),
Market: USA_English (fus)
