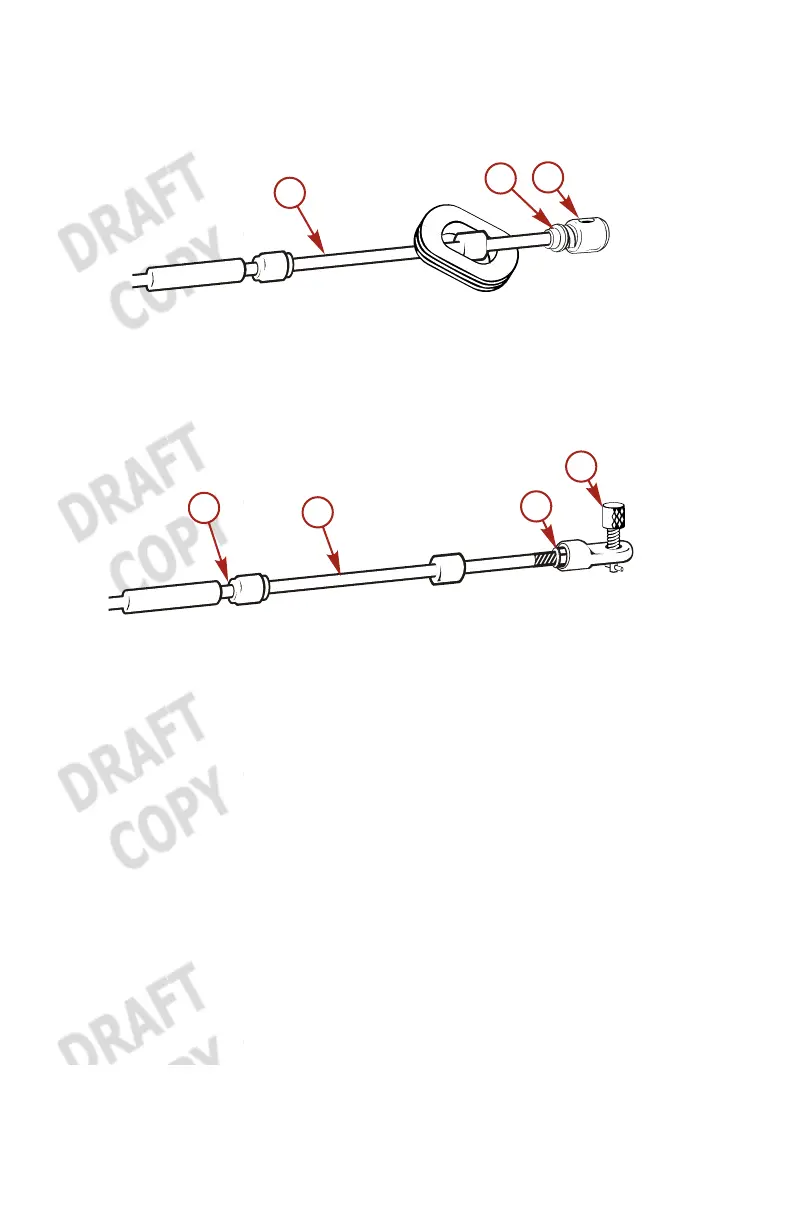

12.Throttle side: Slide a grommet onto an end of the cable, put
a holder cap on it, and lock it with a nut, as shown.
a - Throttle cable
b - Nut
c - Holder cap
13.Shift side: Attach the sleeve guide B to the shift remote
control cable, and lock it with a nut.
a - Neck of remote control
cable
b - Shift remote control
cable
c - Nut
d - Sleeve guide B
14.
Connect the remote control cable to the engine.
15.Throttle side: Insert the throttle remote control cable into a
hole of the advancer arm at the lower motor cover, attach the
ball joint to the holder cap at the tip of the remote control cable,
and fasten the remote control cable with a clip. Attach a
grommet to the lower motor cover.
NOTE: Place the control lever in Neutral (N), and the idling lever
in the Fully Closed position.
16.Shift side: Insert the lock pin at the sleeve guide B into the
shift lever attaching hole and turn it 90° to lock it, then fasten
the remote control cable with a clip.
To Next Page
