WARNING
Improper fasteners or improper installation procedures can result in
loosening or disengagement of the steering link rod. This can cause a
sudden, unexpected loss of boat control, resulting in serious injury or death
due to occupants being thrown within or out of the boat. Always use required
components and follow instructions and torque procedures.

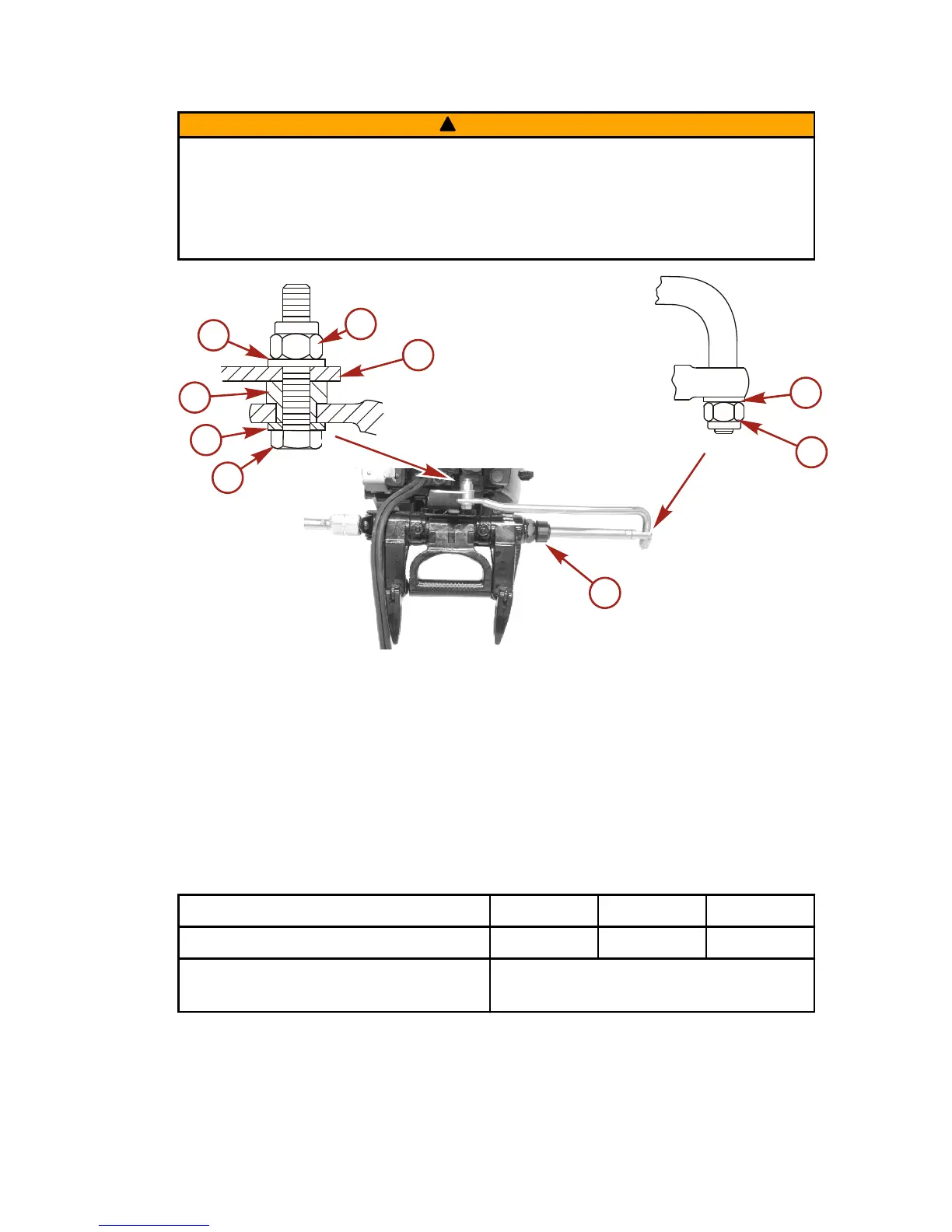

a - Bolt (12‑71970)
b - Flat washer
c - Spacer
d - Nylon insert locknut (11‑16147‑‑3)
e - Steering bracket ‑ Install steering link rod into side hole
f - Nylon insert locknut (11‑16147‑‑3) (tighten until seats then back off 1/4
turn)
g - Seal
Description Nm lb‑in. lb‑ft
Nylon insert locknut "d" 27 – 20
Nylon insert locknut "f"
Tighten until seats, then back off 1/4
turn
Assemble steering link rod to steering cable with flat washer and nylon insert
locknut. Tighten locknut until it seats, then back nut off 1/4 turn.
Assemble steering link rod to engine with bolt, locknut and spacer and flat
washers. Tighten locknut to the specified torque.
