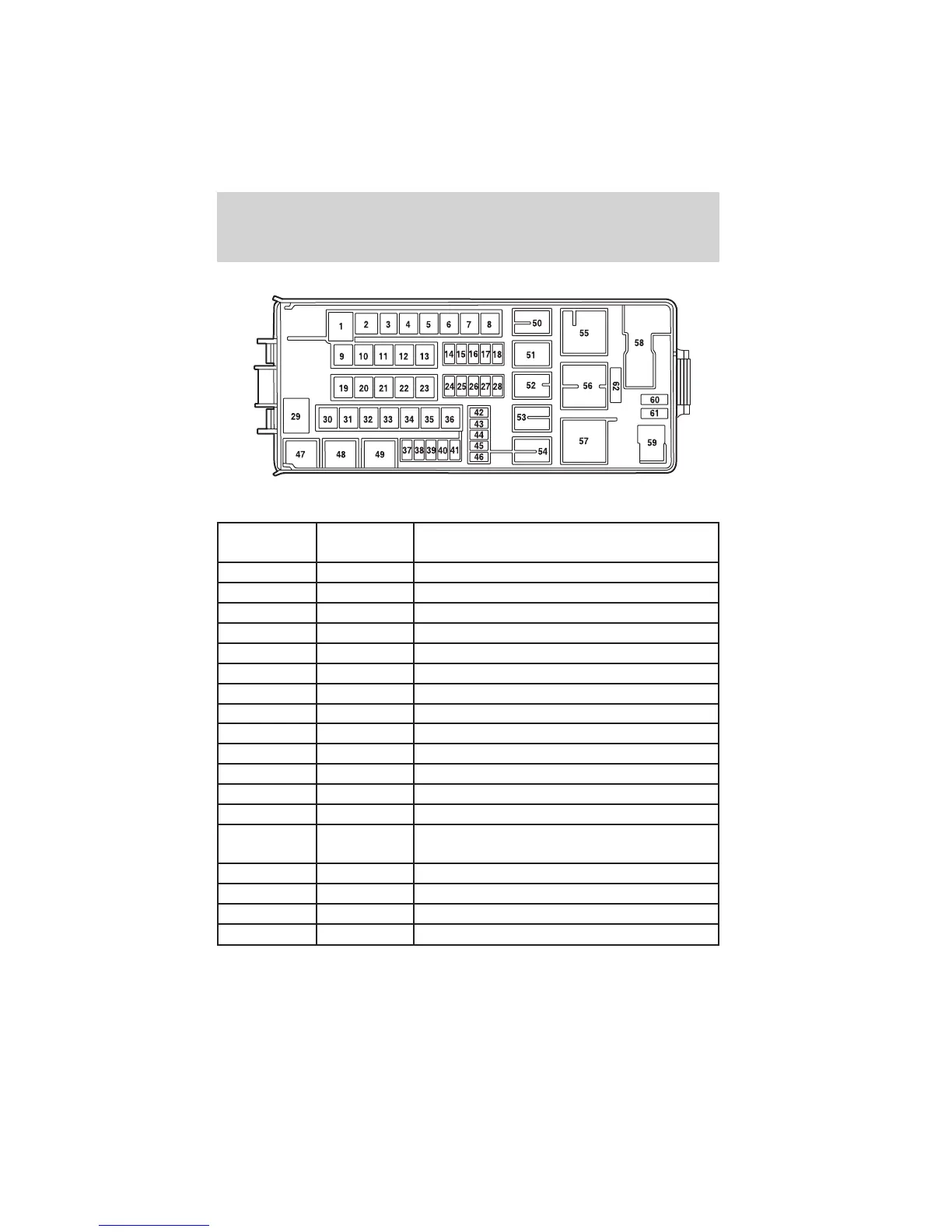

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box Description
1 60A** PJB
2 30A** BSM
3 20A** GCC pusher fan (export only)
4 30A** Rear defrost
5 40A** Anti-lock Brake System (ABS) pump
6 60A** Delayed accessory circuit breaker
7 20A** Power point #2
8 — Not used
9 20A** Power point #1
10 30A** ABS module (valves)
11 40A** PTEC
12 50A** Ignition relay/Starter relay
13 40A** Trailer tow battery, Trailer tow turn signals
14 10A* Daytime Running Lamps (DRL)
(Canada)/Foglamps (export only)
15 15A* Memory (KAPWR)
16 15A* Headlamp switch
17 20A* 4x4 (v-batt 2)
18 20A* 4x4 (v-batt 1)
