OIL INJECTION
Page 3C-4 90-855347R1 JANUARY 1999

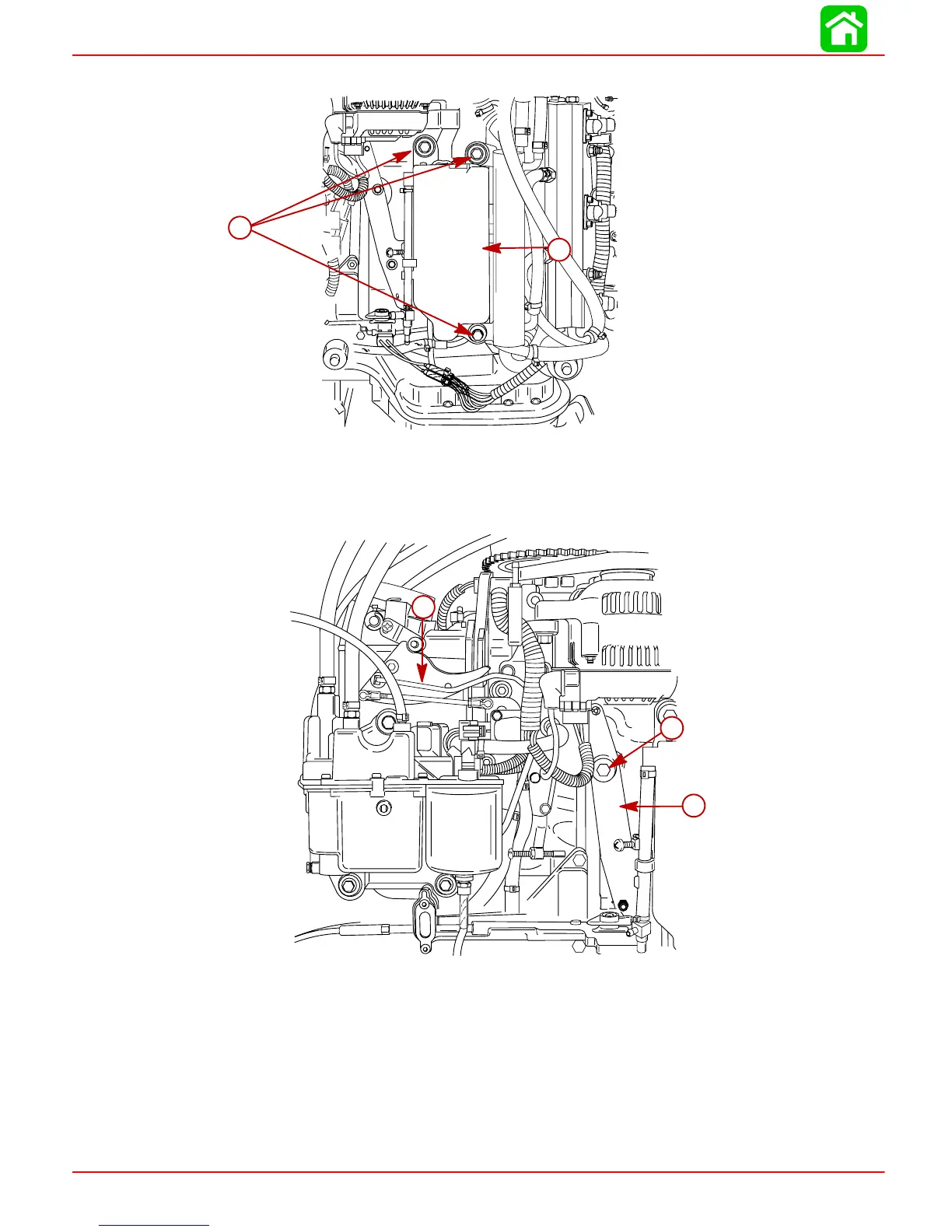

4. Remove 3 bolts securing oil reservoir and lay reservoir off to one side.
a
b
a-Bolts
b-Oil Reservoir
5. Remove throttle link arm and bolt securing throttle arm. Remove throttle arm.
–
a
b
c
a-Throttle Link Arm
b-Bolt
c-Throttle Arm
