POWERHEAD
90-855347R1 JANUARY 1999 Page 4A-57

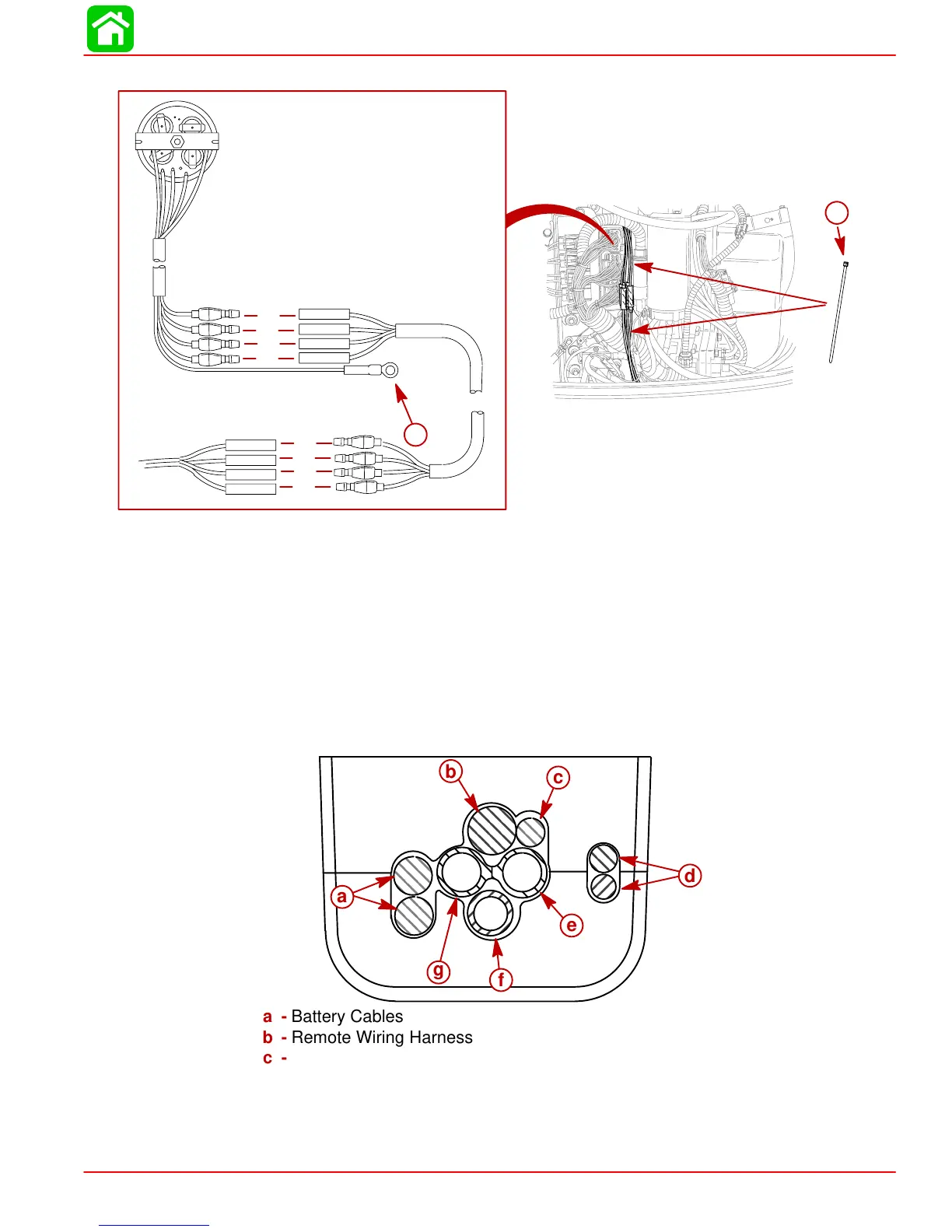

15. Reconnect warning gauge harness.
1
2
3
4
5
6
a
c
b
d
a
c
b
d
f
e
a-TAN/BLACK
b-TAN/WHITE
c-PINK/LT. BLUE to PINK/LT. BLUE
d-ORANGE
e-Sta-Straps
f-Connect PURPLE to 12 Volt Source or Adjacent Gauge
IMPORTANT: Sufficient slack must exist in engine wiring harness, battery cables,
fuel hose, and oil hoses routed between clamp and engine attachment point, to re-
lieve stress and prevent hoses from being kinked or pinched.
1. Place the clamp over the wiring, hoses, and control cables as shown.
a
b
c
d
e
f
g
a-Battery Cables
b-Remote Wiring Harness
c-Warning Gauge Wiring Harness
d-Control Cables
e-Oil Hose with Blue Stripe
f-Fuel Hose
g-Oil Hose
