POWER TRIM
Page 5B-24 90-855347R1 JANUARY 1999

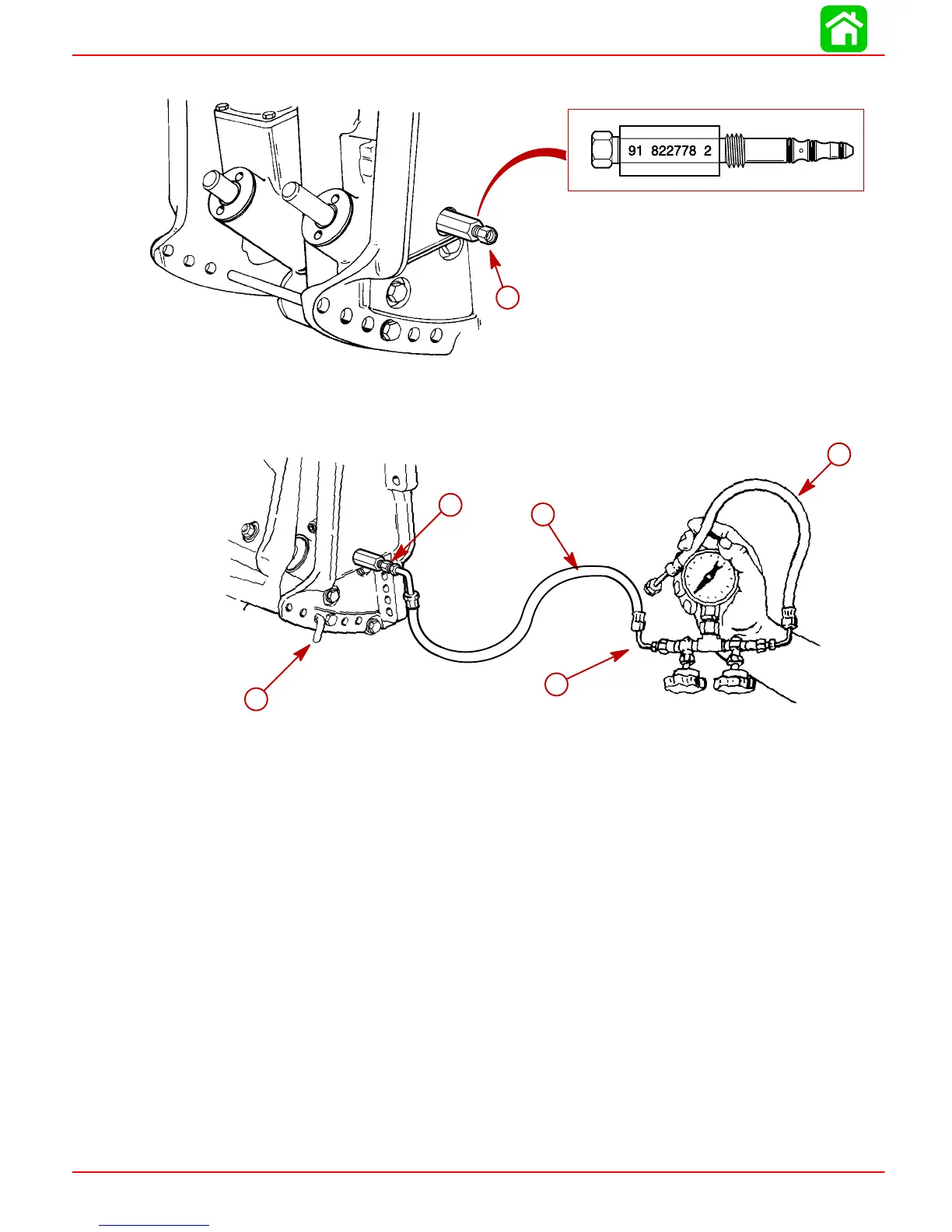

4. Install test adaptor 91-822778A2 into manual release valve hole.
a
54458
a-Test Adaptor (91-822778A2)
5. Thread hose from Test Gauge Kit (91-52915A6) into brass fitting on adaptor.
a
b
c
d
e
54459
a-Brass Fitting
b-Test Gauge Assembly
c-Tilt Pin (Position in Hole Shown)
d-Hose
e-Hose (Not Used)
6. Reinstall fill plug.
7. Disengage tilt lock lever.
