VESSELVIEW MOBILE MODULE
Products of Mercury Marine
© MERCURY MARINE. All rights reserved. Reproduction in whole or in part without permission is prohibited.
Alpha, Axius, Bravo One, Bravo Two, Bravo Three, Circle M with Waves Logo, GO BOLDLY, K-planes, Mariner,
MerCathode, MerCruiser, Mercury, Mercury with Waves Logo, Mercury Marine, Mercury Precision Parts, Mercury
Propellers, Mercury Racing, MotorGuide, OptiMax, Pro XS, Quicksilver, SeaCore, Skyhook, SmartCraft, Sport-Jet,
Verado, VesselView, Zero Effort, Zeus, #1 On the Water and We're Driven to Win are registered trademarks of
Brunswick Corporation. Mercury Product Protection is a registered service mark of Brunswick Corporation. All
other marks are the property of their respective owners.
W6250 Pioneer Road
Fond du Lac, WI 54936-1939
90-8M0168272 eng DECEMBER 2019 © 2019 Mercury Marine Page 5 / 5
Electrical Specifications
Electrical rating 9–16 V
Maximum fuse size
Mechanical ‑ 15 A
DTS ‑ 5 A
Maximum rate input current 200 mA
IP rating IP4X
Environmental conditions
Altitude <3000 m
Operating temperature ‑20–85 ○C (‑4–185 ○F)
Overvoltage Category 1
For use in pollution degree 4 (outdoor use)

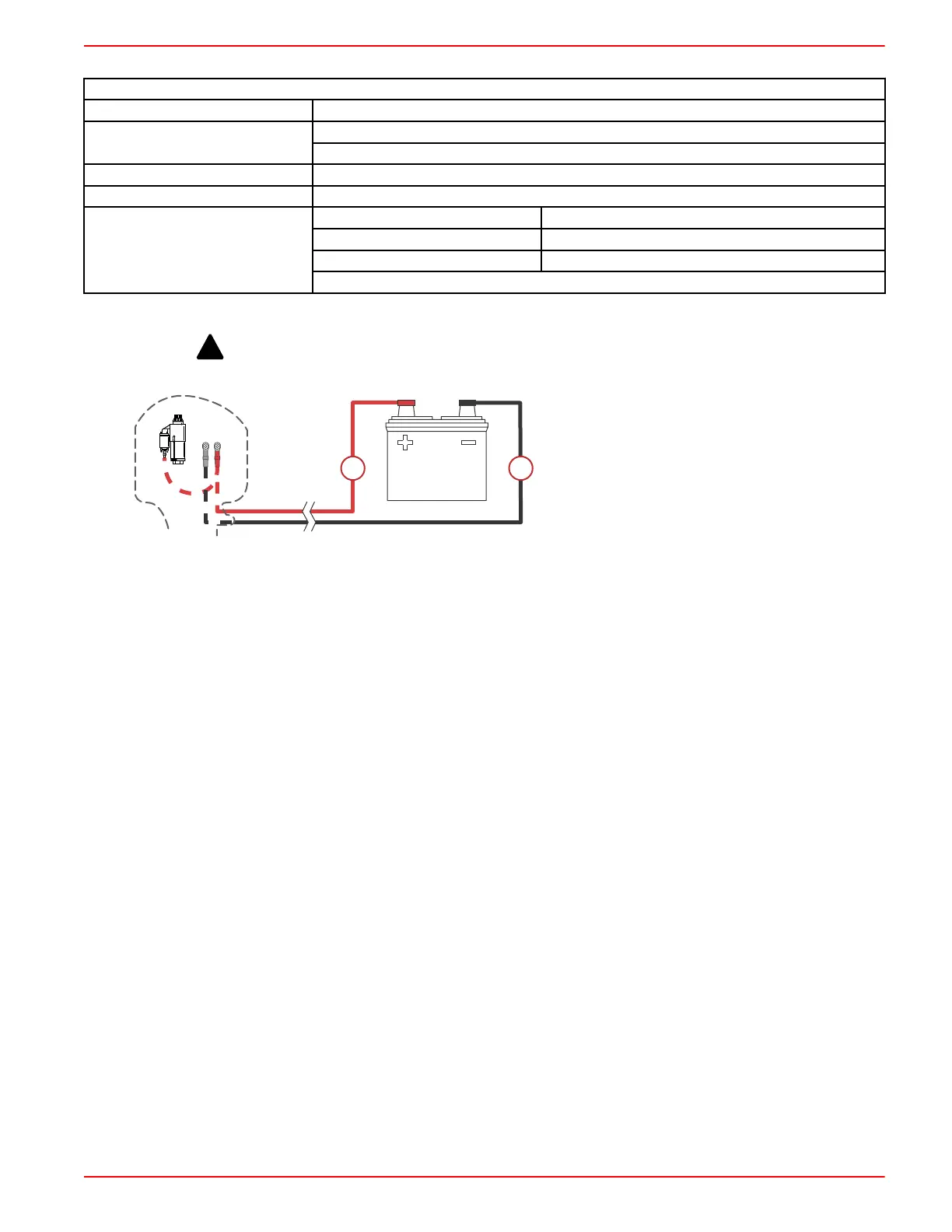

Battery Connections
IMPORTANT:
!
Always refer to the Installation Manual included with each engine for battery specifications and battery
installation procedures.
a - Positive cranking circuit
b - Negative cranking circuit
NOTE:
After completing installation, place these instructions with the product for the owner's future use.
