Meridian 556 - Connecting Loudspeakers

Setting up the stereo power amplifier
9

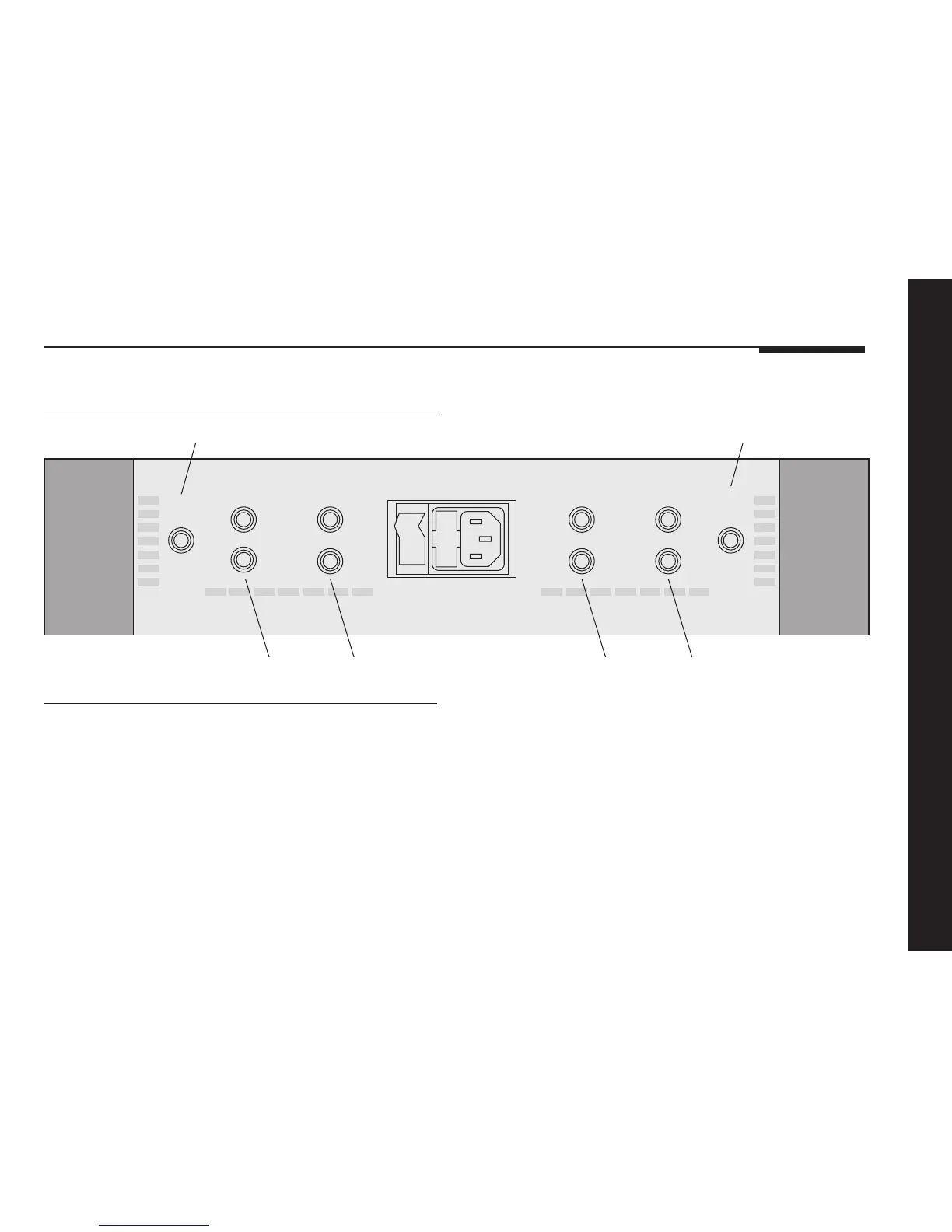

Back panel
Connecting the stereo power amplifier
Outputs
The output terminals should be connected to loudspeakers of
4Ω to 15Ω, using either banana plug or bare wire connections.
Each channel of the 556 Stereo Power Amplifier provides twin
outputs for bi-wiring. On speakers that provide separate
connections to the bass/mid and tweeter units this allows the
units to be connected independently to the stereo power
amplifier, for optimum sound quality.
Alternatively, for loudspeakers providing a single pair of inputs,
either of the output terminals can be used.
+
OFF
ON
+
–
–
INPUT
INPUT–
–
+
+
Input (L)Input (R)
Outputs (+) Outputs (-) Outputs (+)Outputs (-)
