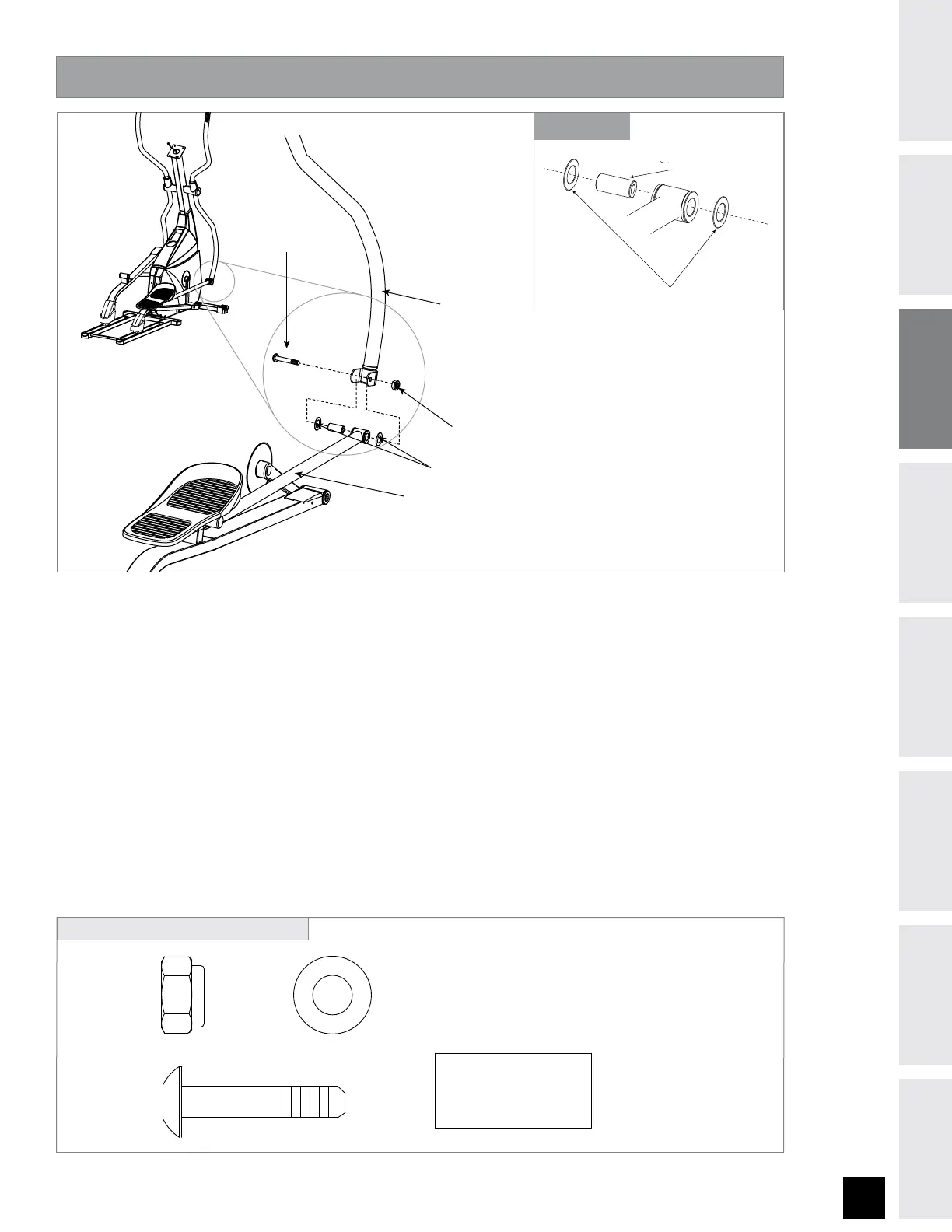

ASSEMBLY STEP 7
A ) Open HARDWARE BAG FOR STEP 7.
B) Align LOWER HANDLEBAR with LOWER LINK ARM.
CAUTION:
Be careful to keep the LOWER HANDLEBAR aligned with guide rail. Do not twist it to the left or
right while positioning it on the LOWER LINK ARM.
C) Slide SPACER (G) through the LOWER LINK ARM and 2 TEFLON WASHERS (B) outside of the LOWER LINK ARM.
D) Insert BOLT (E) into outside end of LOWER LINK ARM to secure LOWER HANDLEBAR.
E) Insert NUT (C) on right side of LOWER LINK ARM
F) Repeat on other side.
HARDWARE BAG FOR STEP 7 CONTENTS :
LOWER HANDLEBAR
LOWER LINK ARM
NUT (C)
BOLT (E)
TEFLON WASHERS (B)
SPACER (G)
Qty: 2
BOLT (E)
50 mm
Qty: 2
NUT (C)
Qty: 2
TEFLON WASHER (B)
20 mm
Qty: 4
STEP C
TEFLON WASHERS (B)
SPACER (G)
