Merit 715T PLUS - Assembly Step 1; Hardware Bag 1 Contents and Usage; Attaching the Left Console Mast

11
ASSEMBLY STEP 1
A Cut the yellow banding straps and lift the
running deck upward and remove all
contents from underneath the running deck.
B Open hardware bag 1.

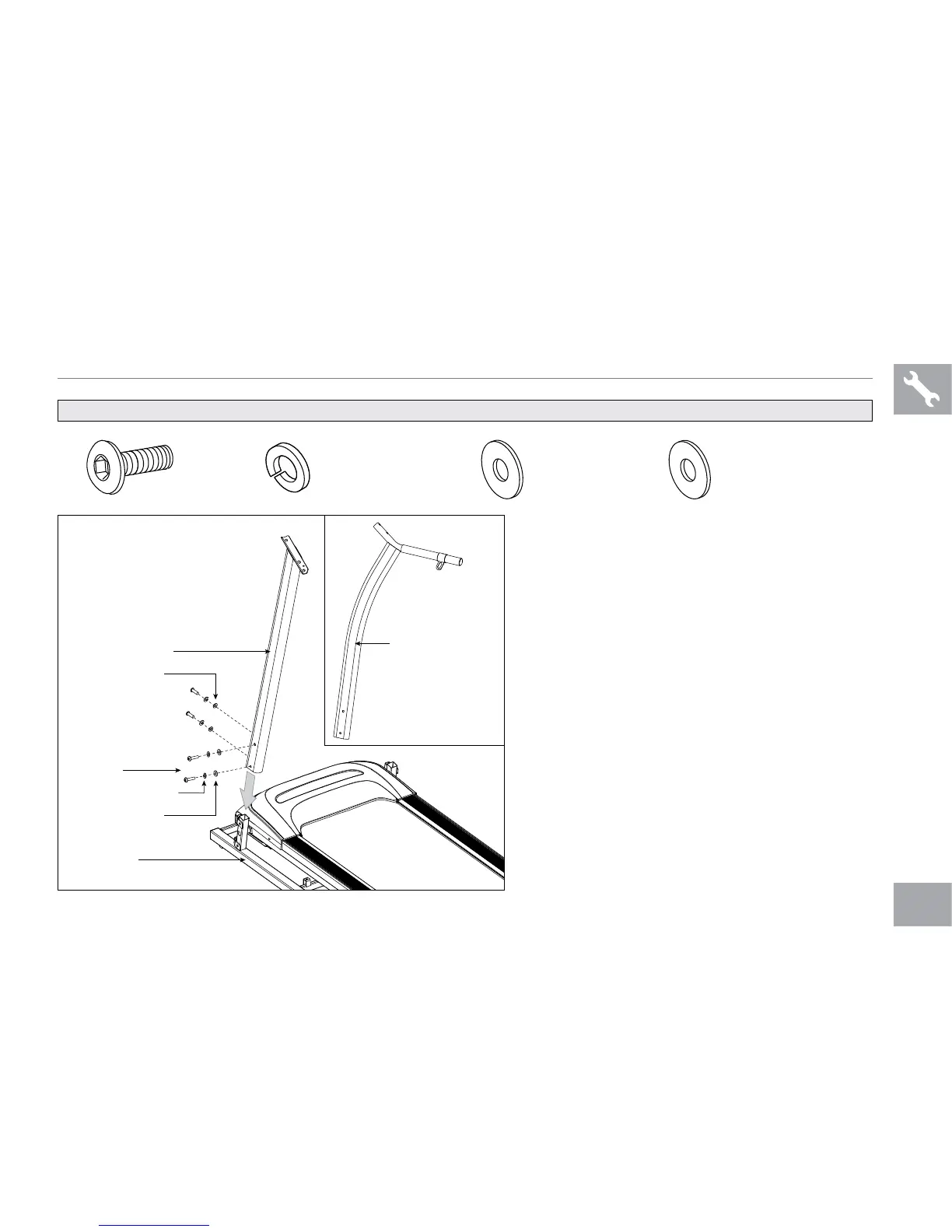

C With the running deck lowered, attach
the left console mast to the base
frame using 2 bolts (a), 2 spring
washers (b) and 2 flat washers (c)
from the side and 2 bolts (a), 2 spring
washers (b) and 2 arc washers (d)
from the rear.
BOLT (A)
20 mm
Qty: 4
SPRING WASHER (B)
8 mm
Qty: 4
FLAT WASHER (C)
8 mm
Qty: 2
ARC WASHER (D)
8 mm
Qty: 2
HARDWARE BAG 1 CONTENTS :
BOLTS (A)
SPRING WASHERS (B)
715T PLUS
LEFT CONSOLE MAST
ARC WASHERS (D)
FLAT WASHERS (C)
BASE FRAME
725T PLUS
LEFT CONSOLE MAST
