MERLYN 8 Series User Manual

INSTALLATION GUIDE

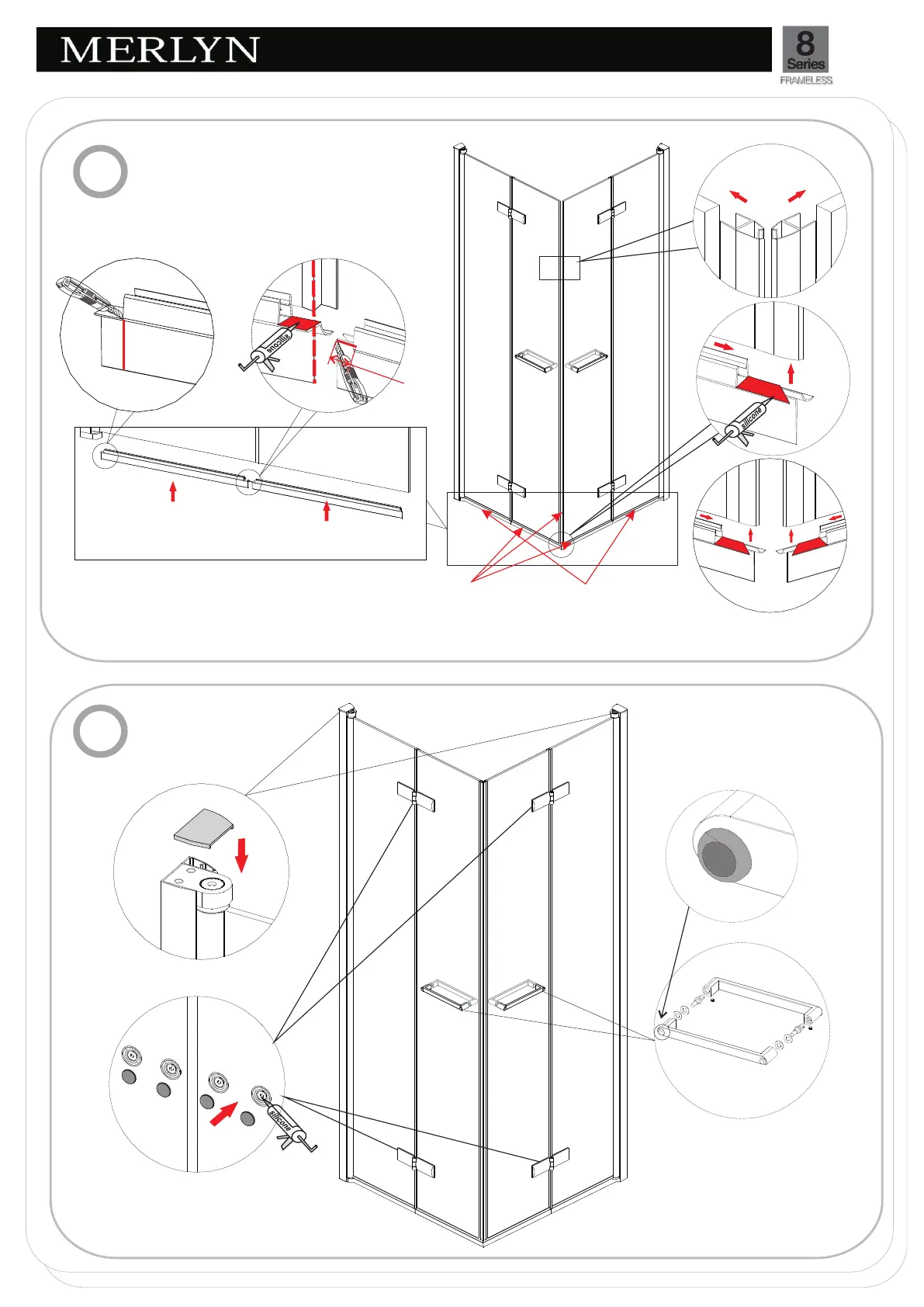

10
Cut excess only
from the hinged
side of both seals.
Magnetic Side
11
12
Add dab
of silicone.
End of the bottom
seal should be flush
with the outside face
of the upright seal.
10 mm
NOTE: Make sure the handle is
fitted with the bump stops facing
to the outside.
M7017
M7115
M7116
M7117
Central Hinge
Pivoting Side
NOTE: On the bottom seal,
ensure the angled fin is
to the inside.
Seals from glass
panel box
NOTE: For a corner door situation, the seal that goes under the magnetic side moving panel and the angled magnets
are in a separate box. The seal on the wall side moving panel is still used. Please discard and seal left over from
the glass panel boxes
Seals and angled seal
from seperate kit box

MERLYN 8 Series Specifications

General

Magnetic Seals	Yes
Glass Thickness	8mm
Finish	Brushed Nickel
Reversible	Yes
Glass Finish	Clear
Frame Finish	Brushed Nickel
Material	Aluminum
Installation Type	Wall Mount
Height	1950mm
