THE MERROW MACHINE COMPANY
Preuer Foot
Sc,~ .... 18 v.
Prcncr Fool Ar,u
Screw 102 ~

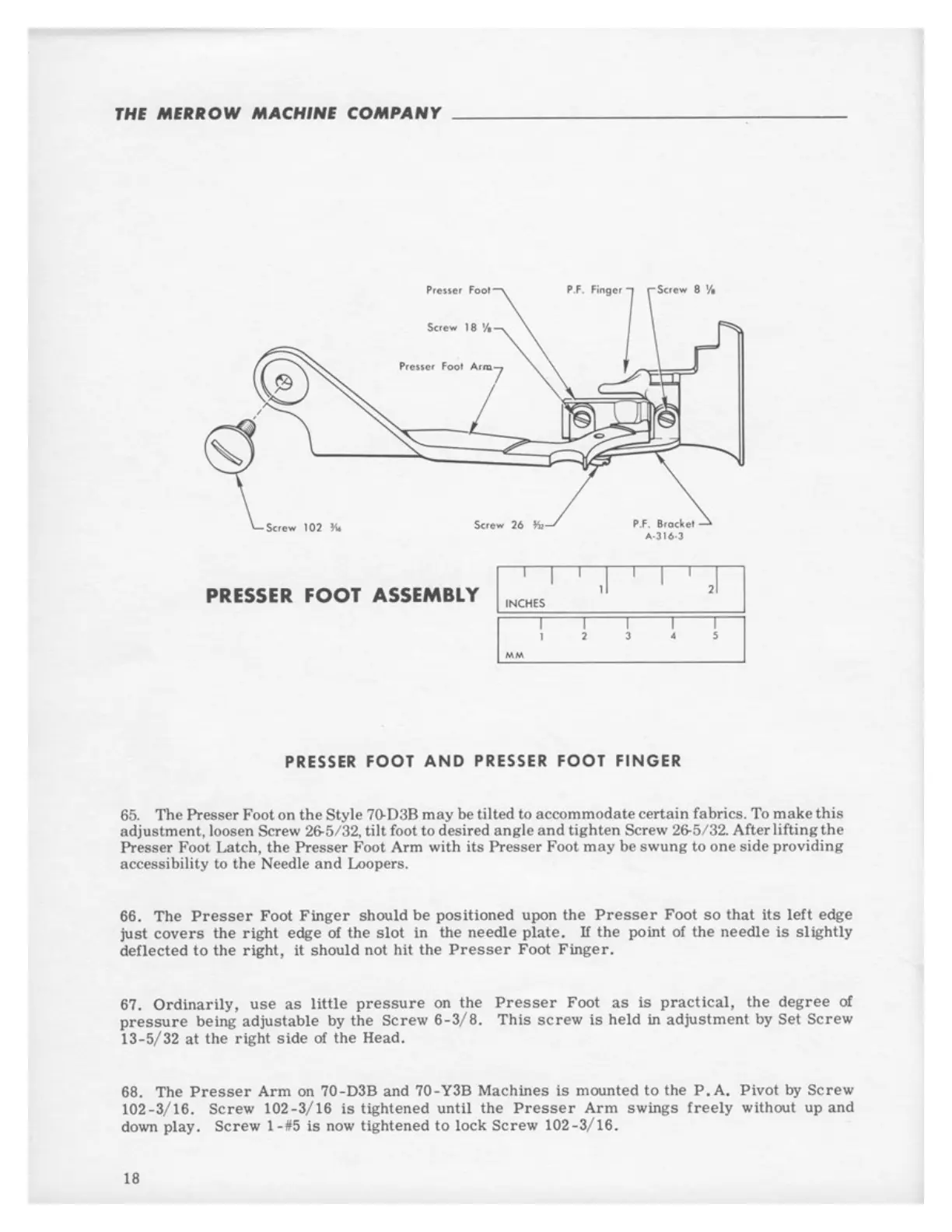

PRESSER FOOT ASSEMBLY
I
I I
INCHES
PF . Fi nger Screw 8 Y•
I I
2 3
P.F. Brockel
A ,316•3
I
s
PRESSER FOOT AND PRESSER FOOT FINGER
65. The Presser Foot on the Style 70-D3B may be tilted to accommodate certain fabrics. To make this
adjustment, loosen Screw 2~5 / 32, tilt foot to desired angle and tighten Screw 2~5/32. After lifting the
Presser Foot Latch, the Presser Foot Arm with its Presser Foot may be swung to one side providing
accessibility
to the Needle and Loopers.
66.
The Presser Foot Finger should be positioned upon the Presser Fool so that its left edge
just covers the right edge of the slot in the needle plate. If the point of the needle is slightly
deflected to the right, it should not hit the Presser Foot Finger.
67. Ordinarily, use as little pressure on the Presser Foot as is practical, the degree of
pressure being adjustable by the Screw 6-3/8. This screw is held in adjustment by Set Screw
13-5 / 32 at the right side of the Head.
68. The Presser Arm on 70-D3B and 70-Y3B Machines is mounted to the P.A. Pivot by Screw
102-3/16. Screw 102-3 /16 is tightened until the Presser Arm swings freely without up and
down play. Screw 1-#5 is now tightened to lock Screw 102-3 / 16.
18
