CLASS 70 INSTRUCTION BOOK

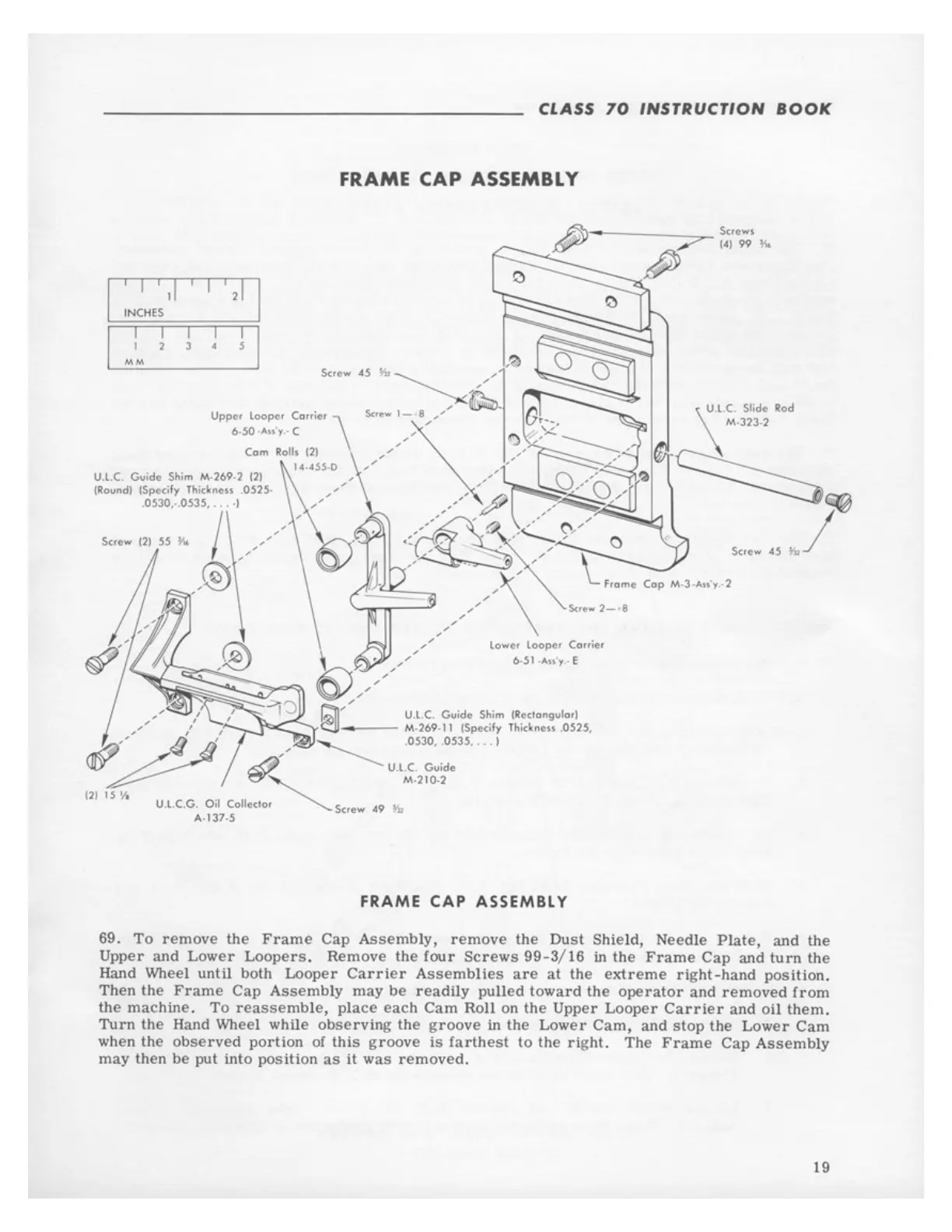

FRAME CAP ASSEMBLY
Lowe, l oo per Carrier
6-51-Au'y.- E
FRAME CAP AS SEMBLY
69. To remove the Frame Cap Assembly, remove the Dust Shield, Needle Plate, and the
Upper and Lower Loopers . Remove the four Screws 99-3/16 in the Frame Cap and turn the
Hand Wheel until both Looper Carrier Assemblies are al the extreme right-hand position.
Then the Frame Cap Assembly may be readily pulled toward the operator and removed from
the machine. To reassemble, place each Cam Roll on the Upper Looper Carrier and oil them.
Turn the Hand Wheel while observing the groove in the Lower Cam, and stop the Lower Cam
when the observed portion of this groove is farthest lo the right. The Frame Cap Assembly
may then be put into position as it was removed .
19
