26PAGE

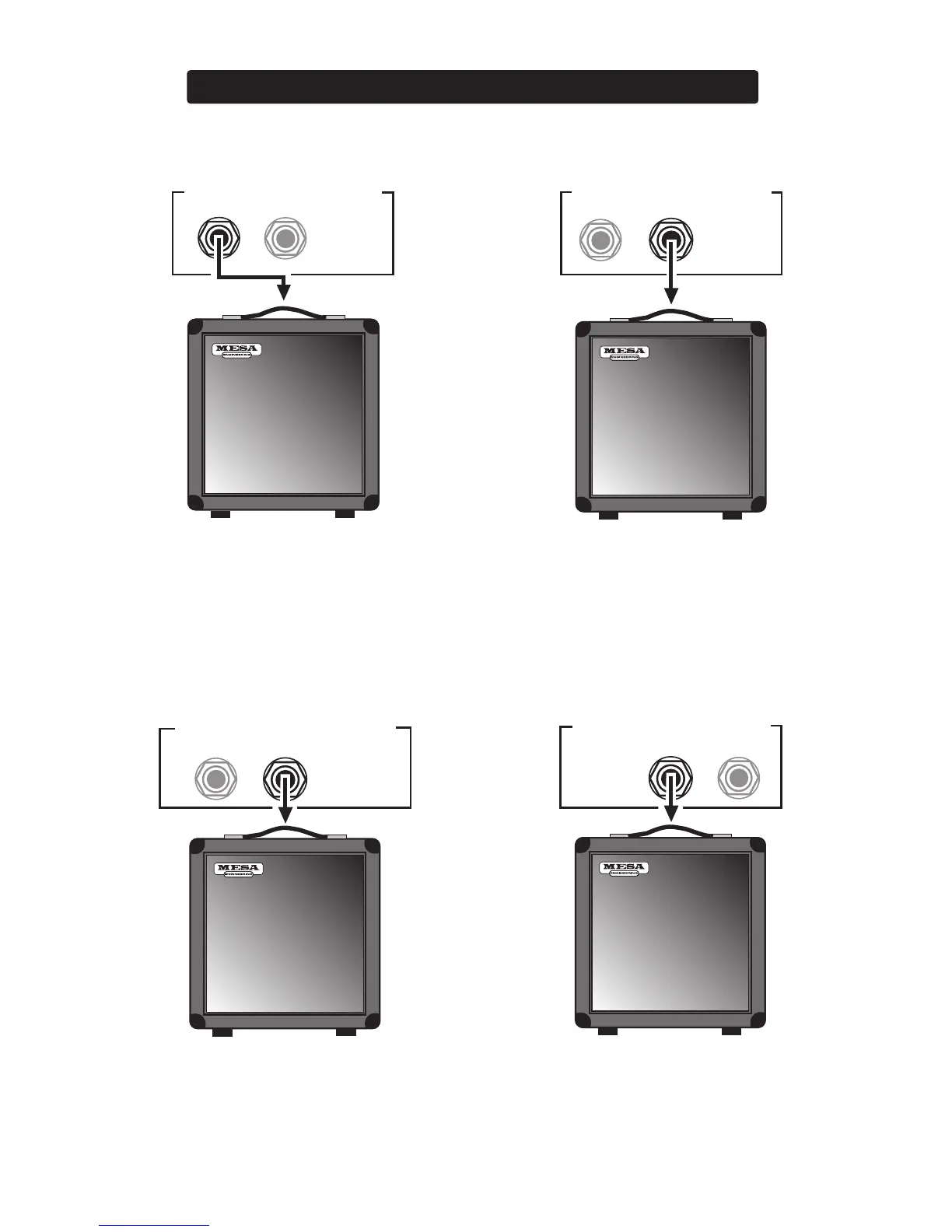

WIRING SCHEMES...Amplifier to Speaker Cabinets
8 OHM 4 OHM
Partial back view of amplifier
4 Ohm Cabinet
2
8 OHM 4 OHM
Partial back view of a Mesa amp
8 Ohm Cabinet
SAFE MISMATCH
3
8 Ohm Cabinet
8 OHM 4 OHM
Partial back view of amplifier
1
8 OHM 4 OHM
Partial back view of amplifier
16 Ohm Cabinet
SAFE MISMATCH
4
