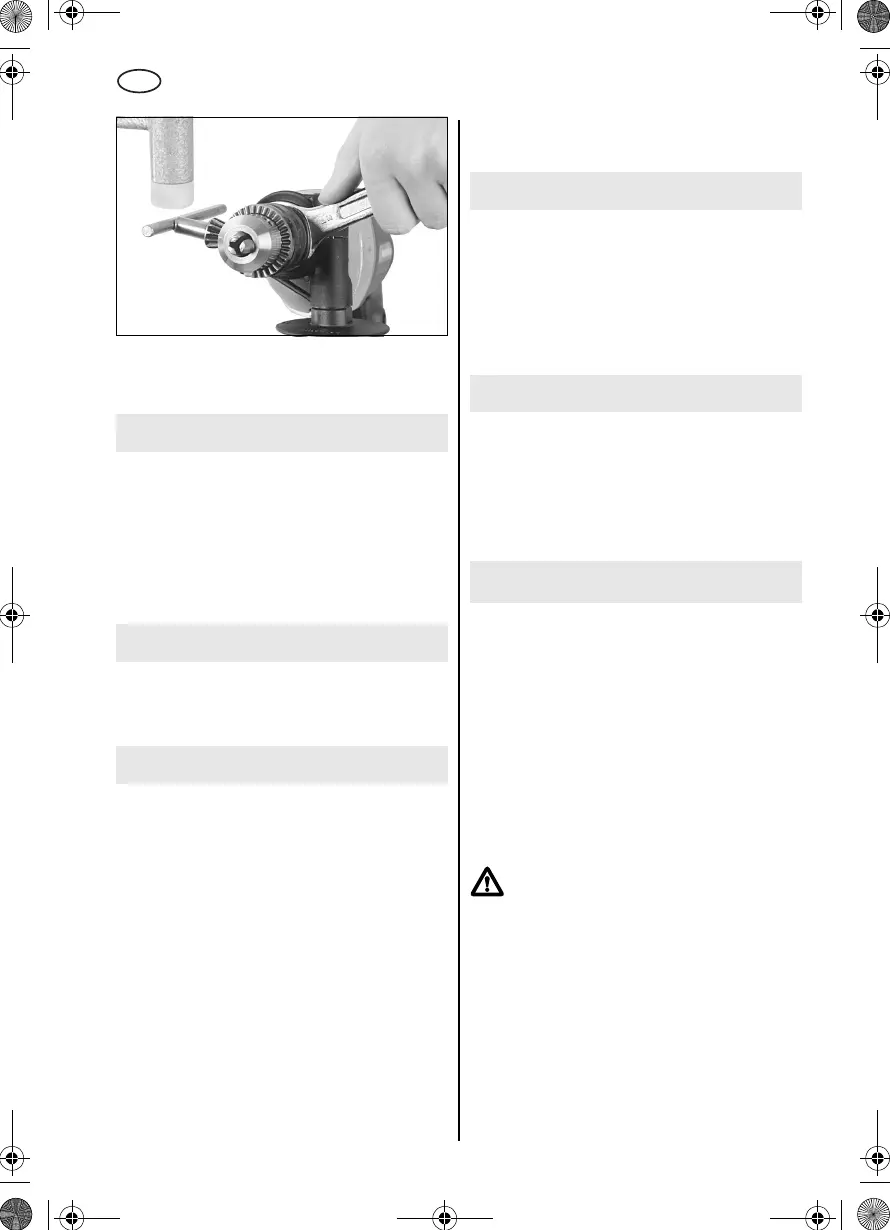

Hold the drill spindle tight with a spanner. With a
light blow from a rubber hammer, release the
chuck from the inserted chuck key and unscrew it.
In the case of deep bores pull the drill bit out of the
bore from time to time in order to remove the bore
dust or shavings.
The chuck can be removed for screwdriving. Insert
screwdriver bit directly in the hexagon socket of
the spindle.
When the bit spring collet is fitted, the screwdriver
bit is held in position.
If the trigger (4) can not be depressed, check to
see that the direction of rotation selector switch (3)
is fully set to the R or L position.
f
Use only genuine Metabo accessories.
If you need any accessories, check with your
dealer.
For dealers to select the correct accessory, they
need to know the exact model designation of your
power tool.
See page 4.
A Angle Drilling and Screwdriving Attachment
B Flexible Shaft
C Drill Stand
D Moulding & Drill Stand
E Machine Vice
F Steel-wire End Brush
G Steel-wire Cup Brush
H Steel-wire Wheel Brush
I
Fitting bit spring
For complete range of accessories, see
www.metabo.com or the main catalogue.
Repairs to electrical tools must be carried out by
qualified electricians ONLY!
Any Metabo power tool in need of repair can be
sent to one of the addresses listed in the spare
parts list.
Please enclose a description of the fault with the
power tool.
Metabo's packaging can be 100% recycled.
Scrap power tools and accessories contain large
amounts of valuable resources and plastics that
can be recycled.
These instructions are printed on chlorine-free
bleached paper.
Explanatory notes on the specifications on page 2.
Changes due to technological progress reserved.
P
1
= Nominal power input
P
2
=Power output
n
0
= No load speed
n
1
= Speed at rated load
ø
max
= Max. solid drill diameter
b = Chuck capacity
G = Spindle thread
H = Drill spindle with hexagon socket
m = Weight without mains cable
D = spindle collar diameter
Wear ear protectors!
The technical specifications quoted are subject to
tolerances (in compliance with the relevant valid
standards).
8 Tips and Tricks
9 Trouble Shooting
10 Accessories
11 Repairs
12 Environmental Protection
13 Technical Specifications
