Metabo BS 18 L User Manual

ENGLISH en
9
V ............volts
.......direct current
n
0...............
rated speed
../min ......revolutions per minute
rpm .........revolutions per minute
Illustrations are provided at the beginning of the
operating instructions.

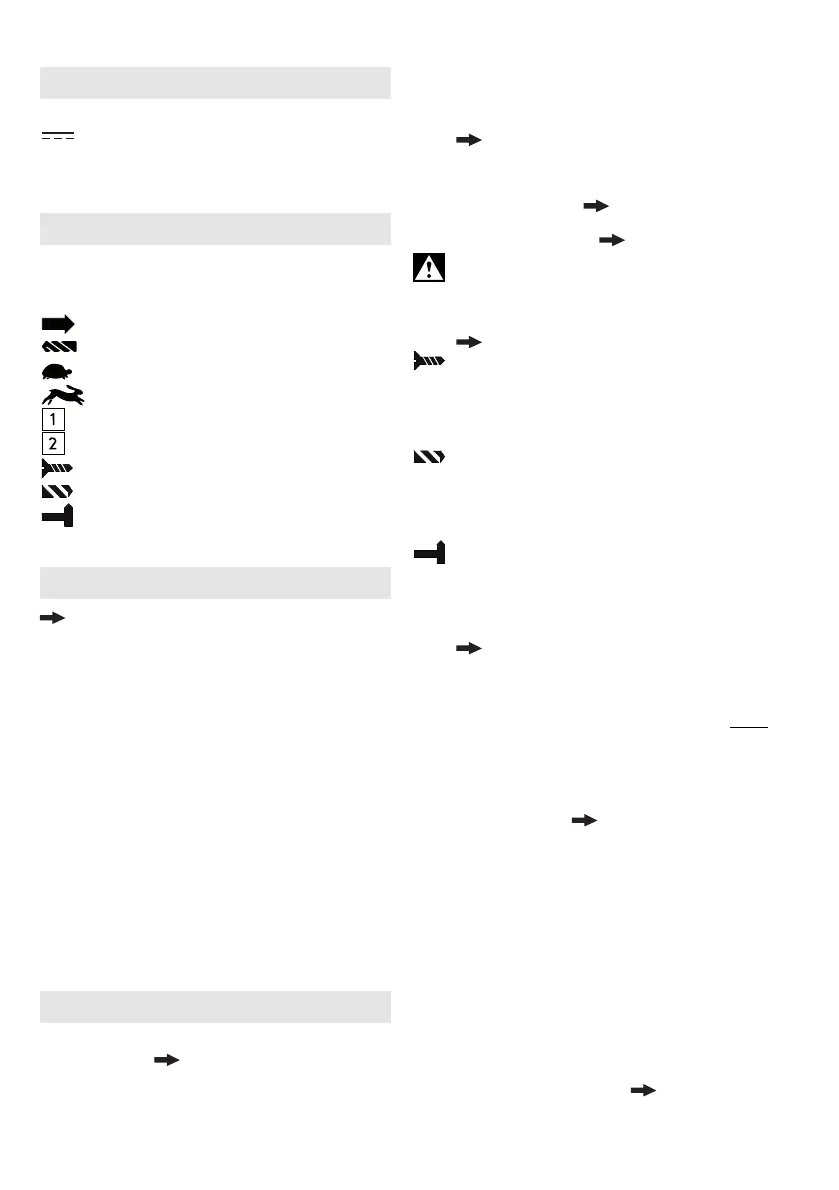

Symbol explanation:
Movement direction
Drill bit
Slow
Fast
First gear
Second gear
Screwdriving / torque limitation
Drilling / max. torque
Impact drilling
Torque
Fig. A
1 Keyless chuck
2 Adjusting sleeve
(Torque limitation)
3 Adjusting sleeve
- Screwdriving / torque limitation
- Drilling / max. torque
- Impact drilling
4 Switch (1st / 2nd gear)
5 Rotation selector switch (rotation setting,
transport lock) - both sides of the machine
6 Bit depot *
7 Belt hook *
8 Battery pack release button
9 Capacity indicator button
10 Capacity and signal indicator
11 Battery pack
12 LED light
13 Trigger switch
*equipment-specific
7.1 Battery pack, capacity and signal
indicator Fig. B
Charge the battery pack before use.
Recharge the battery pack if performance dimin-
ishes.
The ideal storage temperature is between 10°C and
30°C.
7.2 Removing and inserting the battery pack
Fig. C
7.3 Setting the direction of rotation,
engaging the transporting safety device
(switch-on lock) Fig. D
7.4 Selecting the gear Fig. E
Do not set the switch (4) unless the motor has
stopped completely!
7.5 Setting the torque limitation,
screwdriving, drilling and impact drilling
Fig. F
= Set screwdriving by turning the sleeve
(3)
AND
set the torque (with torque limitation) by
turning the sleeve (2) - intermediate
settings are also possible.
= Set drilling by turning the sleeve (3) (max.
torque, without torque limitation)
To avoid overloading the motor, do not
jam the spindle.
Machines with the designation SB...:
= Set impact drilling by turning the sleeve
(3) (max. torque, without torque limitation)
To avoid overloading the motor, do not
jam the spindle.
7.6 Switching On/Off, setting the speed
Fig. A
Switching on, speed: press the trigger switch (13).
Press in the trigger switch to increase the
rotational speed.
Switching off: release the trigger switch (13). Note:
the noise that the machine makes when it
switches off is due to the design (quick stop)
and has no influence on the function or the
service life of the machine.
7.7 Keyless chuck Fig. G
Opening the drill chuck:
Turn the drill chuck sleeve (1) clockwise.
Clamping the tool:
Open the drill chuck and insert the tool as far as
possible. Turn the drill chuck sleeve (1) in clockwise
direction until the tool is clamped securely. With a
soft tool shank, retightening may be required after a
short drilling period.
Cleaning: from time to time, hold the machine
vertically with the chuck facing downwards and
turn the sleeve fully in the direction "GRIP, ZU"
and then turn fully in the direction
"AUF, RELEASE". The dust collected falls from
the keyless chuck.
7.8 Unscrewing the chuck Fig. H
Employ the same procedure when attaching the
chuck, except in reverse order.
4. Symbols on the tool
5. Figures
6. Overview
7. Use
Nm

Metabo BS 18 L Specifications

General

Number of gears	2
Sound power level	88 dB
Chuck capacity (max)	13 mm
Chuck capacity (min)	1.5 mm
Sound pressure level	77 dB
Idle speed (1st gear)	450 RPM
Idle speed (2nd gear)	1800 RPM
Sound level uncertainty	3 dB
Drilling diameter in wood (max)	20 mm
Drilling diameter in steel (max)	10 mm
Vibration level (metal drilling)	2.8 m/s²
Maximum torque (hard applications)	50 N⋅m
Maximum torque (soft applications)	25 N⋅m
Product color	Black, Green, Red, Silver
Uncertainty K	1.5 m/s²
Power source	Battery
Battery voltage	18 V
Battery capacity	2 Ah
Battery level indicator	Yes
Chuck type	Keyless
Product design	Pistol grip drill
Number of batteries included	2 pc(s)
Maximum torque (imperial)	442.5 in⋅lbs

Weight and Dimensions

Weight	1600 g
