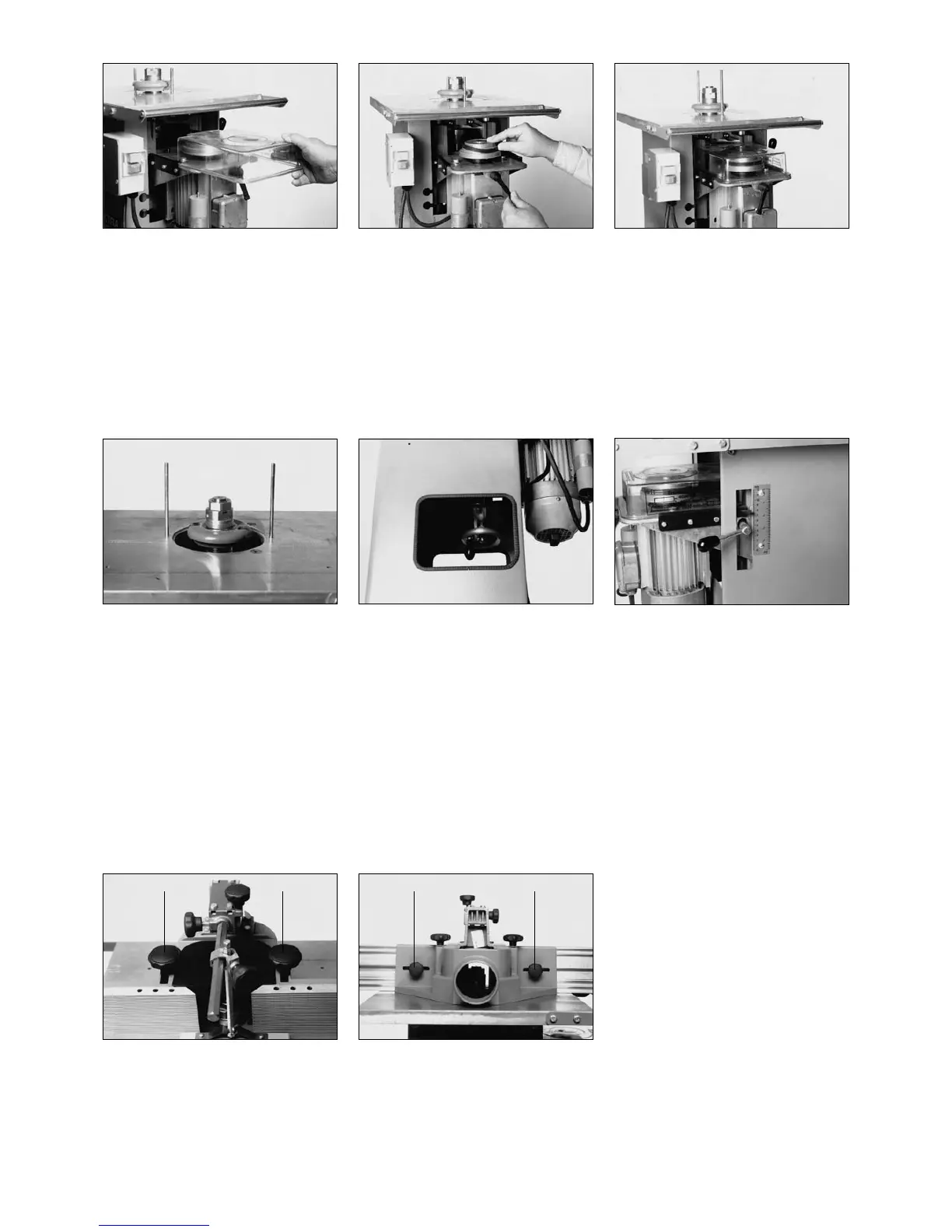

13.3 Spindle Speed Setting/Changing
Tighten the belt and replace the plas-
tic guard.
Remove the plastic cover to have
access.
Loosen the ratchet lever and place
belt on the desired step of the pulleys.
Available speeds are:
top = 4000 min
-1
centre = 6000 min
-1
lower = 7500 min
-1
BB
AA
13.5 Fence And Fence Plate Setting
Caution!
Switch machine off and let tool come
to a complete stop before making any
adjustments.
Loosen the starknobs (B) to reposi-
tion the fence plates.
Loosen both starknobs (A) to move
the fence forward or backwards.
13.4 Tool Height Setting
If the tool is only partially used and
needs to be lowered below the table,
remove the table rings before moun-
ting it on the spindle.
Spindle vertical adjustment is
achieved by turning the handwheel
inside the main frame. Turn
- clockwise to raise
- counter-clockwise to lower
After a spindle height adjustment lock
in position by engaging the spindle
lock lever.
Caution!
Switch machine off and let tool come to a complete stop before making any adjustments.
