Metabo TPS 16000 S Combi User Manual

12
ENGLISH
BRisk of electric shock from pump
faults!
Before each use check the equipment, espe-
cially the power and extension cables, power
plug and float switch for possible damage.
Risk of fatal electric shock!
Do not attempt to repair the pump yourself!
When repaired inexpertly there is a hazard of
liquid entering the electrical parts of the pump.
A Caution!
To avoid water damage, e.g. flooded
rooms, caused by pump malfunctions or
defects:
 provide for suitable safety measures such
as the following:
– alarm or
– collection tank with monitoring.
The manufacturer is not liable for any dam-
age caused by:
– improper use of the pump;
– overloading of the pump through conti-
nous operation;
– failure to operate and store the pump in a
frost-free environment;
– unauthorised modification of the pump (re-
pairs to electrical equipment may only be
carried out by qualified electricians!);
– use of spare parts which have not been
tested and approved by the manufacturer;
or
– use of unsuitable installation materials (fit-
tings, connection lines etc.).
Suitable installation materials:
– pressure-resistant (min. 10 bar)
– heat-resistant (min. 100°C).

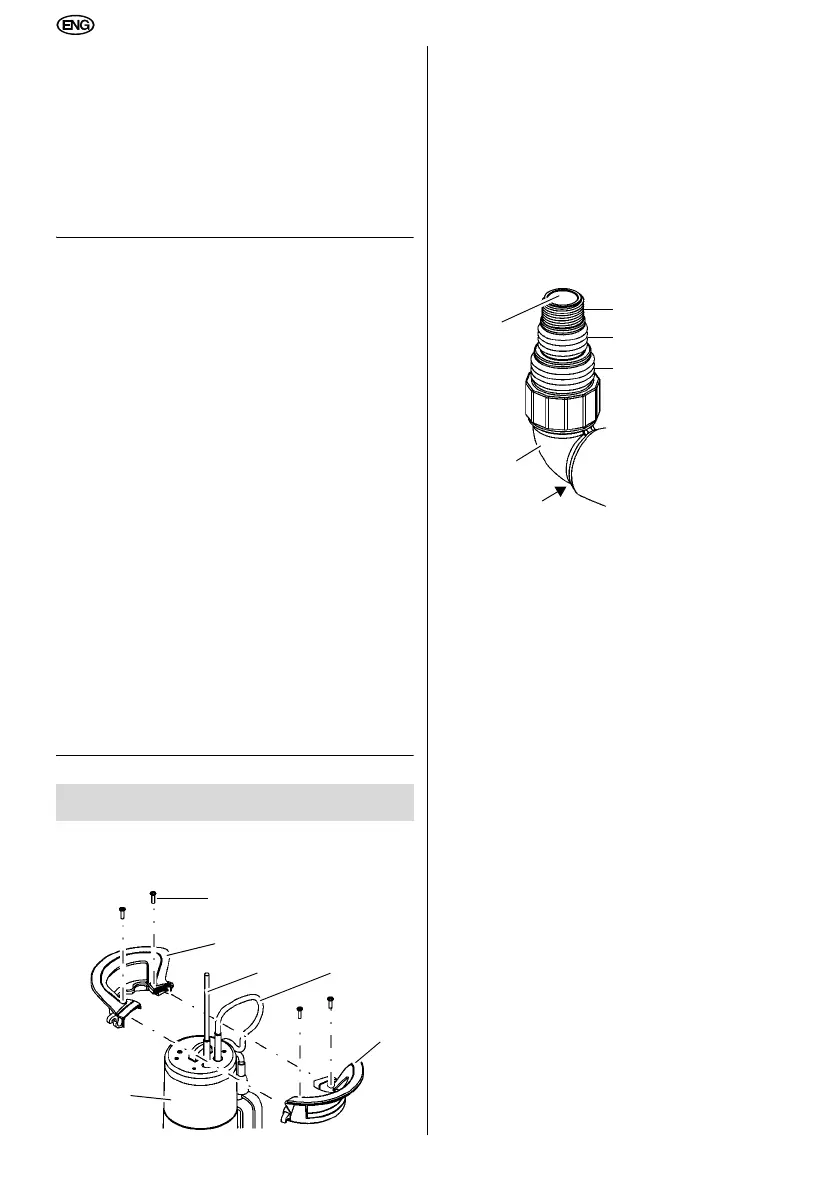

4.1 Assembling the handle / lift-
ing eye
1. Bring the two halves of the handle (12) to-
gether as illustrated above.
Run the power supply cable (13) and float
switch cable (14) out the top.
2. Join the two halves of the handle (12). En-
sure that the guides on the two handle
parts engage.
3. Secure the handle with the four screws
(11) to the pump casing (15). Use the sup-
plied screws only.
4.2 Connecting the discharge line
1. For selection of the largest discharge line
diameter:
cut the smaller attachment off the multi-
adapter (16).
3Note:
The best pump capacity is achieved through
selection of the largest discharge line diame-
ter.
2. Screw the multi-adapter (16) on to the el-
bow (17).
3. Screw the elbow incl. multi-adapter on to
the discharge port (18).
4. Slide the discharge line over the multi-
adapter (16) and secure with a hose
clamp.
4.3 Fixing the float switch cable
3Note:
Fix the float cable such that the distance be-
tween the cable holder and the float switch is
at least 100 mm.
4. Assembly and Installation
11
12
13
12
15
14
G 1"
1¼"
1½"
17
18
16
