9
OPERATING MANUAL
e machine is delivered in complete assembled execution. It must be leveled and rmly
stationed on the oor where it is to be used, according to the Installation Diagram attached.
Indoor installation and a dry working environment without danger of re and explosion is
necessary.
e oor load, where the machine is to be installed, must be suitable for the weight of the ma-
chine.
3. INSTALLATION
3.1 Base Foundation and Securing Points

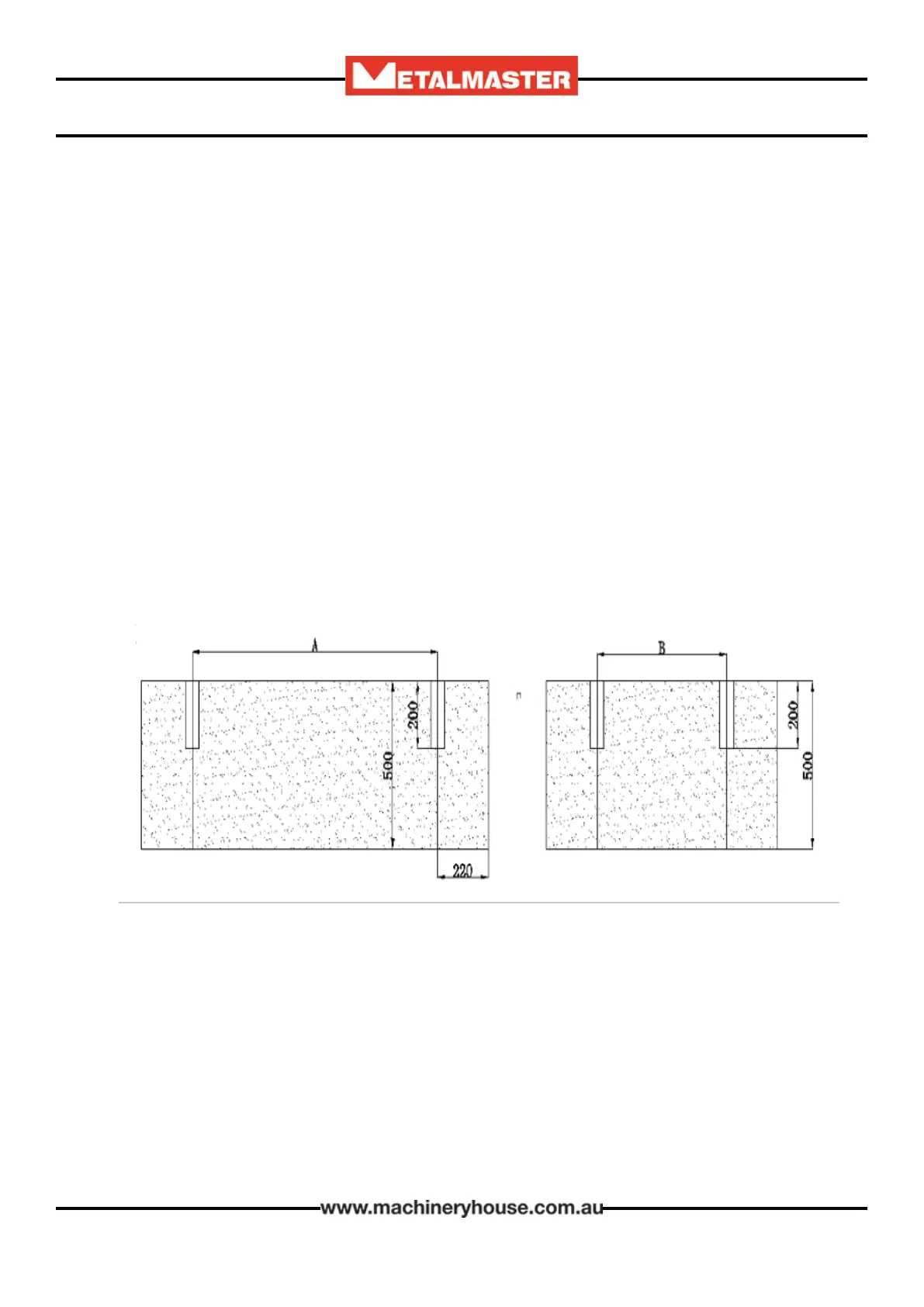

Before securing the machine a solid concrete base must be prepared to the specication of the
machine.
e sizes for the bolt holes position are listed as A-B.
Fig. 2.5
