Metapace
Rev. 1.01
- 4 -
2. Manual Information
The purpose of this manual is to provide information on the operation and usage
instructions of the Ethernet Interface for the Metapace Printers.

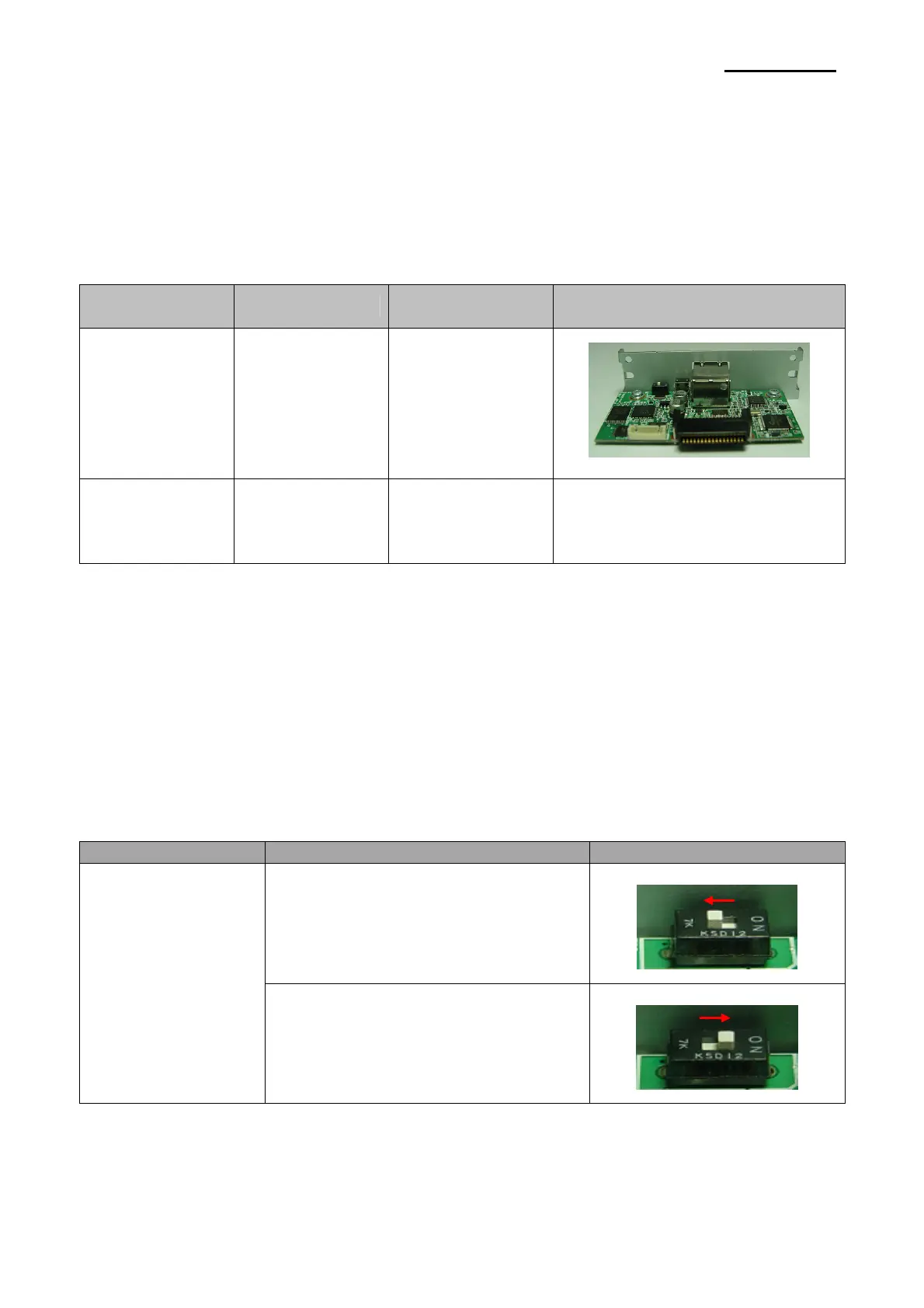

3. Interface card and available printer
4. How to install
1) Check the interface version
[Note]
Each version uses its own Configuration Tool.
2) Turn of the printer and insert the interface card.
[Note]
When a user installs IFA-EP on printer, The DIP switch on the interface board should
always be OFF
Interface Card Printer Picture
Metapace T-1
IFA-EP TYPE
Metapace T-2
3) Set the baud rate (Serial speed)
(Refer to [Appendix 3])
4) Connect LAN cable to the interface card and turn on the printer.
Printer Interface Card
Hardware
version
Metapace
T-1 / T-2 IFA-EP TYPE V1.x.x
Metapace
L-1 / L-2
- -
ON Board
