Metasys COMPACT Dynamic - Page 17

Use | EN
17
6. Use
6.1. Normal operation
Ensure that the device is switched off at least 1 x per working day for level measurement. The 24 V AC power supply must be
connected after the device’s or practice‘s main switch.

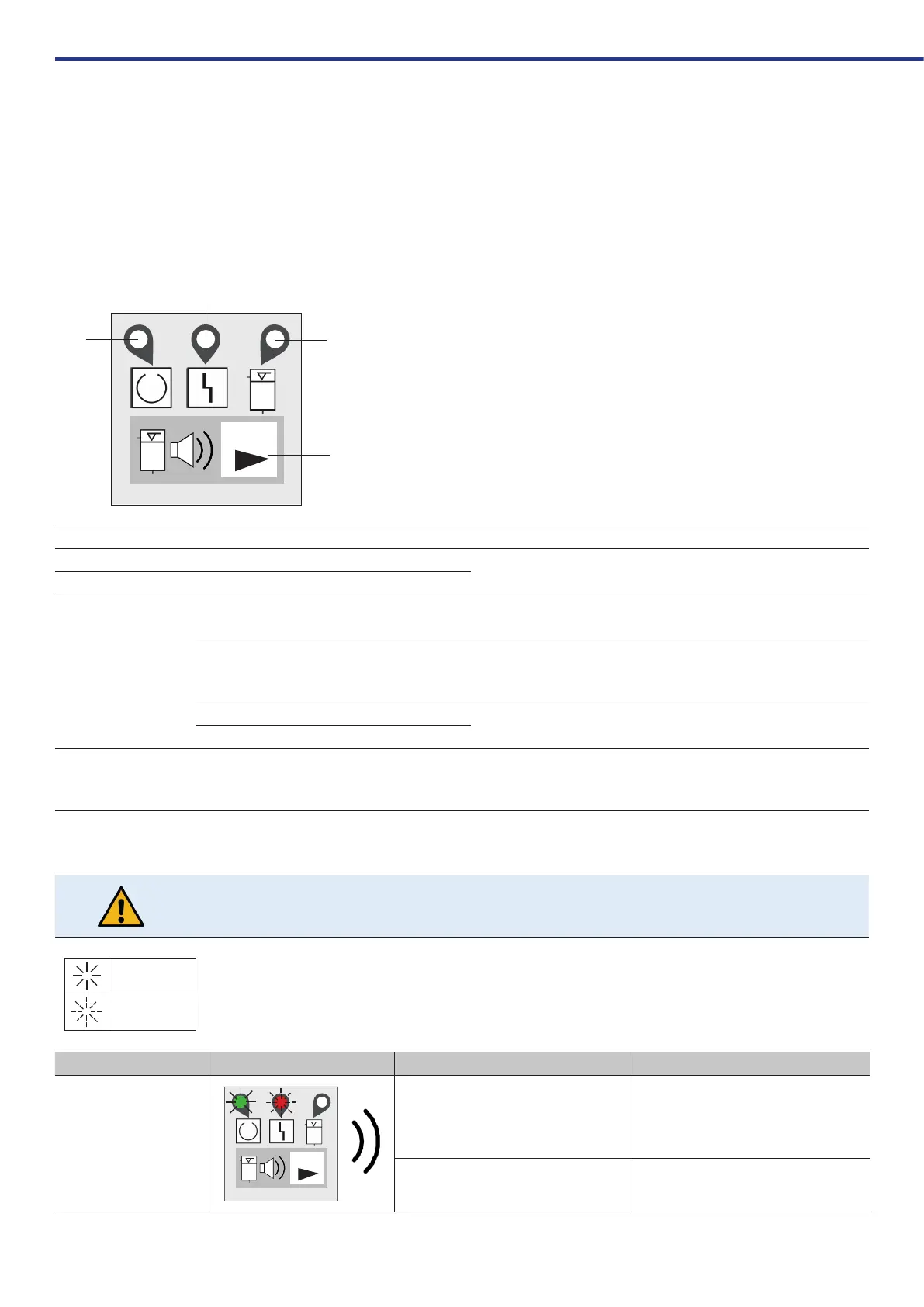

6.1.1. External display
RESET
RESET
1
2
4
3
1 LED 1 green glowing ready for operation
2 LED 2 redashing
see 6.2 Error messages
red glowing
3 LED 3 yellow glowing
+ buzzer tone switchable via RESET
Level indicator: Container 95% full
yellow glowing
+ buzzer tone that cannot be switched off via
RESET
Level indicator: Container 100% full
yellowashing
see 6.2 Error messages
yellow glowing
4 RESET No colour RESET button
When the container is 95% full, the buzzer tone can be switched off by
pressing the RESET button.
6.2. Error messages
Assembly, modications and repairs may only be carried out exclusively by authorised specialist personnel (see 3.2. Safety
instructions)! The METASYS technical customer service is also available for further information and assistance in carrying out repairs,
retrotting,faultanalyses,etc.
RESET
RESET
RESET
RESET
RESET
RESET
LEUCHTEN
BLINKEN
1
RESET
RESET
2
RESET
RESET
3
RESET
RESET
4
RESET
RESET
1
2 3
4
Error message Externe Anzeige Possible cause Countermeasures
LED 1 glows green
LED2ashesred
Buzzer tone
RESET
RESET
RESET
RESET
RESET
RESET
LEUCHTEN
BLINKEN
1
RESET
RESET
2
RESET
RESET
3
RESET
RESET
4
RESET
RESET
1
2 3
4
Capacitive sensor interrupted or short
circuit.
Valve interrupted or short circuit.
Motor not connected.
Notify your service technician.
collection container not inserted correctly.
See 7.2.1 to insert the collection container
correctly.
