DX LCD Display
i








16 mm max. /
0.63 in. max.
174 mm /
6.85 in.
144 mm /
5.67 in.
1

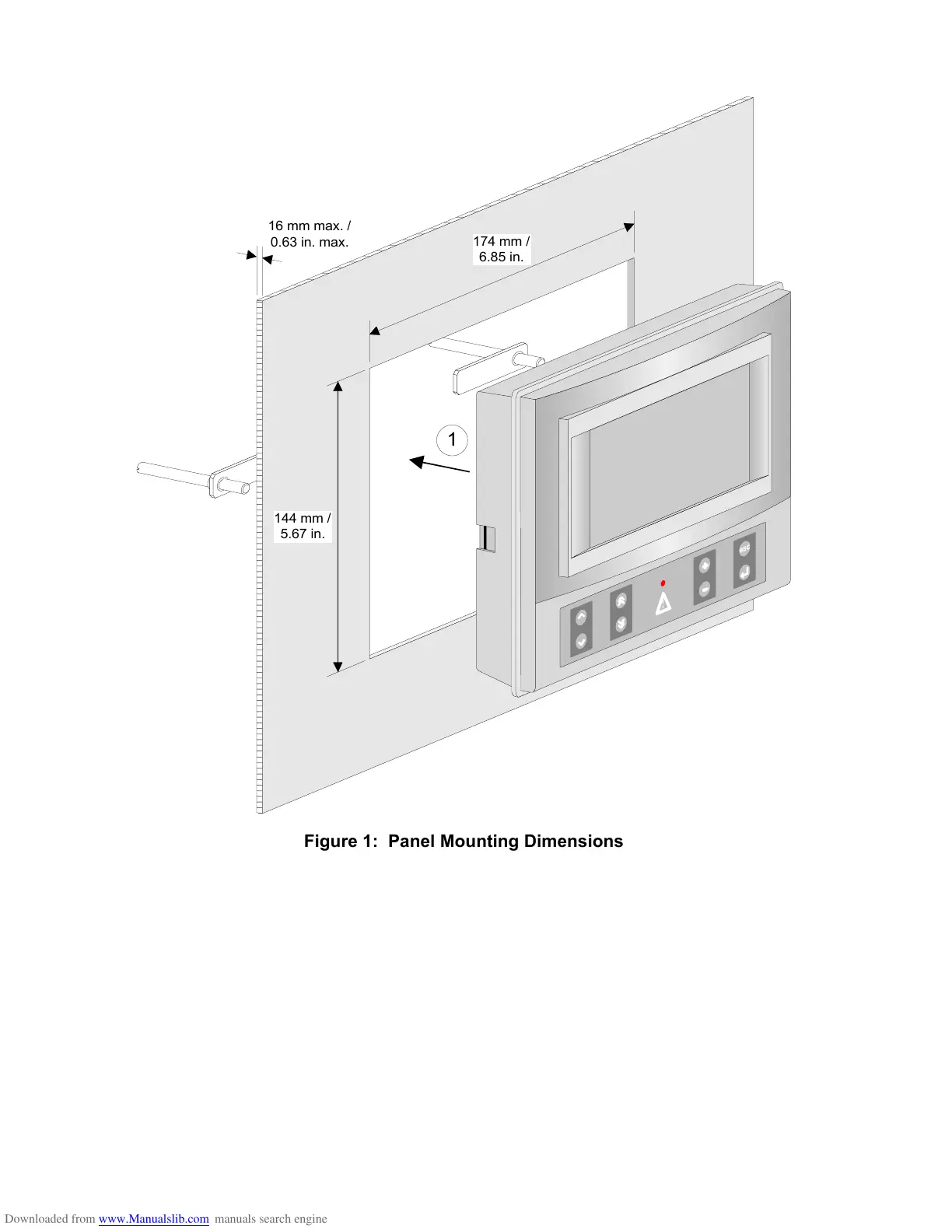

Figure 1: Panel Mounting Dimensions
