Doc# 100545 • REV C (May 2016) Page 9 of 16

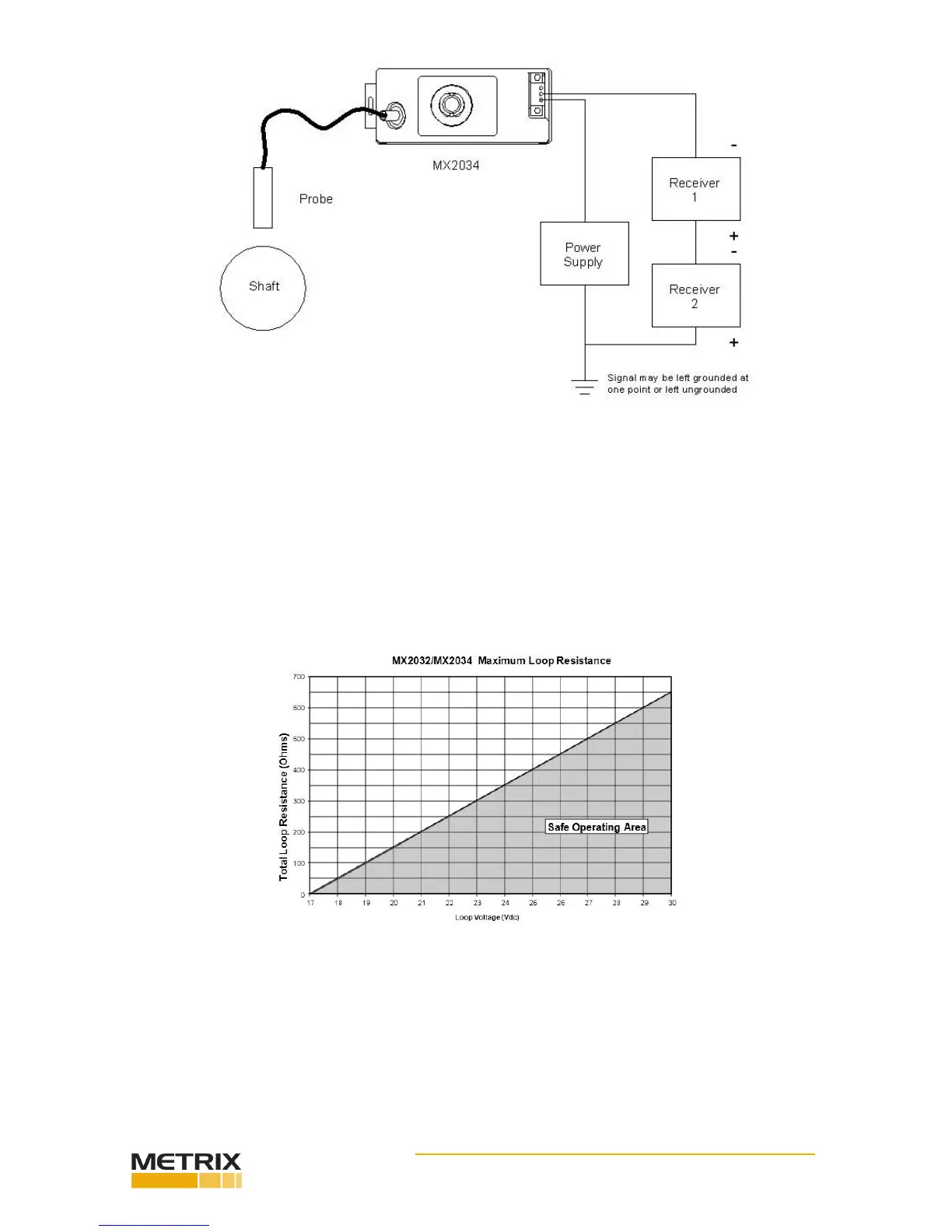

Figure 10: MX2034 wiring with mulple receivers

Connect the eld wiring (16 to 22AWG) in accordance with the appropriate diagrams. For

the MX2034, the minimum power supply voltage is 17 V plus 1 volt for each 50 Ω of loop

resistance. See Graph 1.
