Doc# 100545 • REV C (May 2016) Page 8 of 16
MX2033 Field Wiring Installaon
The driver circuit is insulated from ground by its plasc housing. If grounding of the driver
is required, a jumper wire can be used to connect the COM terminal to one of the mount-
ing screws. Proper aenon must be given to other connecons in the circuit to prevent
unwanted ground loops which can cause improper operaon.
MX2034 Field Wiring Installaon
You can wire the MX2034 transmier with one or mulple receivers as shown in Figure 9 or
Figure 10.

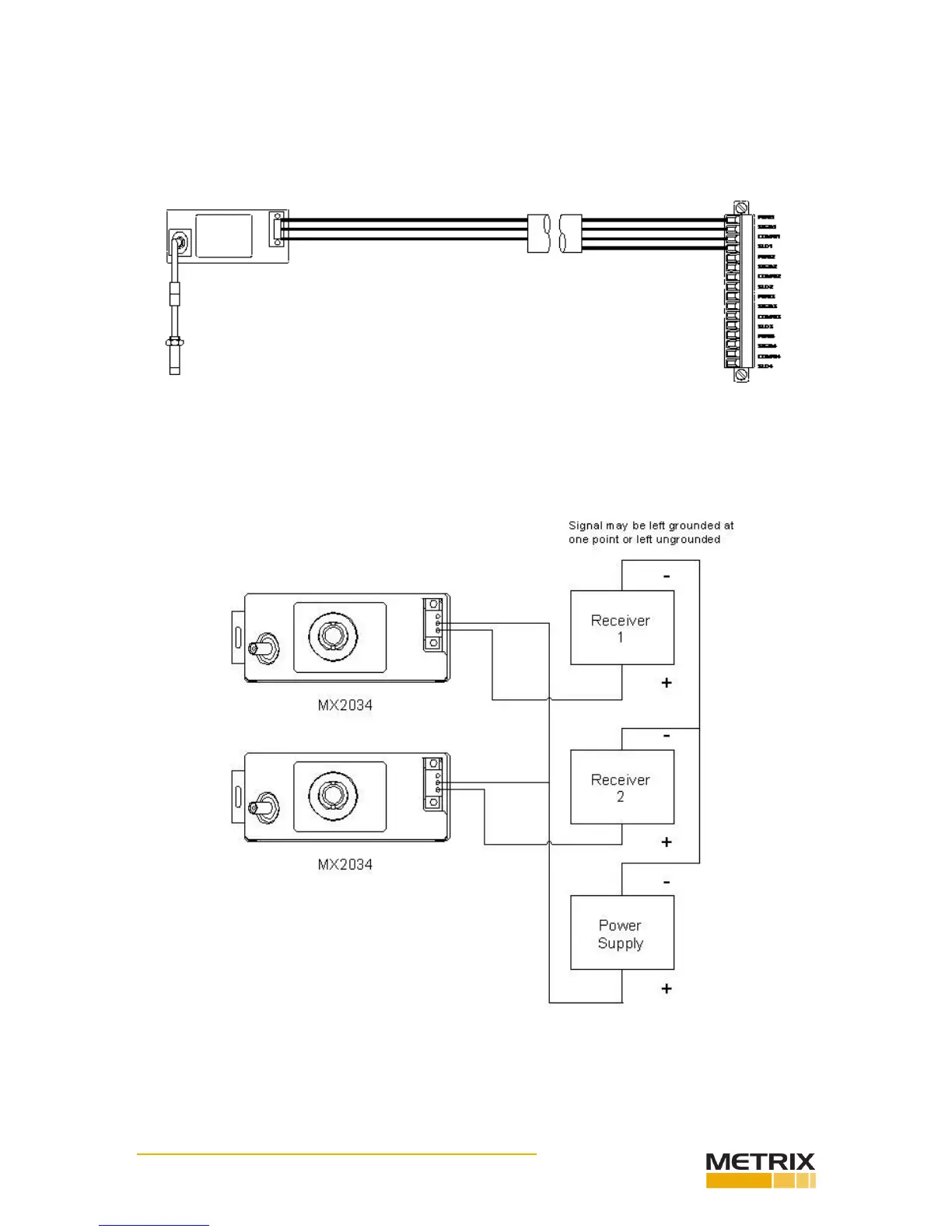

Figure 9: MX2034 wiring with individual receivers
