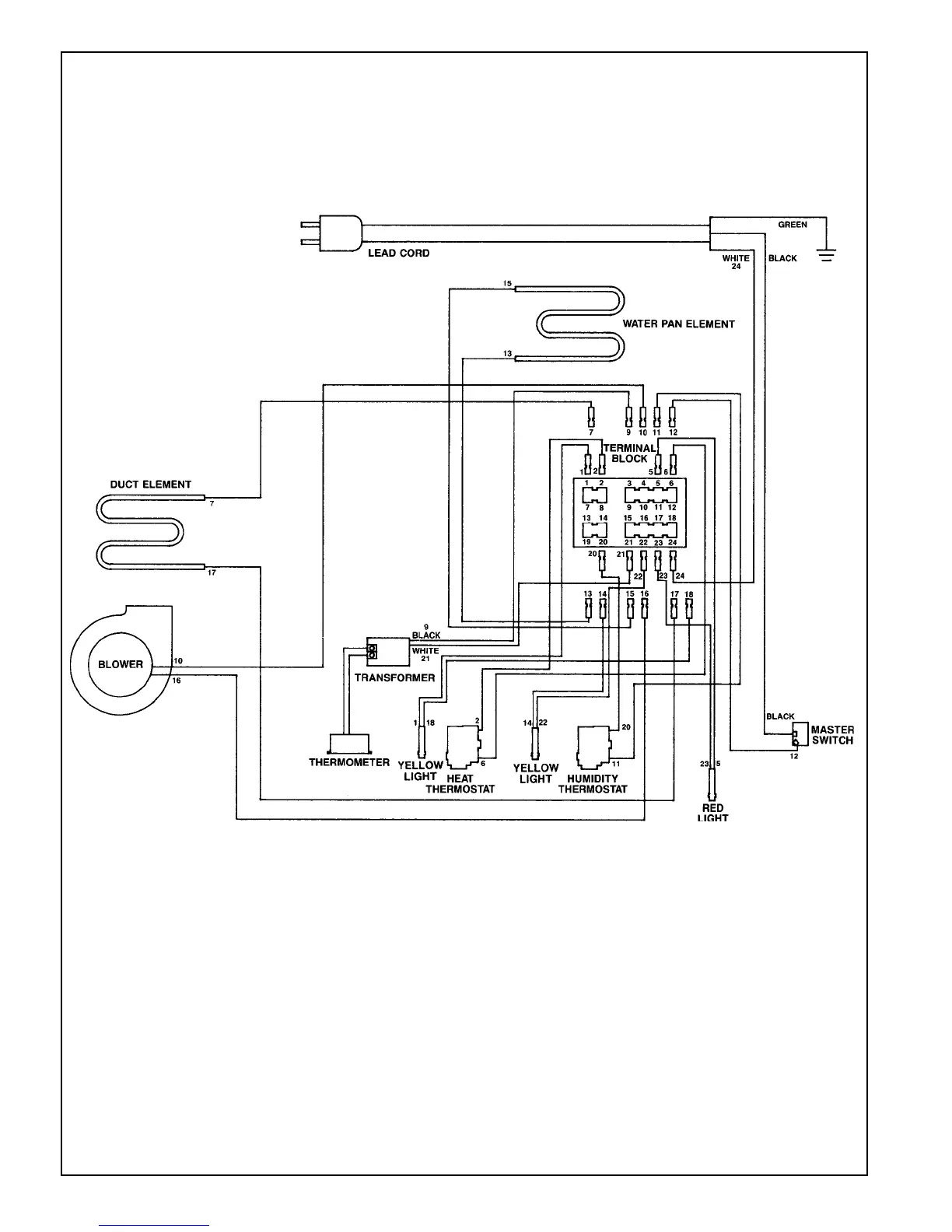

PROOFER MODULE WIRING DIAGRAM
NOTE: Wiring diagrams are shown with
module upside down for servicing.
