14
9
17
24

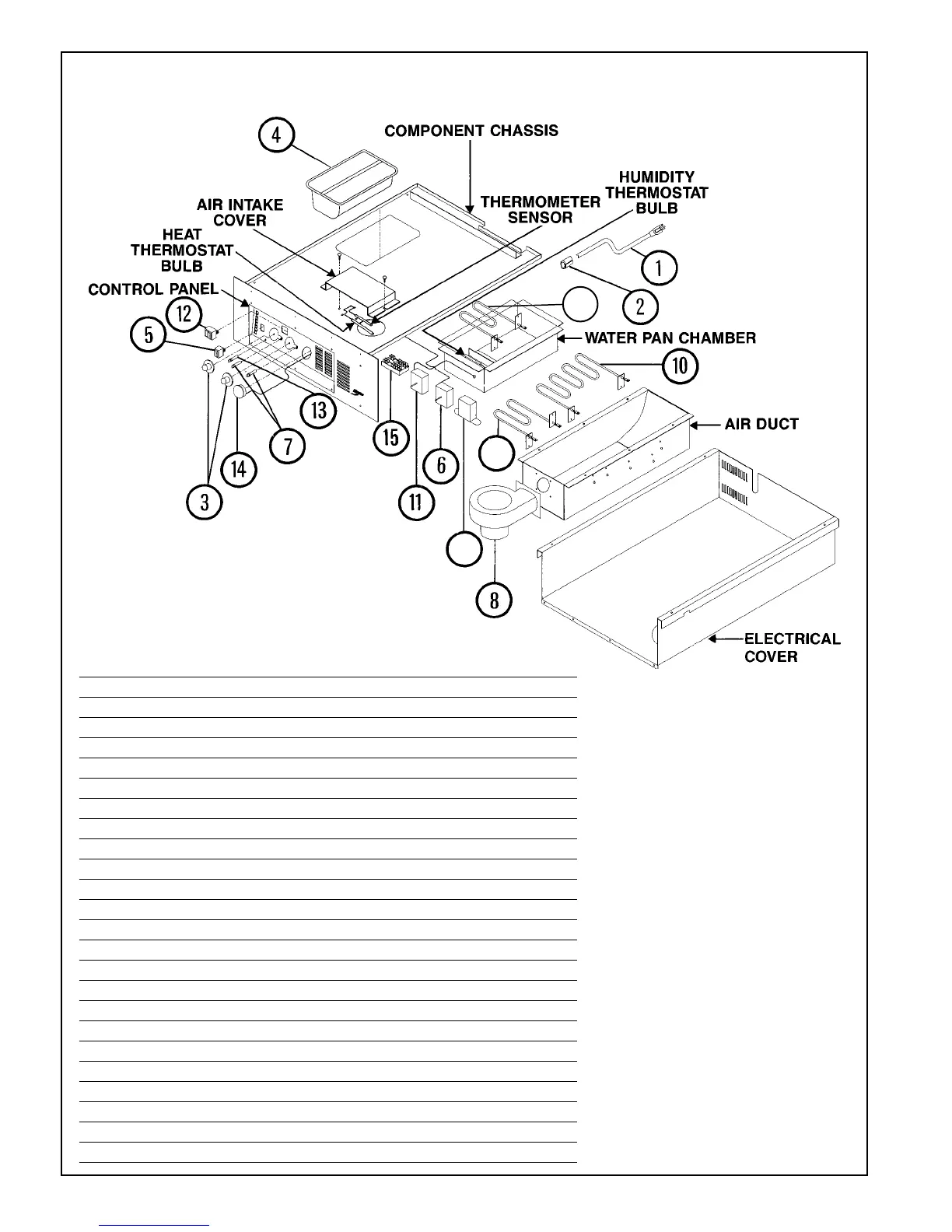

Combo Module Replacement Parts Diagram
REPLACEMENT PARTS LIST
Item No. Part No. Description
1 RPC13-099 Power Cord — 20 AMP
2 RPC13-098 Strain Relief — 20 AMP
3 RPC06-313 Thermostat Knob
4 RPCM20-PAN Water Pan
5 RPC13-127 Power Switch
6 RPC13-129 Temperature Thermostat
7 RPC13-105 Yellow Indicator Light
8 RPHM20-2103 Circulating Blower
9 RPC13-162 675 Watt Heat Element — Water Pan
10 RPC13-093 Heat Element — Air Duct
11 RPC13-135 Humidity Thermostat
12 RPC13-128 Selector Switch
13 RPC13-064 Red Indicator Light
14 RPC13-181 Thermometer
15 RPC13-096 Terminal Block — Control Panel
16 RPC13-012 Ring Terminal
17 RPC13-162 675 Watt Heat Element — Air Duct
18 RPF02-042 Push Nut — Indicator Lights
19 RPC11-191 Blower Collar
20 RPC13-085 Wire Nuts — 12 GA
21 RPC07-044 Grommet — Thermometer Wire
22 RPC06-222 Thermostat Bulb Clamp
23 RPC13-027
1
/4” Spade Terminals
24 RPC13-183 Thermometer Transformer
To Next Page
