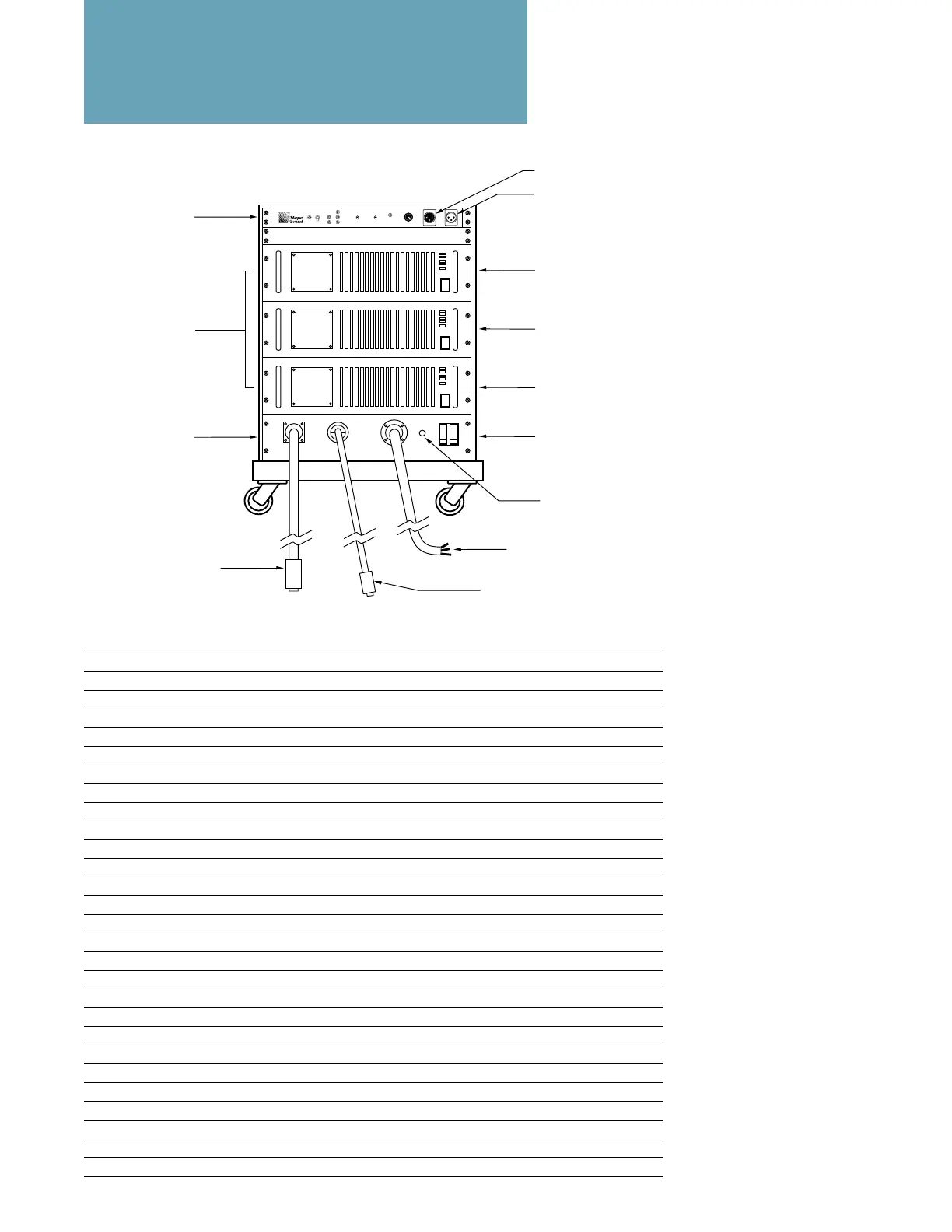

MSL-10A Rack System
M-10A Control
Electronics Unit
High Amplifier
50A Power Switch/
Circuit Breaker
Low Amplifier 1
Low Amplifier 2
MS 10 Power
Amplifiers
Notes:
1. Cycle consisting of
50 msec sinewave at 120 V
peak and 450 msec
sinewave at 24 V peak
2. Cycle consisting of
25 msec sinewave at 120 V
peak and 975 msec
sinewave at 41 V peak
3. Cycle consisting of
400 msec sinewave at
120 V peak and 2400 msec
interval at 0 V
I/O Panel
Power Indicator
Rack System Features:
Integrated signal process-
ing includes optimized
active crossover, ampli-
tude and phase correc-
tion, and driver protection
circuitry to maintain safe
operating levels
Modular amplifier rack
includes control electron-
ics, amplifiers and
interconnection panel for
easy interface with
speaker system
Input/Output unit provides
power switch and circuit
breaker for entire system;
protection and power
distribution to the CEU,
amplifiers, and loud-
speaker; and loudspeaker
and external power
connections
Completely engineered
and ready to install
Mains Power Cable
Environmental Power Cable
Loudspeaker Cable
M-10A Control Electronics Unit
(3) MS 10 Power Amplifiers
I/O Panel
24" W x 36 1/4" H x 27 3/4" D
10 ga. 6 cond., Pyle ZPEK 1620 both ends
16 ga. 3 cond., NEMA L6-15R both ends
8 ga. 3 cond., Hubbell CS-8264-C to bare leads
Bridge mode, single balanced input
16 dB
1800 watts
1100 watts
367 watts
In bridged mode, 4 ohm resistive load, will
reproduce three specified burst waveforms
1,2,3
,
each continuously for 1 hour, without shutdown or
limiting
In bridged mode, 8 ohm resistive load, passes the
FTC continuous power test
In bridged mode, 4 ohm resistive load, will
reproduce a 400 msec sinewave burst at 225
watts, 2.8 sec burst interval, continuously for
1 hour without shutdown or limiting
Latch-up protection
Indicators for clipping, limiting, thermal overload
MSL-10A Rack System (each section)
Component Complement
Dimensions
Interconnects
100' Speaker Cable
100' Environmental AC Cable
30' Mains Power Cord
MS 10 Power Amplifier
Configuration
Voltage Gain
Power Output
0.5 sec burst @ 4 ohms
FTC Rating @ 8 ohms
Continuous @ 8 ohms
Nominal (235 VAC) Mains Operation
High (255 VAC) Mains Operation
Low (200 VAC) Mains Operation
General
Loop Output
Signal Input
