TM
MATERIAL:
SCALE
TITLE
DRAWING SIZE
D
DRAWING No:
LINDENWOOD ILLINOIS
WHERE USED
CADD FILENAME:
REF. DRAWING
DR BY
APPV BY
DATE
APPVBYDATEPIF#
REV
REVISION
NOTED)
(EXCEPT AS
DO NOT SCALE DRAWING
DATE
*********************
ProE Drawing
This drawing was
created in ProE.
The orginial drawing
should only be
edited in ProE.
*********************
1.000
1.000
1.000
.500
1.000
1.000
3.500
1.000
00002-562-00

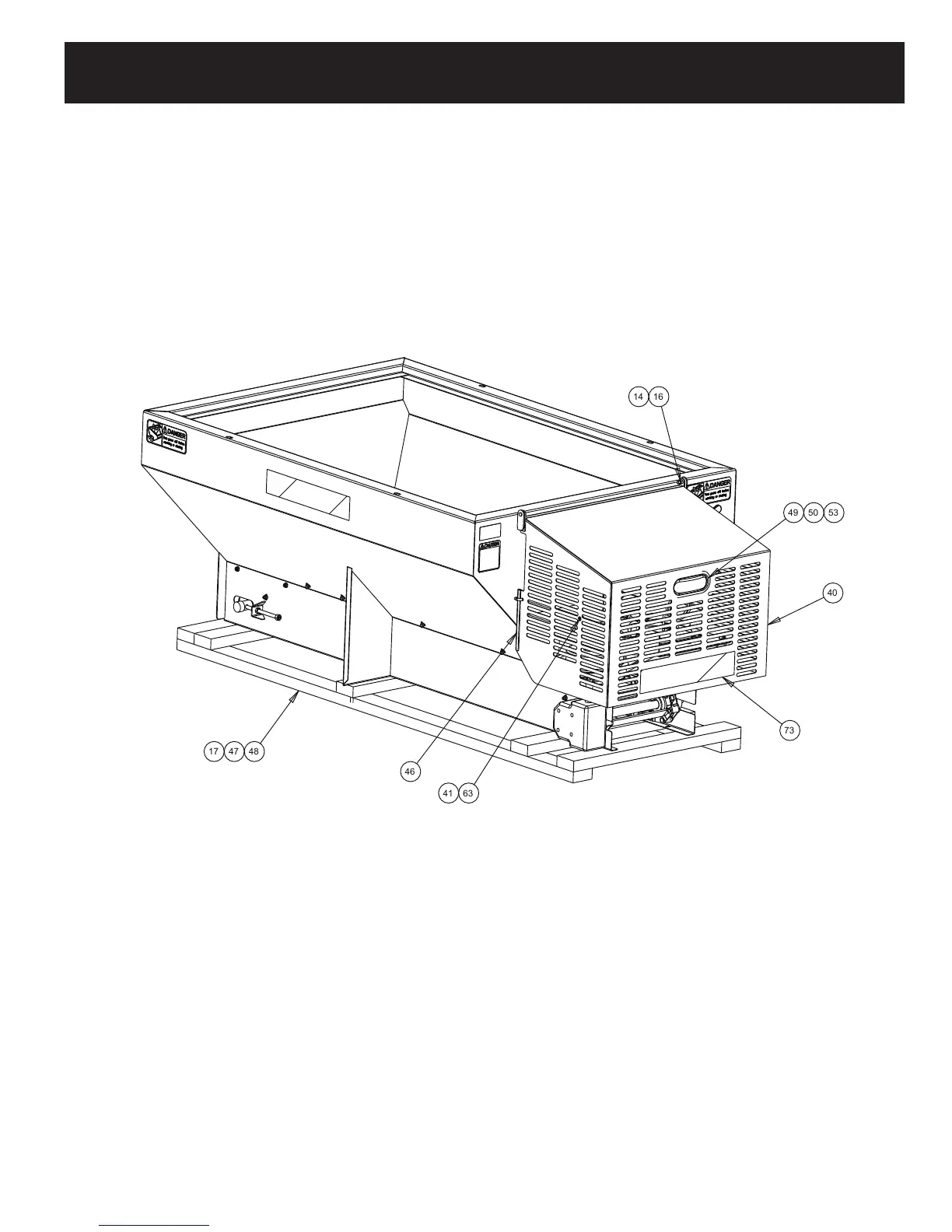

DETAIL, ASSEMBLY
PV356 B&S
SHEET 1 OF 2
SEE TABLE
PV356
S:\00002\
00002-562-00
D0000253300
0.100
JKG 5/19/2010
JKG 5/19/2010
TABD
PART WEIGHT
ITEM PART NUMBER DESCRIPTION QTY
1 00115-156-XX WELD, HOPPER 1
2 04049-045-00 DECAL, CAUTION 1
3 04111-053-00 CAP, IDLER 2
4 04616-126-00 WIRE, BROWN JUMPER 4" 1
5 04638-043-06 CONNECTOR, BUTT 2
6 04003-806-13 NUT, 5/16 SER FLANGE SS 18
7 00123-147-00 PV356 SHIPPING CARTON 1
8 00115-124-00 WELD, TAKEUP BOLT 2
9 04003-802-XX NUT, 1/2" HEX JAM 4
10 00118-337-00 SUB- Y, GEARBOX 1
11 04003-005-XX BOLT, 1/2" X 3/4" HH 4
12 04004-001-XX LOCKWASHER, 1/2" 4
13 00119-590-01 FORM, GUARD, CONVEYOR 1
14 04003-804-XX LOCKNUT, 3/8" VINYL 3
15 04004-002-XX FLATWASHER, 3/8" 4
16 04003-003-XX BOLT, 3/8" X 1 1/4" HH 7
17 04003-806-XX NUT, 3/8" SER FLANGE 8
18 04043-079-00 WELD, DRAG CHAIN 1
19 04003-032-06 BOLT, 5/16 X 3/4 CA 18
20 04067-033-00 BOOT, ALT CABLE 2
21 00122-946-XX FORM, CONVEYOR FLOOR 1
22 04071-020-00 V-BELT, BX-46 1
23 04616-120-00 CABLE, SPREADER CONTROL 1
24 04616-105-00 WIRE, REM. BATT. NEGATIVE 1
25 04003-002-XX BOLT, 5/16 X 3/4 HH 1
26 04622-008-00 COVER, CLUTCH 1
27 00104-822-XX RETAINER, CLUTCH 1
28 04003-001-XX BOLT, 1/4" X 3/4" HH 4
29 04003-806-XX NUT, 1/4" SER FLANGE 5
30 04145-076-00 ENGINE, 190CC B&S QUANTUM 1
31 04031-009-00 KEY, 3/16" X 1" SQ 1
32 04070-024-00 PULLEY, DRIVER 1
33 04616-103-00 WIRE, REM. BATT. POS. 1
34
35 04093-022-00 GROMMET 1
36 04146-005-00 SOLENOID 1
37 04607-027-00 CLAMP, CUSHIONED 1
38 00110-819-XX WELD, FEEDGATE 1
39 04624-001-01 KNOB, HAND 1
40 00119-587-XX WELD, SHROUD 1
41 00112-734-00 ROD, PROP 1
42 04010-016-01 PIN, 1/8" X 1" COTTER SS 1
43 04049-182-00 DECAL, DANGER 3
44 04049-199-00 DECAL, GASOLINE ONLY 1
45 04049-XXX-XX DECAL, SERIAL NUMBER 1
46 04093-021-00 TRIM, VINYL 2
47 04553-008-06 SKID, PV 6' 1
48 04003-033-14 BOLT, 3/8" X 4" CA SS 2
49 04605-155-00 CABLE, LIGHT POWER 1
50 04605-154-00 GROMMET, MTG. 1
51 04540-003-00 OIL, MOTOR .156
52 00118-312-XX FORM, FEEDGATE HANDLE 1
53 04605-153-00 LAMP, STOP 1
54 04003-033-12 BOLT, 3/8" X 3/4" CA SS 1
55 00101-636-XX BAR, PIVOT 1
56 04045-022-00 PIN, CONNECTOR W/ COTTER 2
ITEM PART NUMBER DESCRIPTION QTY
57 04076-100-00 WIPER, CHAIN 1
58 04070-020-00 PULLEY, DRIVEN 1
59 04138-017-00 CLUTCH, ELECTRIC 1
60 00108-771-00 FLATWASHER, CLUTCH RETAINER 1
61 04004-001-XX LOCKWASHER, 5/16" 3
62 04003-081-04 SCREW, 5/16" X 5/8" SH CAP 3
63 04607-028-00 CLAMP, PROP ROD 1
64 04049-357-00 DECAL, ENGINE WARRANTY 1
65 04049-362-00 DECAL, FUEL SHUT OFF 1
66 04150-044-01 ACTUATOR, 12V 1
67 00117-410-00 LINKAGE, HONDA THROTTLE 1
68 04003-069-01 SCREW, 8-32 X 3/4" PR SS 3
69 04004-002-59 FLATWASHER, #8 SS 3
70 04003-804-28 LOCKNUT, 8-32 VINYL SS 3
71 04607-013-00 TIE, NYLON 5
72 00002-296-XX P, SPINNER PV INT. 1
73 04049-XXX-XX DECAL, BRAND 3
74 SEE B/M P, INSTR. MANUAL 1
75 04003-033-XX BOLT, 3/8" X 1 1/4" CA 1
76 04009-001-01 KEY, WOODRUFF 1
77 04111-052-00 COVER, FEEDGATE HANDLE 1
78 04003-002-XX BOLT, 5/16" X 1 1/2" HH 2
79 04607-036-00 HOLDER, NYLON TIE 2
80 04003-001-XX BOLT, 1/4" X 1" HH 1
81 00122-366-00 SHAFT, IDLER 1
82 00122-369-00 ROLLER, POLY 2
83 00122-948-XX ADAPTER, ENGINE 1
84 04003-002-XX BOLT, 5/16" X 2 1/2" HH 1
85 04616-081-00 WIRE, 12 GA. RED .75
86 04616-077-00 WIRE, 12 GA BLACK .75
87 04638-039-18 TERMINAL, 5/16" RING 1
88 04638-039-19 TERMINAL, 1/4" RING 1
89 00122-949-XX FORM, CHAINSHIELD 2
90 04003-032-XX BOLT, 5/16" X 3/4" CA 4
91 04003-806-XX NUT, 5/16" SER FLANGE 7
SEE CHAIN TENSION DETAIL
ON SHEET 2
DETAIL, IDLER ASSEMBLY
SCALE 0.250
DETAIL, FEEDGATE,
HANDLE ASSEMBLY
& DECALS
ITEMS NOT SHOWN:
EA. SIDE
WIPER MUST BE ADJUSTED TO
ADEQUATELY CLEAN CHAIN BARS
7
51
72
74
00123-147-00
04540-003-00
00002-296-XX
INSTR. MANUAL
SEE B/M
8 9
6 19
6 19
82
81
3
13
NOTE:
1. ITEM #7 MUST BE PLACED INTO
PLASTIC BAG AND PACKED INTO
HOPPER FOR SHIPPING.
2. ITEM #72 MUST BE PACKED INTO
HOPPER FOR SHIPPING.
INSTALL ITEM #89 WITH VERTEX OF
BEND POINTING TOWARDS INSIDE
OF HOPPER
73
DECAL TO BE CENTERED ON
BOTH SIDES OF ITEM #1
43
56
18
15 16 17 57
16 17
35
DECAL CENTERED ON
BACK OF HOPPER
30
22
83 90 91
84 91
78 91
31 32
89
6 19
2
1
45
64
55
38
15 42
14 75
15 39 54
14 16 17
43
52 77
11 12
16 17
ZERK IN BEARING
TO AIM FORWARD
& UPWARD
