Meyer PV Series - Page 73

PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
xxxxx-xxx-xx month/day/year
PV SERIES
TM
MATERIAL:
SCALE
TITLE
DRAWING SIZE
D
DRAWING No:
LINDENWOOD ILLINOIS
WHERE USED
CADD FILENAME:
REF. DRAWING
DR BY
APPV BY
DATE
APPVBYDATEPIF#
REV
REVISION
NOTED)
(EXCEPT AS
DO NOT SCALE DRAWING
DATE
*********************
ProE Drawing
This drawing was
created in ProE.
The orginial drawing
should only be
edited in ProE.
*********************
2.000
.500
00123-456-00
Y, SPINNER
PV, ELEC, SU
SHEET 1 OF 2
SEE TABLE
PV
S:\00123\
00123-456-00
0.500
JKG 8/27/2010
JKG 8/27/2010
TABD
PART WEIGHT
ITEM PART NUMBER DESCRIPTION QTY
1 00123-450-XX WELD, SPINNER FRAME 1
2 04049-045-00 DECAL, CAUTION 1
3 04049-044-00 DECAL, DANGER 1
4 04049-416-00 DECAL, CAUTION 1
5 00123-452-XX PLATE, SPINNER MOTOR ADAPTER 1
6 04150-052-00 MOTOR, RIGHT ANGLE GEAR 1
7 00123-533-XX WELD, SPINNER SHAFT 1
8 04622-094-00 DISC, 14" SPINNER 1
9 04004-001-XX LOCKWASHER, 1/4" 4
10 04003-001-XX BOLT, 1/4" X 3/4" HH 2
11 04003-002-XX BOLT, 5/16" X 3/4" HH 4
12 04003-806-XX NUT, 5/16" FLANGE 4
13 04016-004-XX PIN, ROLL 1
14 04003-001-XX BOLT, 1/4" X 1 1/4" HH 3
15 04004-002-XX FLATWASHER, 1/4" 3
16 04003-804-XX LOCKNUT, 1/4" VINYL 3
17 04003-806-XX NUT, 1/4" FLANGE 2
18 00123-453-XX FORM, MOTOR COVER 1
19 04611-059-00 CORDGRIP 1
20 04150-051-01 HARNESS, ELECT MOTOR 1
21 04638-093-00 NUT, WIRE 2
22 04003-001-XX BOLT, 1/4" X 1/2" HH 4
23 04093-021-00 TRIM, VINYL
SEE
B/M
24 04607-007-00 TIE, NYLON CABLE 2

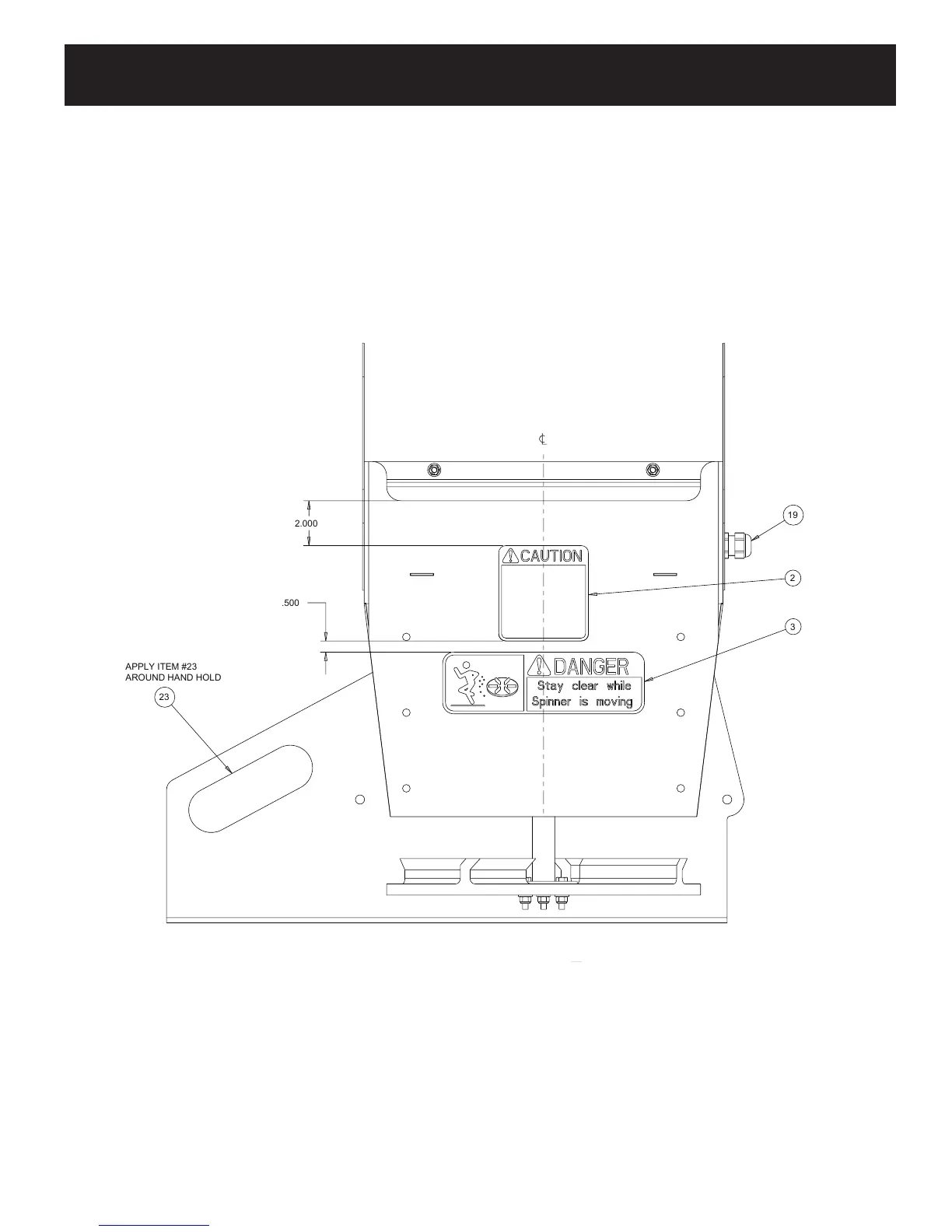

APPLY ITEM #23
AROUND HAND HOLD
2
3
19
23
1
7
9 22
10 17
11 12
14 15 16
18
5
6
13
8
1/4-20 X 1/2" BOLT ONLY (ALL
FOUR HOLES), LONGER BOLT
WILL CAUSE DAMAGE TO SPINNER
MOTOR.
4
ITEM #4 TO BE CENTERED
ON THIS SURFACE.
ELECTRIC PV MODEL
00108-760-01-REV-B
Page 73
OCTOBER, 2013
