Meyer PV Series - Optional Hold-Down Kit Installation

PV SERIES
INSTALLATION AND INSTRUCTIONAL MANUAL
xxxxx-xxx-xx month/day/year
PV SERIES
4
OPTIONAL HOLD-DOWN KIT
Part No. 62562 (00002-306-00)
INSTALLATION INSTRUCTIONS
READ ALL THE INST
ALLA
TION INSTRUCTIONS BEFORE ST
ARTING
Before starting, verify that this mounting is acceptable to the vehicle manufacturer.

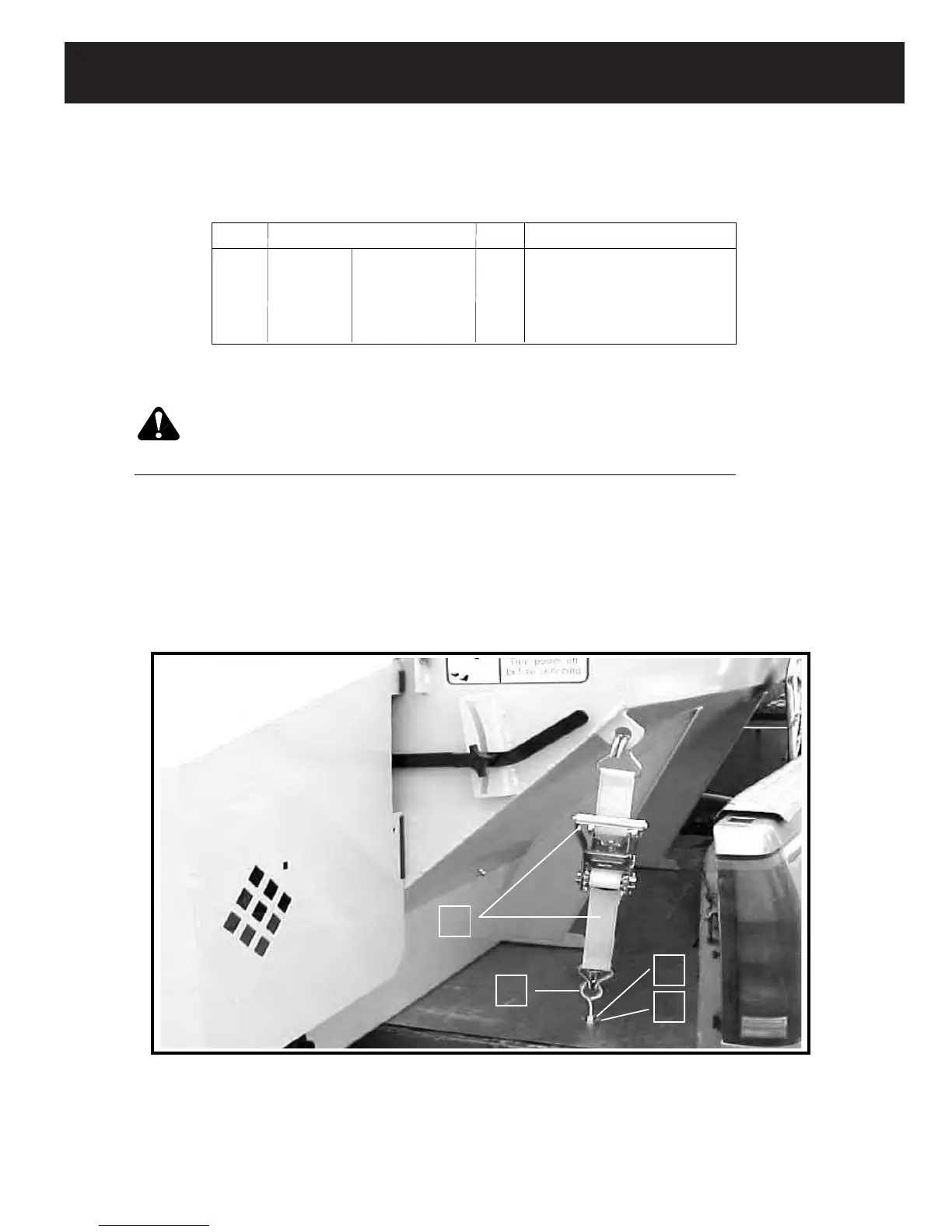

Attach the hold down at each corner of hopper as shown. Locate and drill four .531
(17/32”) diameter holes for eye-bolts in the truck bed (position may vary from that shown). Straps must be
positioned at opposing angles so that spreader cannot slide forward or rearward. Mount eye-bolts as
shown, with locknuts and flatwashers on the bottom side. Assemble ratchet/strap to eye-bolts. Tighten
hold downs evenly. Do not over tighten damage will result to the spreader or the truck.
ITEM PART NUMBER QTY. DESCRIPTION
1 62602 04068-038-00 4 Ratchet/Strap
2 62807 04048-504-02 4 Bolt, 1/2” Eye
3 20307 04003-804-06 4 Locknut, 1/2-13 Esna ZP
4 62604 04003-801-11 4 Nut, 1/2-13 Hex ZP
5 62605 04004-002-16 8 Flatwasher, 3/4"
CAUTION
1
2
4
5
00108-760-01-REV-B
Page 8
OCTOBER, 2013
