SYSTEM SETUP
SYSTEM SETUP CONFIGURATION
The MFJ-9232 Mini Loop Tuner
TM
setup configuration is simple and consists of the following
components:
• RF Generator (Transmitter or transceiver, 5-Watts minimum)
• SWR/Wattmeter
• MFJ-9232 Mini Loop Tuner
TM
• Coaxial cable(s)
• #10 gauge (or larger) stranded wire cut to approximately 75% of a ¼ wavelength at the chosen
resonant frequency

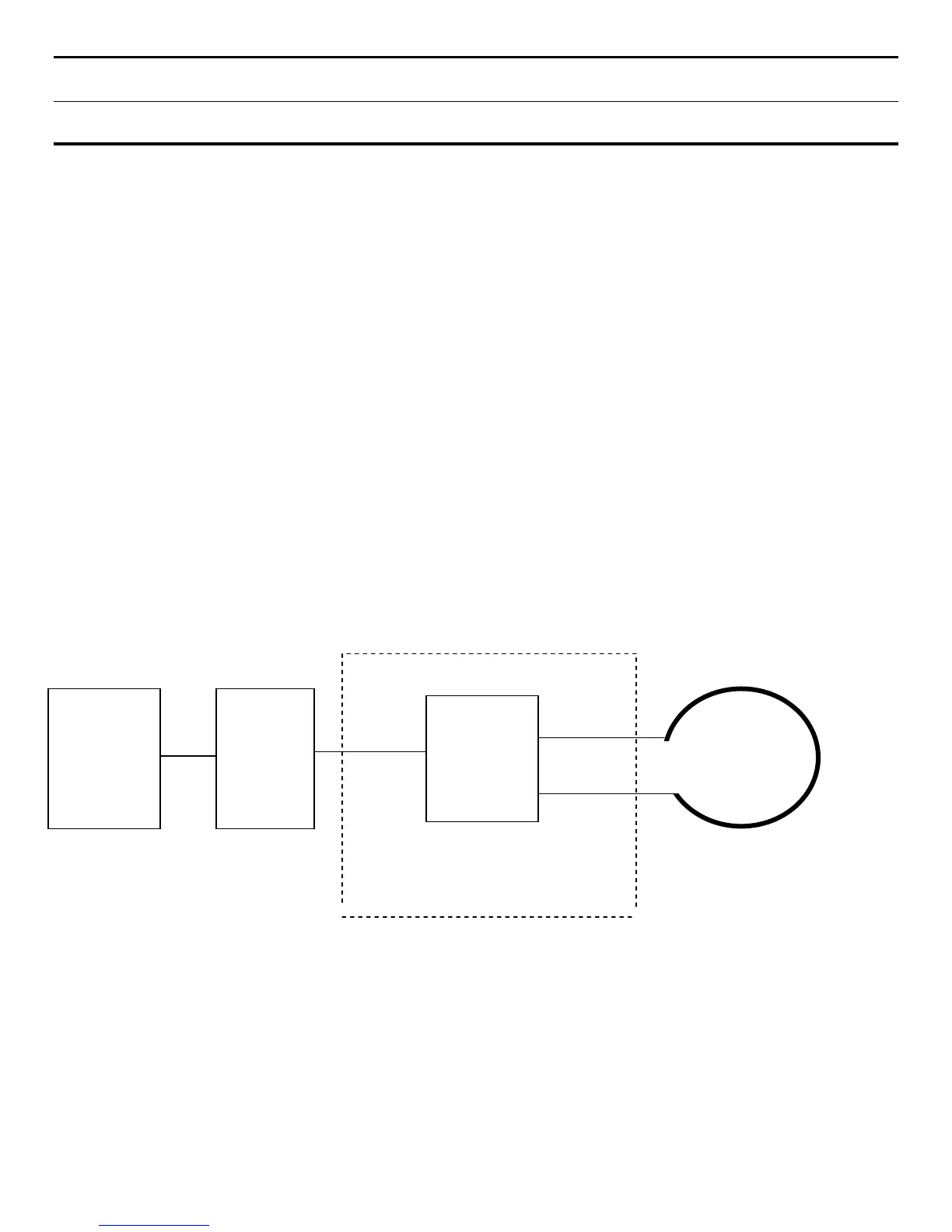

Figure 3 is a block diagram of the typical MFJ-9232 Mini Loop Tuner
TM
setup configuration.
Figure 3: Typical MFJ-9232 Mini Loop Tuner
TM
Configuration
Transmitter/
Transceiver
SWR/
Wattmeter
Matching
Network
Loop
MFJ–9232 Mini Loop
Tuner
