Align the center hole of fan blade assembly with the motor's sha and
install it onto the sha, then install fan blade assembly knob onto the
motor's sha. Turn the knob counterclockwise in order to fix the fan blade
assembly to the motor's sha.
Step 3: Install the rear grille
5
Installation Instructions
Step 2: Open the fan assembly
①
②
Fan Assembly
Front Grille
Fan Blade Assembly
Rear Grille

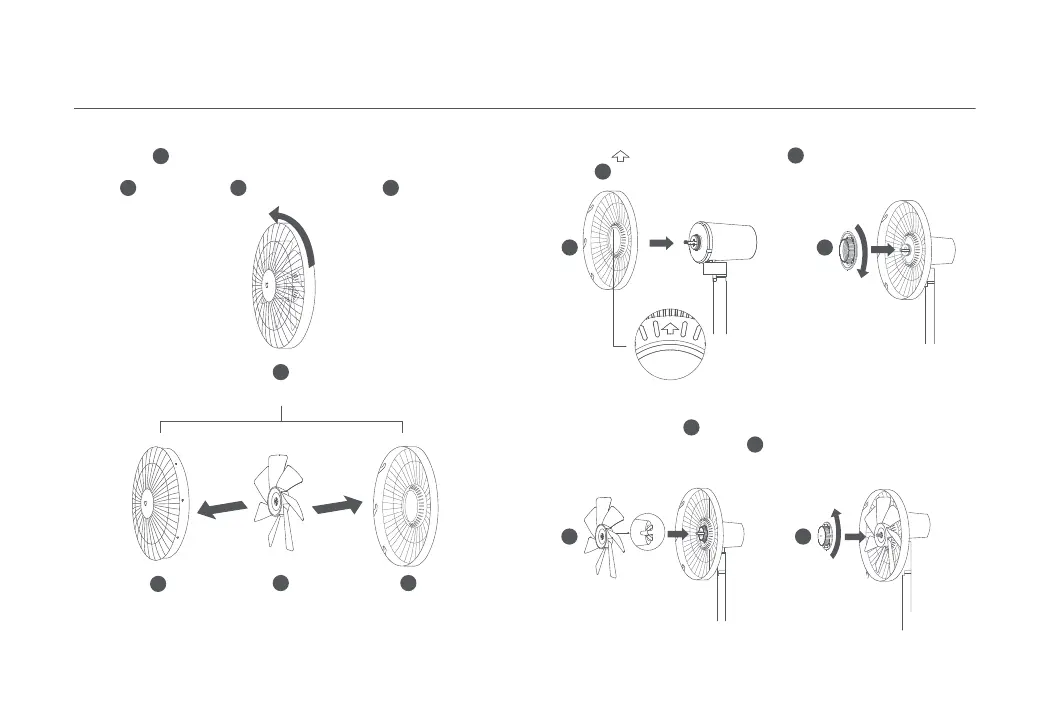

Disassemble fan assembly as shown in the figures below: ①Turn the
front grille counterclockwise until the grilles are properly loosened. ②Then
remove front grille from rear grille and take out fan blade assemby.
Step 4: Install the fan blade assembly
Make sure “ ” points up when installing rear grille onto the motor,
and turn rear grille knob clockwise to tighten the rear grille to the motor.
2
11
12 13
11
1213
2
13
13
6
6
12
12
5
5
