©2014 Micro-Air, Inc. 08/13/2018 Rev 3C

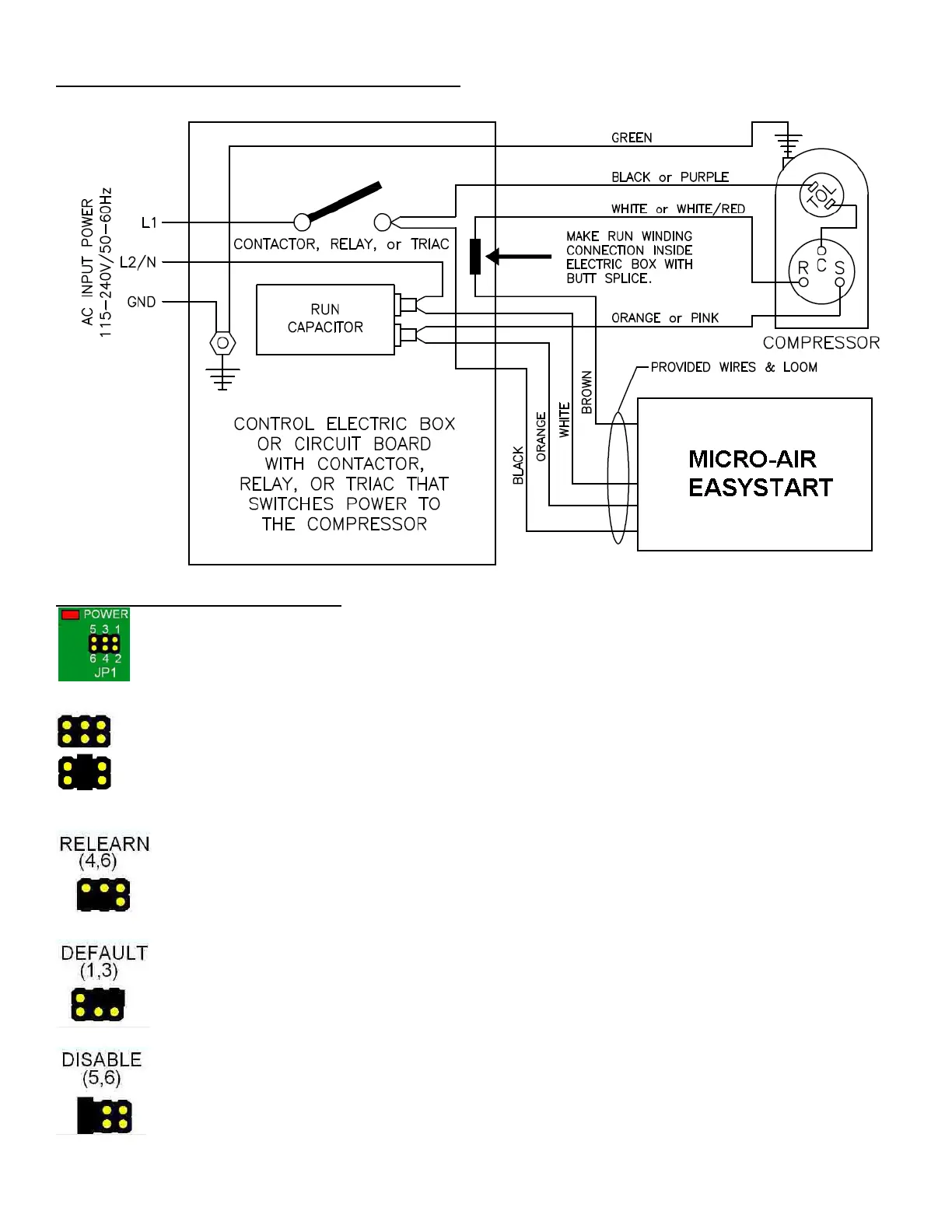

Example EasyStart Installation Wiring Diagram
EasyStart Jumper Configurations:
Jumpers can be placed on JP1 for certain special functions. Do not place jumpers except as shown.
Most operation should be done without a jumper installed on JP1 or with the jumper installed
across pins 3 and 4 as shown.
If a compressor, start capacitor, or run capacitor is replaced, place a jumper on pins 4 and 6
as shown. Cycle power on then off again. Remove the jumper. Cycle the compressor on then
off eleven times (preferably on shore power) to complete the learning process setup.
A compressor may be operated with a factory defined start characteristic. This may not be
the optimal start for the connected compressor and is generally used for factory diagnostics.
No optimization is done with this setting.
This setting disables the microprocessor on the board so no operation can occur.
