ssembly
Due to freight height and space limitations, some assembly may be required with your newly purchased
Micro Rain traveler. Be sure to follow proper procedures when unloading and assembling the machine
to avoid any danger or injury.
ATTENTION!!!
NEITHER MICRO RAIN NOR MICRO RAIN DEALERSARE RESPONSIBLE FOR ANY
INJURY OR MACHINE FAILURE DUE TO CARELESSNESS OR FAILURE TO READ
AND FOLLOW INSTRUCTIONS!!!.
1. Assemble the Gun Cart, (Figure 1).
a. Push the end of the P.E. hose onto the guncart as indicated in (Figure 1). Applying heat to
the end of the P.E. hose will ease this process.
b. Tighten the clamp provided, with the bolts on top.
c. Mount the sprinkler gun onto the gun cart. Use teon tape or a thread compound to
provide a proper seal.
d. Using the hand grip, pick up the gun cart and hook it onto machine, (Figure 2).

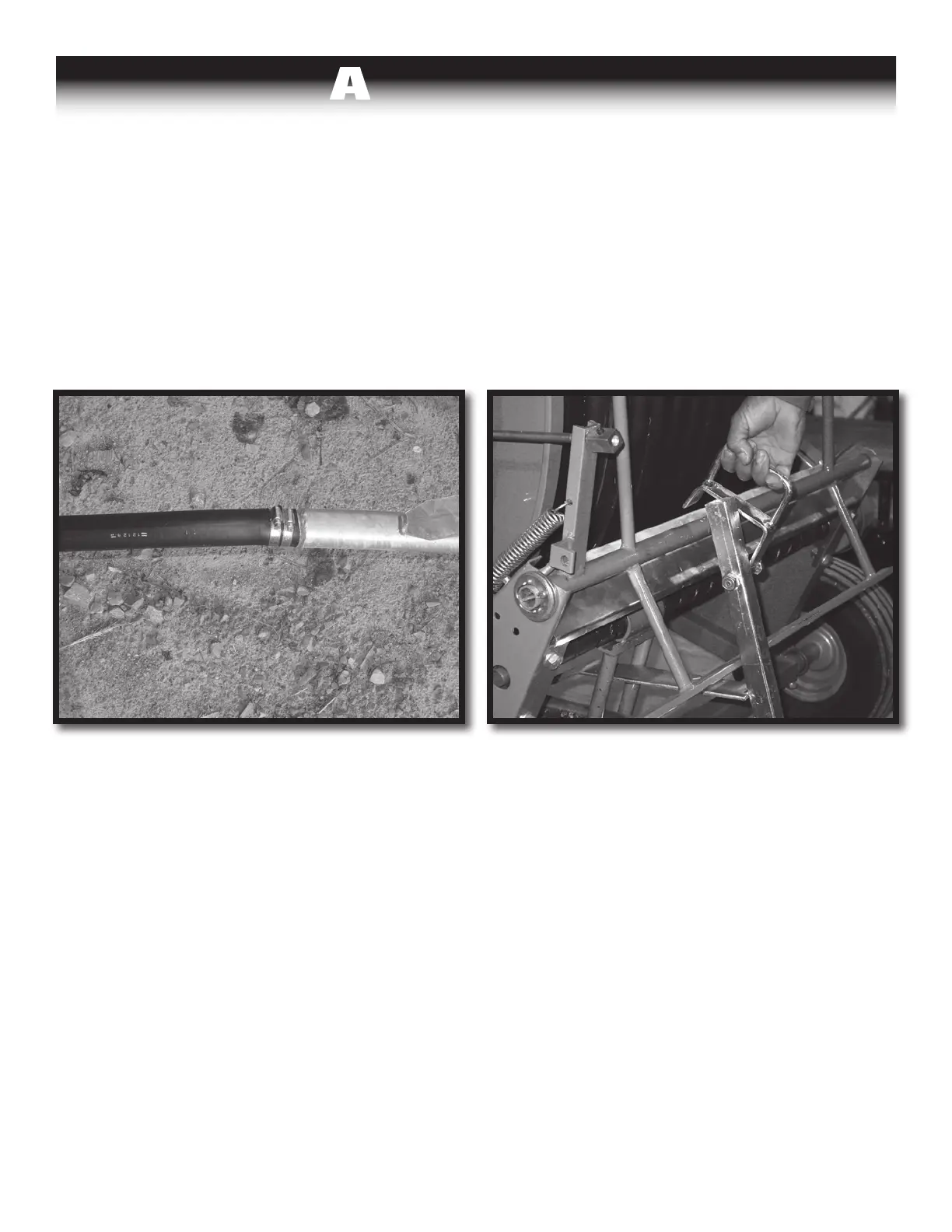

Figure 1 Figure 2
To Next Page
