10
8
”
4
”
After the glue has dried, use a router and flush trim bit to trim the sled top (PARTS B
& C) flush with the sled base (PART A)
*
If your router table fence capacity is less than 8”, you can use an auxiliary fence to
complete this step. Click HERE to learn how.
Remove zero-clearance insert, then
route ¼” wide, 11/32” deep relief
grooves in the sled top, 4” and 8” in
from each edge.
Switch to a 1/2” 14-degree dovetail
router bit set to 3/8” depth, and
route dovetail tracks in the same
location as the relief grooves.

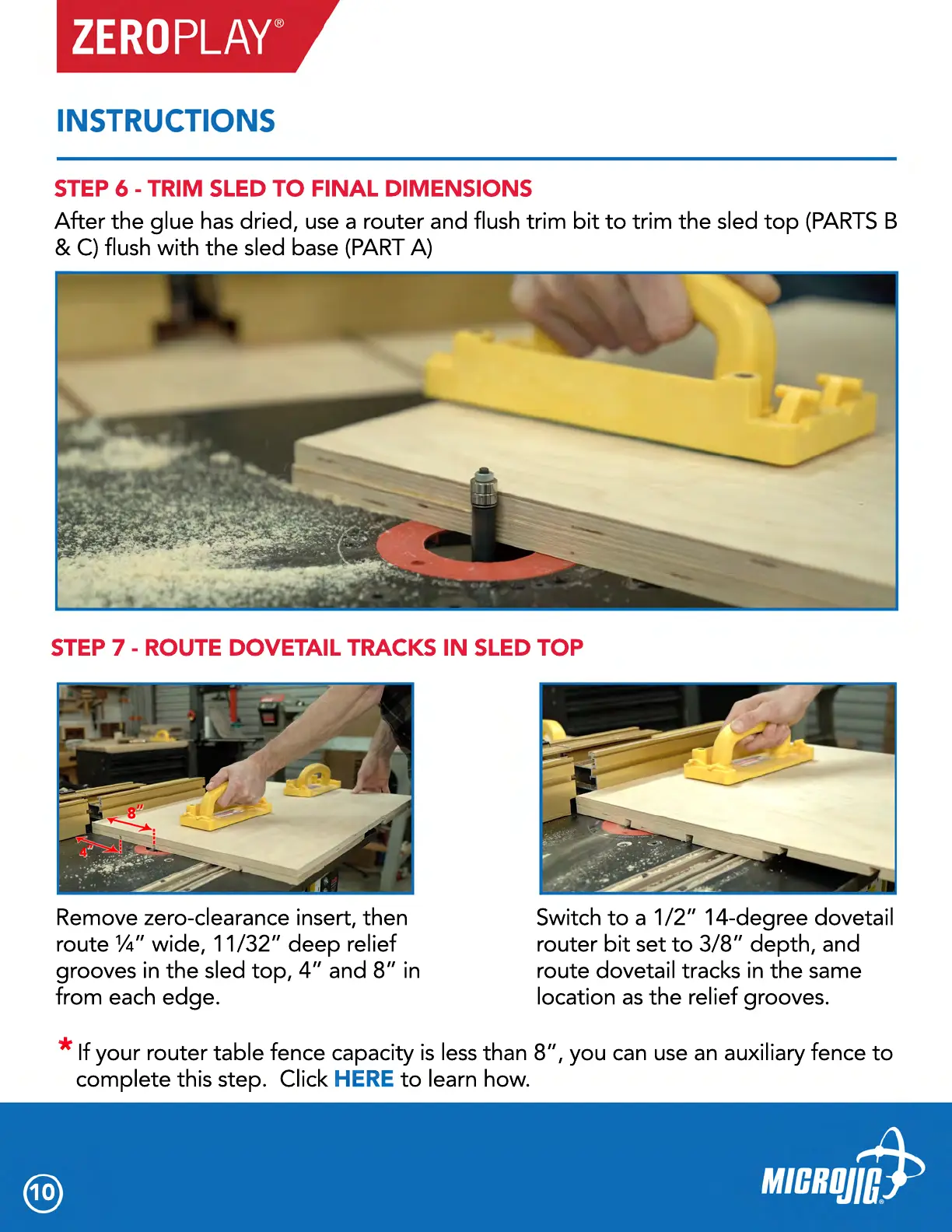

STEP 6 - TRIM SLED TO FINAL DIMENSIONS
STEP 7 - ROUTE DOVETAIL TRACKS IN SLED TOP
