9
3/4”
1
”
FRONT
TOP

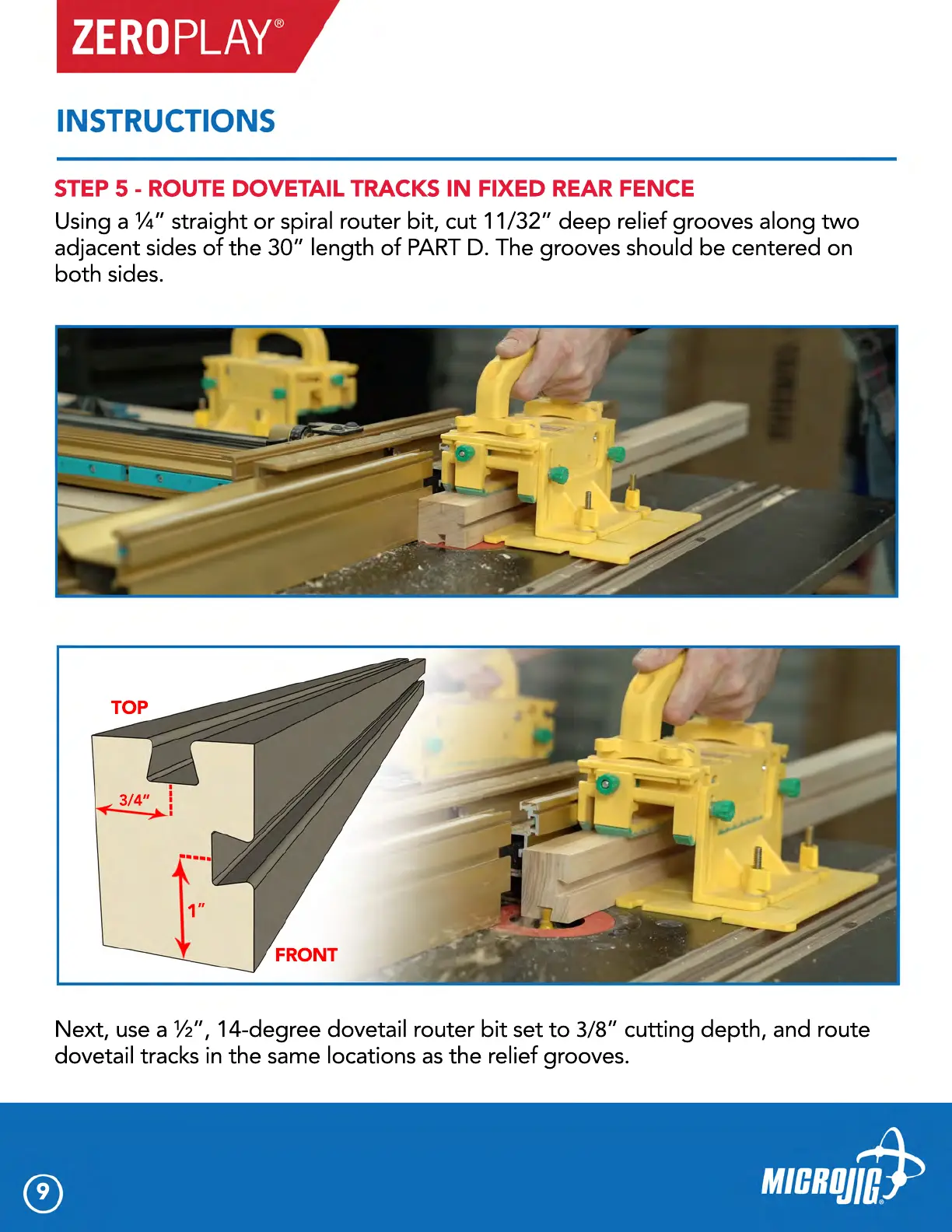

Using a ¼” straight or spiral router bit, cut 11/32” deep relief grooves along two
adjacent sides of the 30” length of PART D. The grooves should be centered on
both sides.
Next, use a ½”, 14-degree dovetail router bit set to 3/8” cutting depth, and route
dovetail tracks in the same locations as the relief grooves.
STEP 5 - ROUTE DOVETAIL TRACKS IN FIXED REAR FENCE
