8

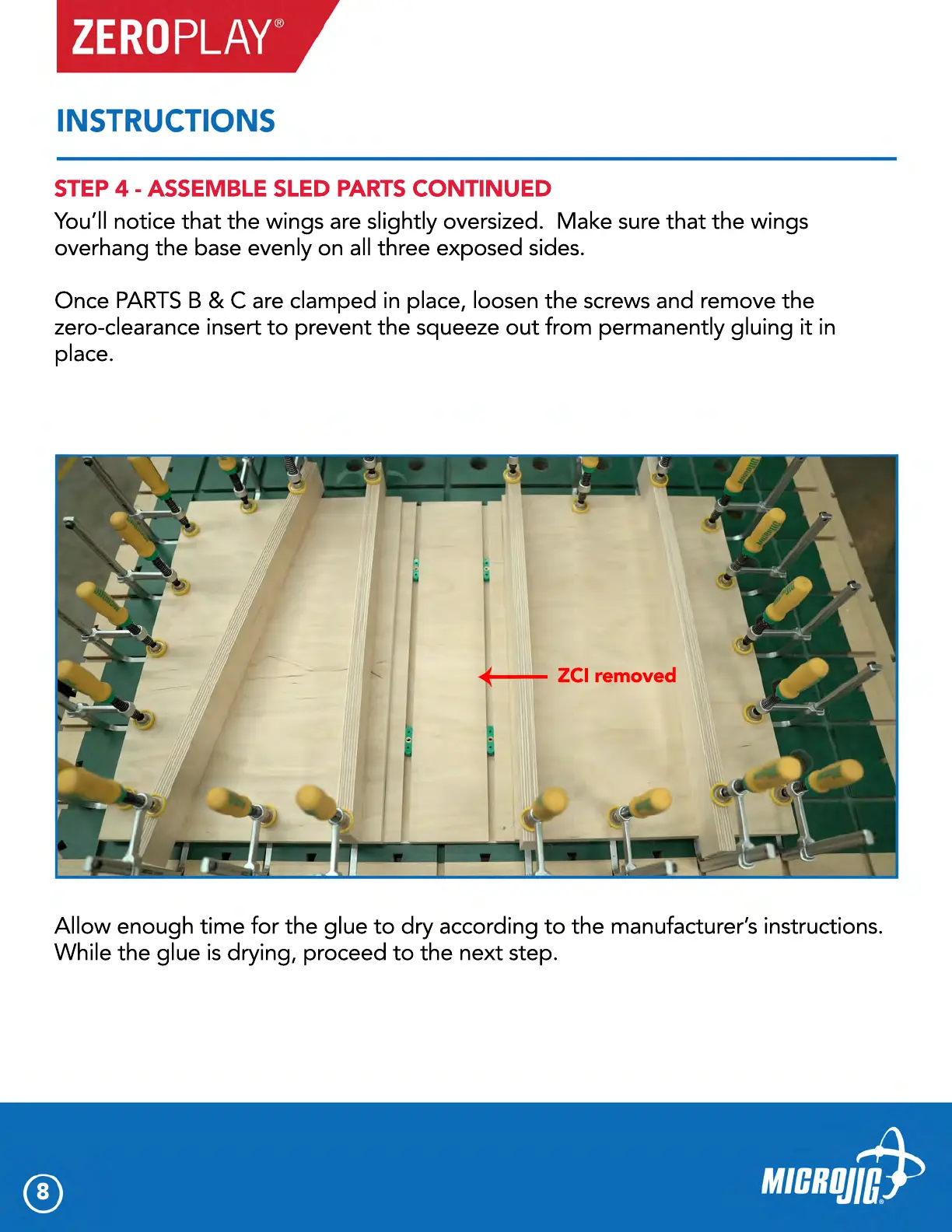

ZCI removed
You’ll notice that the wings are slightly oversized. Make sure that the wings
overhang the base evenly on all three exposed sides.
Once PARTS B & C are clamped in place, loosen the screws and remove the
zero-clearance insert to prevent the squeeze out from permanently gluing it in
place.
Allow enough time for the glue to dry according to the manufacturer’s instructions.
While the glue is drying, proceed to the next step.
STEP 4 - ASSEMBLE SLED PARTS CONTINUED
