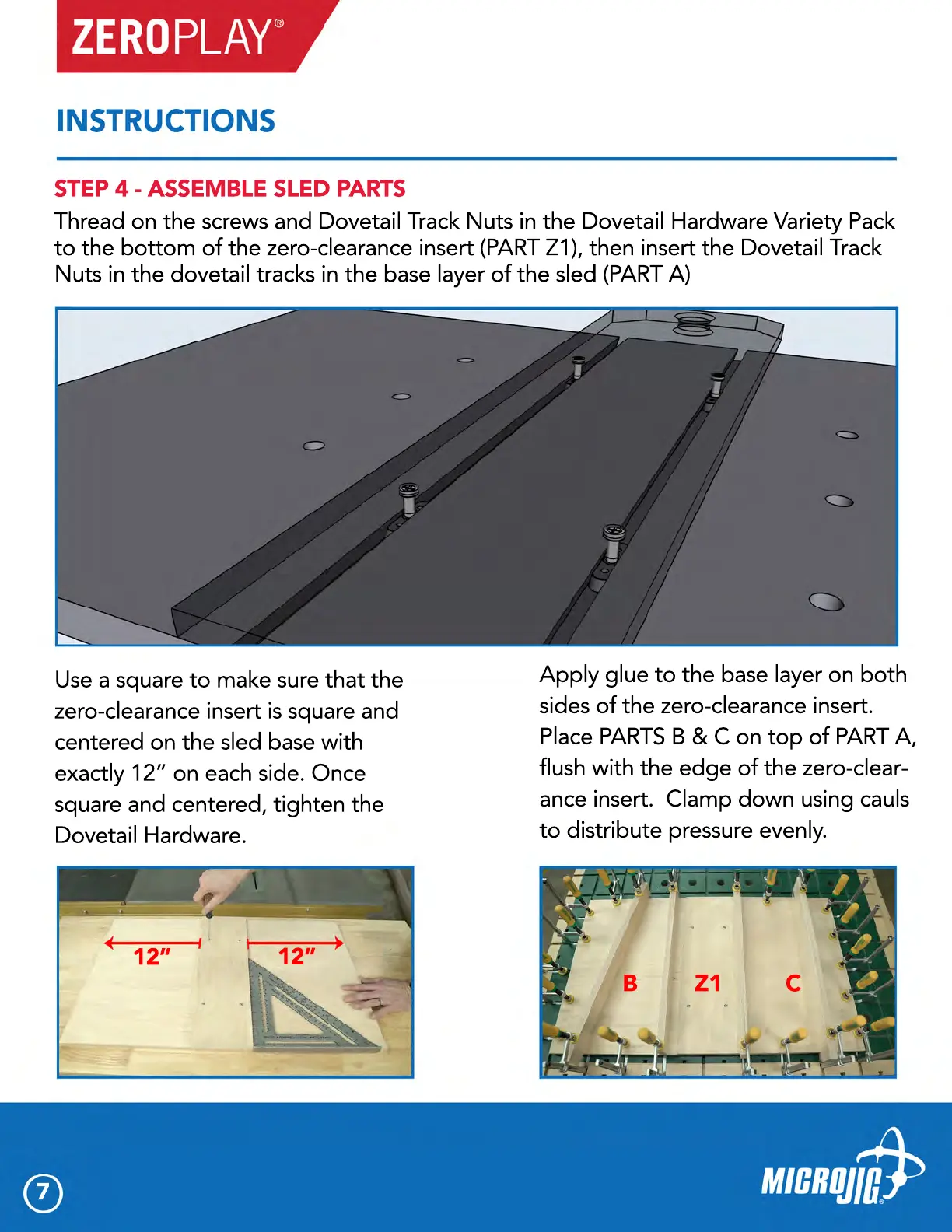

Thread on the screws and Dovetail Track Nuts in the Dovetail Hardware Variety Pack
to the bottom of the zero-clearance insert (PART Z1), then insert the Dovetail Track
Nuts in the dovetail tracks in the base layer of the sled (PART A)
Use a square to make sure that the
zero-clearance insert is square and
centered on the sled base with
exactly 12” on each side. Once
square and centered, tighten the
Dovetail Hardware.
Apply glue to the base layer on both
sides of the zero-clearance insert.
Place PARTS B & C on top of PART A,
flush with the edge of the zero-clear-
ance insert. Clamp down using cauls
to distribute pressure evenly.
STEP 4 - ASSEMBLE SLED PARTS
