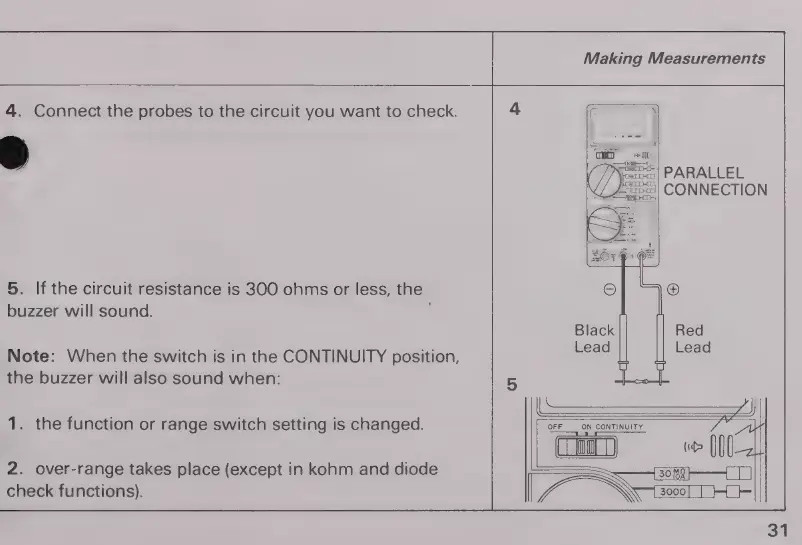

Micronta 22-185A - Page 31

Making Measurements
4. Connect the probes to the circuit you want to check. 4
eS PARALLEL
== CONNECTION
5. If the circuit resistance is 300 ohms or less, the
buzzer will sound. |
Note: When the switch is in the CONTINUITY position,
the buzzer will also sound when: 5
1. the function or range switch setting is changed.
2. over-range takes place (except in kohm and diode
check functions).
31
