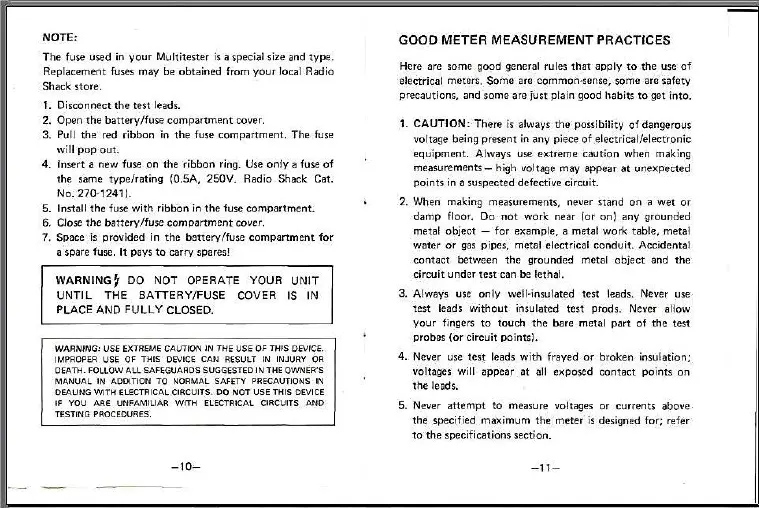

NOTE:
The
fuse used in y
our
Multitester
is
a special size
and
type.
Replacement
fuses
may
be
obtained
from
your
local Radio
Shack store.
1. Oisconnect
the
test
leads.
2.
Open
the
battery/fuse
compartment
cover.
3.
Pull
the
red
ribbon
in
the
fuse
compartment.
The
fuse
will
pop
out.
4.
lnsert
a
new
fuse
on
the
ribbon
ring. Use
onfy
a fuse
of
the
s3me
type/rating
(0.5A, 250V. Radio Shack Cat.
No.
270.1241).
5.
lnstall
the
fuse
with
ribOon in
the
fuse
compartment.
6. Close
the
battery/fus.e compartment caver.
7,
$pace
is provided
in
the
battery/fuse
compartment
fo
r
a '
sp
are fuse.
lt
pays
to
carry spa res!
WARNING
~
00
NOT OPERA TE YOUR
UNIT
UNTIL
THE BATTERY/FUSE COVER IS
IN
PLACE AND
FULL
Y CLOSED.
WARNING:
USf
EXTREME CAUTION IN THE
USE
OF
THIS DéVICE.
IM
PAOPE.R
USE OF THIS
OEVICE
CAN
RESUlT
IN
INJIJRY
OR
OEATH.
fOLLOWALl
SAFEGlJAADS SUGGE$TED IN THE 0VVNER'S
MANUAL
IN
AODITION TO NORMAL SAfETY PRECAUTIONS IN
OEAUNG
WITH
ELECTRICAL CIRCUITS. DO NOT USE THIS DEVI
CE
IF VOU ARE UNFAM1UAR WITH
ELECTR1CAL
CIRCU1TS
AND
TESTING
PROCEDURES.
-10-
GOOD
METER
MEASUREMENT
PRACTICES
Here are sorne
good
general
ru
les
that
apply
to
the
use of
electrical meters.
Some
are common·sense.
some
are
safety
precautions
.
and
sorne
are
just
plain
good
habits
to
get
into.
1. CAUTION:
There
is always
the
possibility
of
dangerous
voltage being present
in
any piece
of
elect
rical/e!ectronic
e
quipment.
Always
use ex.treme
caution
when
making
measurements-
high voltage
may
appear
at
unexpected
points
in a suspected defective circuit.
2.
When making measurements. n
ever
stand
on
a
wet
or
damp
floor.
Do
not
work
near
(or
on)
any
grounded
meta
l
abjec
-t -
for
example.
a
metal
work
table,
metal
water
or
gas pipes. metal electrical
conduit.
Ac
.cidental
contact
between
the
grounded
meta
l
abject
and
the
circuit
und
er
test
can
be
lethal.
3. Always
use
only
weH·insulated
test
leads. Never use
test
leads
without
tnsulated
test
prods.
Never
aHo
w
y
ou
r fingers
to
touch
the
bare
meta
l
pa
rt
of
the
test
probes
{or
circuit
points).
4.
Ncver use
test
leads
with
frayed
or
broken
insulation;
voltages
will
appear
at
ali
exposed
contact
points
on
tneleads.
5.
Never
attemp
t
to
measure voltages
or
currents
above
the
specified
maximum
the
meter
ts designed
fo
_r; refer
to
the
specifications section.
-11-
