call
10k
level
+6
0

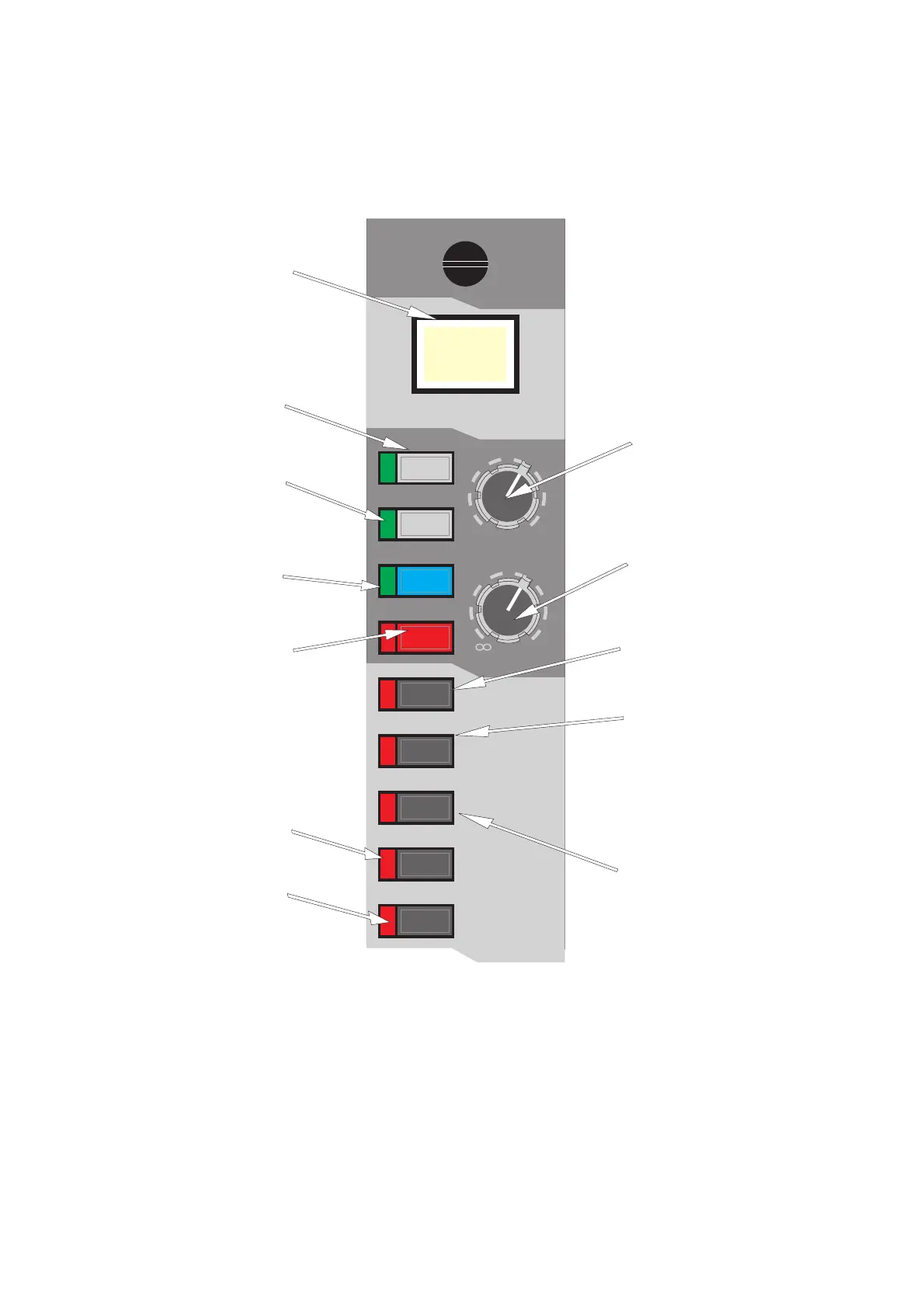

The CALL switch and
indicator has two functions:-
i. It illuminates when an
incoming "clearcom" call is
expected.
ii. It fires a DC pulse when
pressed to signal "clearcom"
devices (by illuminating their
call lamps) that an outgoing
call is to be made.
The OSC switch activates the
oscillator ready for connection
to the oscillator output or the
talk system .
The FREQ control gives
continuous adjustment of the
oscillator frequency from
100Hz to 10K.
The 1KHz switch overrides the
frequency control and sets the
oscillator to 1KHz.
The EXTERNAL ON switch
connects the oscillator signal
to the oscillator external
output socket.
The PINK noise switch
disconnects the oscillator and
replaces it with pink noise.
The oscillator LEVEL control
gives continuous adjustment of
the oscillator and pink noise
levels and has a range from +
6dB to off.
The TALK TO AUXES switch
sends the talk system signals
to ALL the aux busses.
The TALK TO GROUPS
switch sends the talk system
signals to any group buss which
has its GROUP module TALK
switch active.
The TALK TO MATRIX
switch sends the talk system
signals to any matrix buss
which has its MATRIX module
TALK switch active.
The TALK TO MONO switch
sends the talk system signals to
the mono master bus.
The TALK TO LEFT AND
RIGHT switch sends the talk
system signals to the stereo
master bus.
