Midas XL4

MIDAS
XL432
comms
local ls-level
0
+10
mono
-20dB
left
right
left right
mute mute
to
to
both both

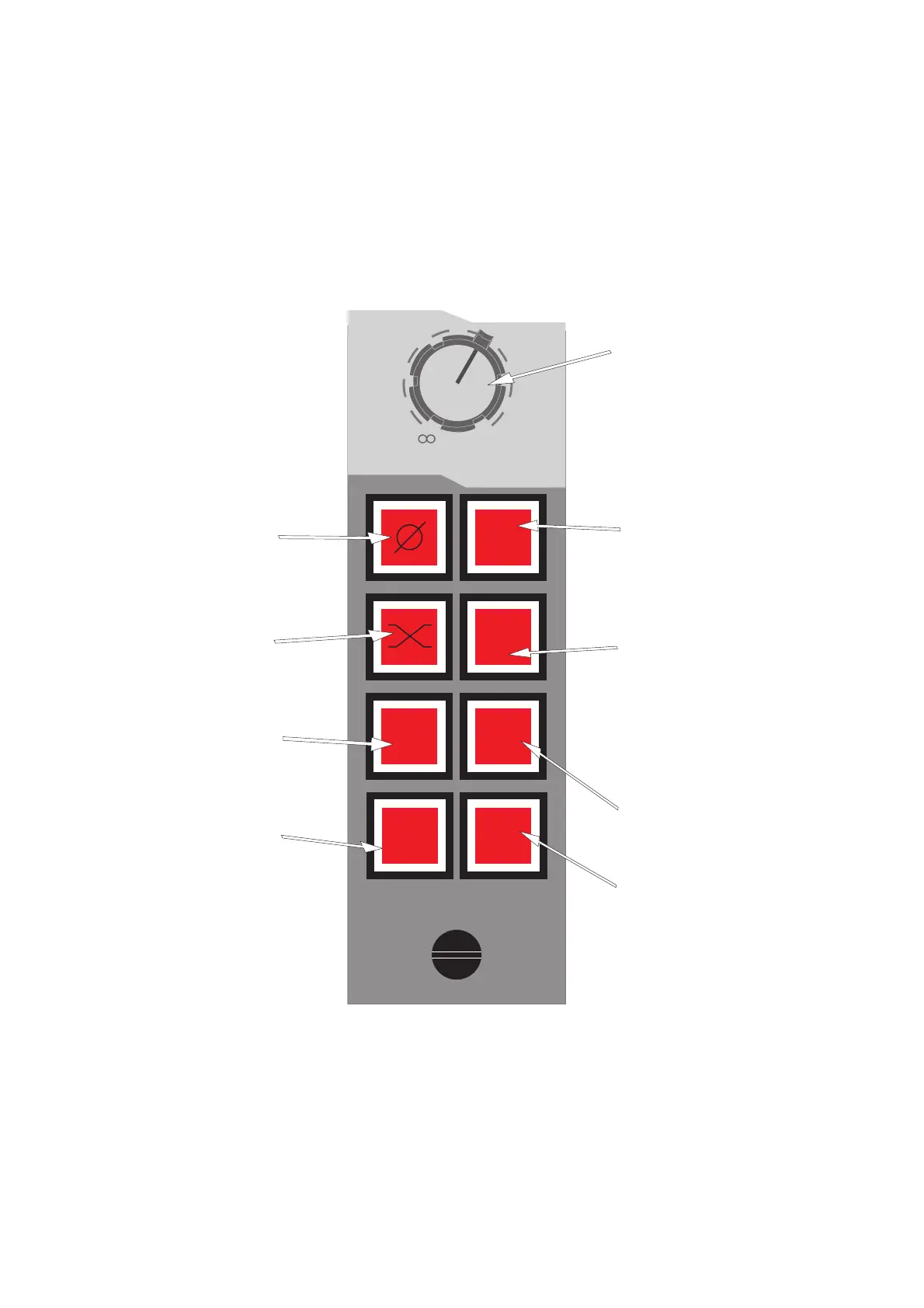

The LOCAL LS LEVEL
control gives continuous
adjustment of signals sent to
the "A" or "B" monitor speaker
outputs and has a range from +
10dB to off.
The PHASE switch reverses
the phase of the left hand
monitor signal.
The MONO switch adds the
left and right monitor signals
with a 4.5dB summing loss.
The left/right CROSSOVER
routes the left hand monitor
signal onto the right channel
output speakers and the right
hand monitor signal onto the
left channel output speakers.
The -20 DIM switch and
indicator has two functions:-
i. It can be used to switch the
monitor speaker outputs to dim
by 20dB.
ii. It illuminates when the talk
system has activated a dim to
prevent howl round.
The LEFT TO BOTH switch
routes left hand monitor signal
to both the left and right
monitor speaker outputs.
The RIGHT TO BOTH switch
routes right hand monitor
signal to both the left and right
The MUTE LEFT switch
controls the mute function on
the left hand side of the local
monitor speaker outputs.
The MUTE RIGHT switch
controls the mute function on
the right hand side of the local
monitor speaker outputs.
37
