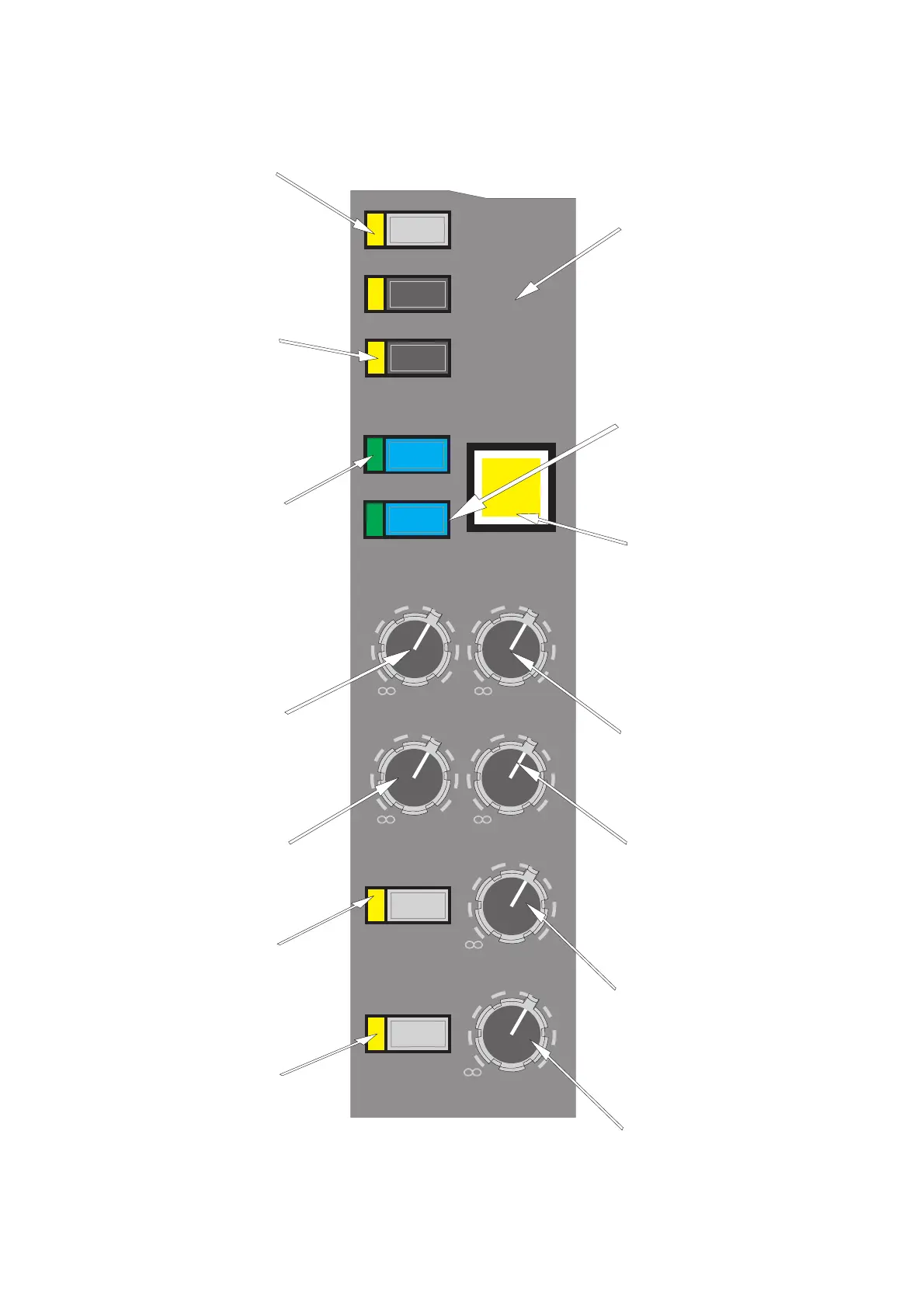

The SOLO ADD MODE
switch allows multiple channel
access to the solo busses.
When the solo add mode is off
the action of pressing a solo
switch will cancel any other
active solo except for the
master solo switches where the
cancelling effect is only
temporary (see XL421 Master
Module).
The GLOBAL METER
CHANGE OVER switch
changes the operation of every
meter on the console except the
comms meters and the record
meters. The "normal" meter
operation is to monitor pre
fader on input channels and
post fader on all other signals.
When the global meter change
over is active the meters change
to monitor input amplifiers or
bus amplifiers (as appropriate)
on all signals.
The 2 TRACK RETURN
CHANGE OVER switch
connects the 2 track input
signals to the monitor system
outputs in place of the master
left and right signals.
The PFL TO MONITOR
switch connects the PFL
signals to the monitor system
outputs in place of the 2 track
return or master left and right
signals when ever a solo is
active within the console. This
switch overrides the SOLO TO
MONITOR switch below.
The SOLO TO MONITOR
switch connects the solo AFL
signals to the monitor system
outputs in place of the 2 track
return or master left and right
signals when ever a solo is
active within the console.
The SOLO ON / CLEAR
switch and indicator has two
functions:-
i. It illuminates when any solo
switch (except a master solo
switch) is active.
ii. When pressed it clears any
active solo switches (except
master solo switches).
The INTERCOM level control
gives continuous adjustment of
the "clearcom" signal levels
that can be fed into the
headphones and PFL speaker
output. It has a range from +
6dB to off.
The EXTERNAL 1 level
control gives continuous
adjustment of incoming signals
from the first external input
and has a range from + 6dB to
off.
The PFL level control gives
continuous adjustment of
incoming signals from the PFL
bus and has a range from +
6dB to off.
The EXTERNAL 2 level
control gives continuous
adjustment of incoming signals
from the second external input
and has a range from + 6dB to
off.
The A/B SPEAKER
CHANGE OVER re-routes the
stereo monitor signals to from
the "A" speaker outputs to the
"B" speaker outputs.
The PFL LS LEVEL control
gives continuous adjustment of
signals sent to the PFL speaker
output and has a range from +
6dB to off.
The headphone SOURCE
CHANGE OVER connects
PFL signals to the headphone
amplifier in place of the
monitor signals.
The headphone LEVEL control
gives continuous adjustment of
signals sent to the headphones
and has a range from + 6dB to
off.
